U-Drill - SMCR/L XCMT (TGTC Elmasa Uygundur)

SMCR/L XCMT (TGTC Elmasa Uygundur)

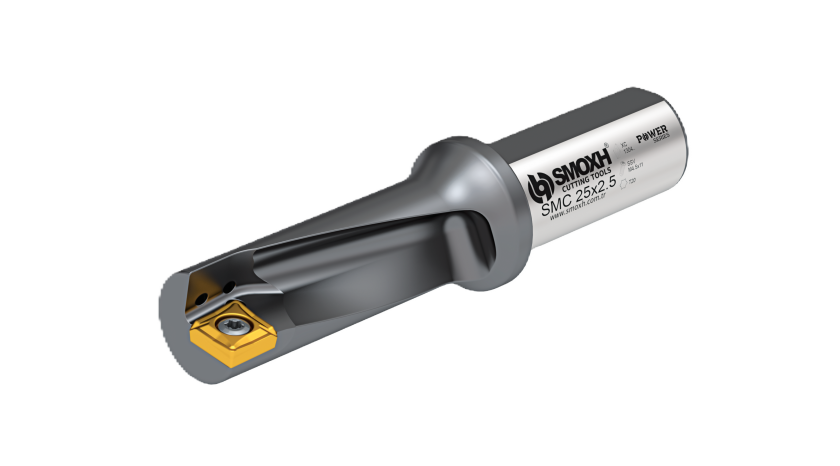

U-Drill

Product Description

What is the POWER Series?

The POWER coating process applied to our variable-tip drilling tools significantly enhances their

performance. This process creates a hard nitride layer on the tool surface, increasing wear resistance

and surface hardness, thereby extending the tool life. The POWER coating is performed at low

processing temperatures, preventing deformation of the tool geometry while minimizing adverse

effects such as friction and heat generated during cutting. As a result, drilling operations become

more efficient, durable, and reliable.

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  SMCR/L XCMT (TGTC Elmasa Uygundur) U-Drill U-Drill Insert
Brand

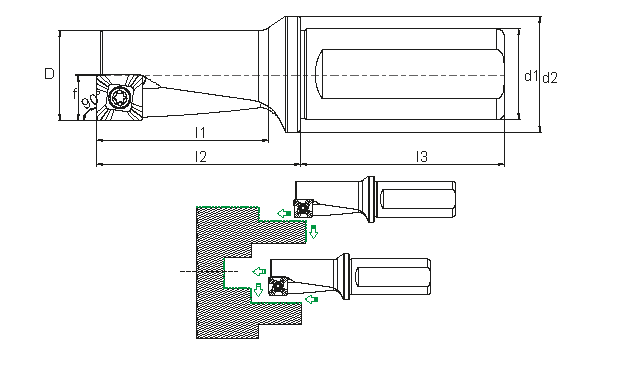

D d1 d2 I1 I2 I3 F U-Drill
SM33313 SMCR 10x2.5 XC05 TGTC 10 12 16 25 32 42 5 XC.. 0502..
SM55025 SMCL 10x2.5 XC05** TGTC 10 12 16 25 32 42 5 XC.. 0502..
SM33337 SMCR 12x2.5 XC06 TGTC 12 16 20 30 40 45 6 XC.. 0602..
SM55032 SMCL 12x2.5 XC06** TGTC 12 16 20 30 40 45 6 XC.. 0602..
SM33344 SMCR 16x2.5 XC08 TGTC 16 20 25 40 53 50 8 XC.. 0803..
SM55049 SMCL 16x2.5 XC08** TGTC 16 20 25 40 53 50 8 XC.. 0803..
SM33399 SMCR 20x2.5 XC10 TGTC 20 25 34 50 66 55 10 XC.. 10T3..
SM55056 SMCL 20x2.5 XC10** TGTC 20 25 34 50 66 55 10 XC.. 10T3..
SM33405 SMCR 25x2.5 XC13 TGTC 25 25 34 62.5 80 55 12.5 XC.. 1304..
SM55063 SMCL 25x2.5 XC13** TGTC 25 25 34 62.5 80 55 12.5 XC.. 1304..
SM33757 SMCR 32x2.5 XC17 TGTC 32 32 44 80 95 60 16 XC.. 1705..
SM55070 SMCL 32x2.5 XC17** TGTC 32 32 44 80 95 60 16 XC.. 1705..
