S Sistem Dış Çap Torna Takımı

Sipariş Kodu	Ürün Tanımı	Ölçüler								Master Insert	Barkod

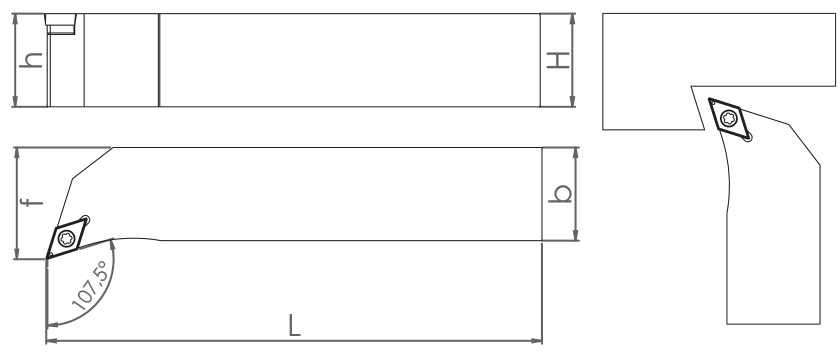

	SDHCR/L (107.5)	Elmas Markası	Yanaşma Açısı	Yön	h=H	b	L	f	Ağırlık (Kg)
SM02708	SDHCR 0808 E07	ISO	107.5°	R	8	8	70	10	0.11	DCM.0702..	8681408002708
SM02715	SDHCL 0808 E07	ISO	107.5°	L	8	8	70	10	0.11	DCM.0702..	8681408002715
SM02654	SDHCR 1010 E07	ISO	107.5°	R	10	10	70	12	0.11	DCM.0702..	8681408002654
SM02661	SDHCL 1010 E07	ISO	107.5°	L	10	10	70	12	0.11	DCM.0702..	8681408002661
SM02722	SDHCR 1212 F07	ISO	107.5°	R	12	12	80	15	0.11	DCM.0702..	8681408002722
SM02739	SDHCL 1212 F07	ISO	107.5°	L	12	12	80	15	0.11	DCM.0702..	8681408002739
SM02746	SDHCR 1616 H07	ISO	107.5°	R	16	16	100	20	0.22	DCM.0702..	8681408002746
SM02753	SDHCL 1616 H07	ISO	107.5°	L	16	16	100	20	0.22	DCM.0702..	8681408002753
SM02906	SDHCR 1616 H11	ISO	107.5°	R	16	16	100	20	0.22	DCM.11T3..	8681408002906
SM02913	SDHCL 1616 H11	ISO	107.5°	L	16	16	100	20	0.22	DCM.11T3..	8681408002913
SM02814	SDHCR 2020 K11	ISO	107.5°	R	20	20	125	25	0.42	DCM.11T3..	8681408002814
SM02876	SDHCL 2020 K11	ISO	107.5°	L	20	20	125	25	0.42	DCM.11T3..	8681408002876

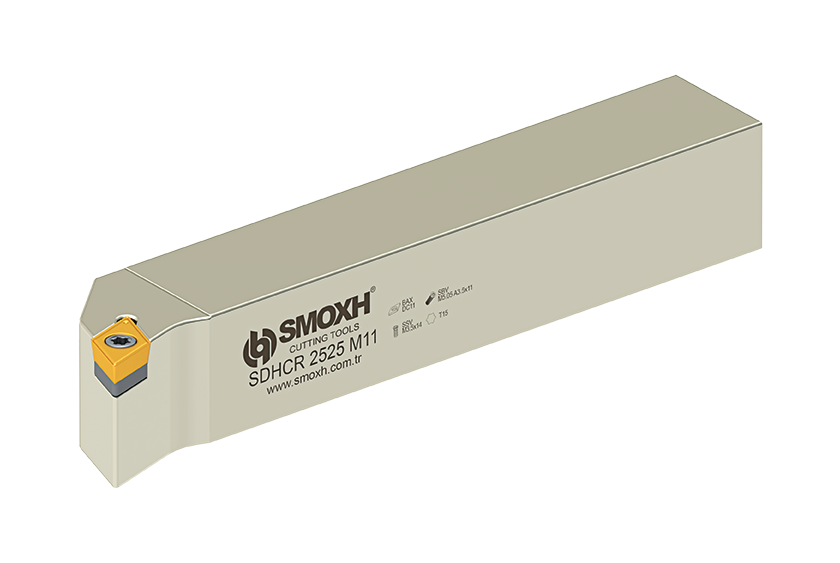

SM02920	SDHCR 2525 M11	ISO	107.5°	R	25	25	150	29	0.71	DCM.11T3..	8681408002920
SM02937	SDHCL 2525 M11	ISO	107.5°	L	25	25	150	29	0.71	DCM.11T3..	8681408002937
SM02944	SDHCR 3232 P11	ISO	107.5°	R	32	32	170	38	1.33	DCM.11T3..	8681408002944
SM02951	SDHCL 3232 P11	ISO	107.5°	L	32	32	170	38	1.33	DCM.11T3..	8681408002951

S Sistem Dış Çap Torna Takımı - SDHCR/L (107.5)
