P System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

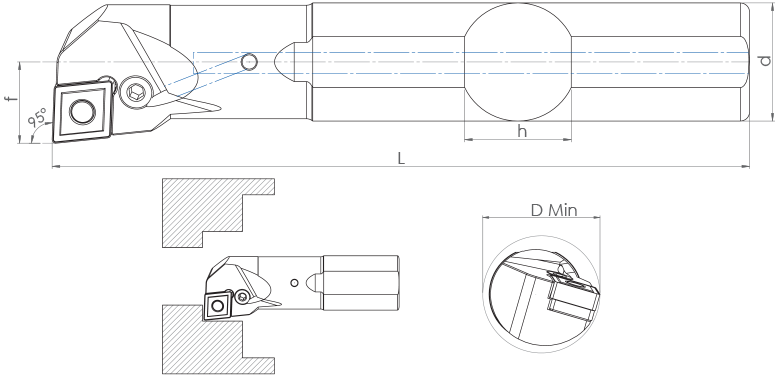

	A-PCLNR/L (95)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM40403	A25R PCLNR-12	ISO	25	23	200	17	≥32	Sağ	95°	0.95	CNM.1204..	8681408040403
SM40410	A25R PCLNL-12	ISO	25	23	200	17	≥32	Sol	95°	0.95	CNM.1204..	8681408040410

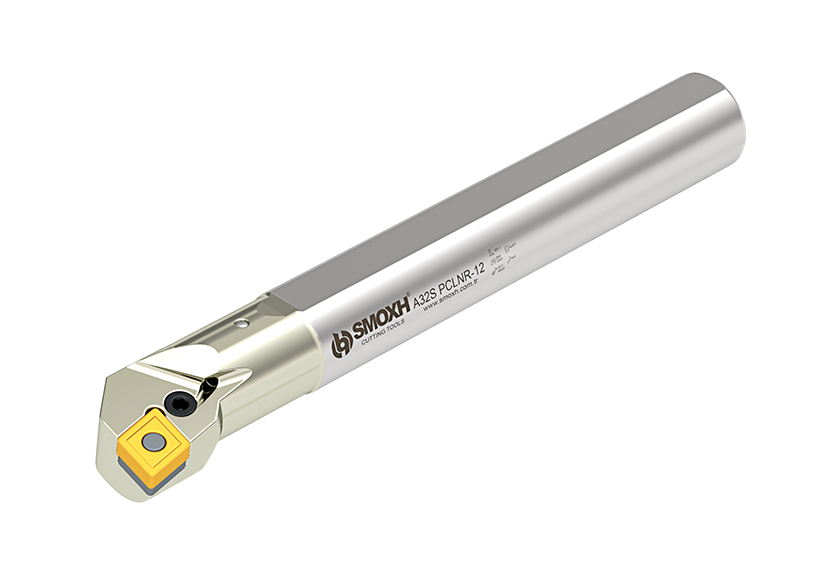

SM40304	A32S PCLNR-12	ISO	32	30	250	22	≥40	Sağ	95°	1.82	CNM.1204..	8681408040304
SM40311	A32S PCLNL-12	ISO	32	30	250	22	≥40	Sol	95°	1.82	CNM.1204..	8681408040311
SM49352	A32S PCLNR-16	ISO	32	30	250	22	≥40	Sağ	95°	1.82	CNM.1606..	8681408049352
SM49369	A32S PCLNL-16	ISO	32	30	250	22	≥40	Sol	95°	1.82	CNM.1606..	8681408049369

P System Internal Diameter Turning Tools - A-PCLNR/L (95)
