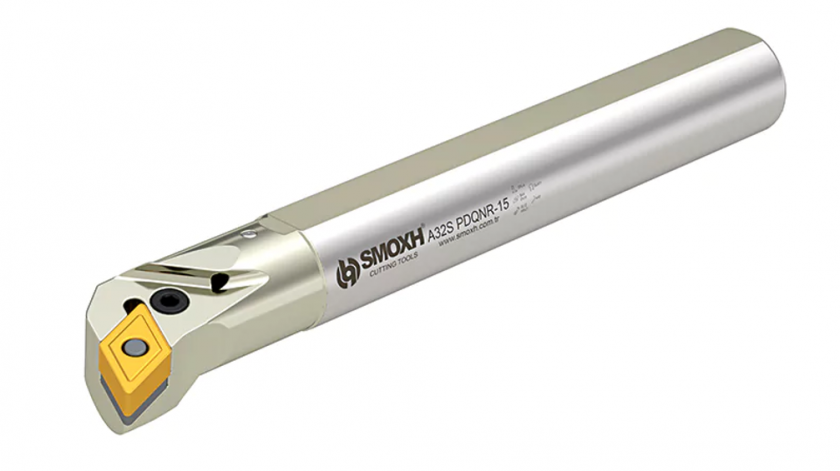

P System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

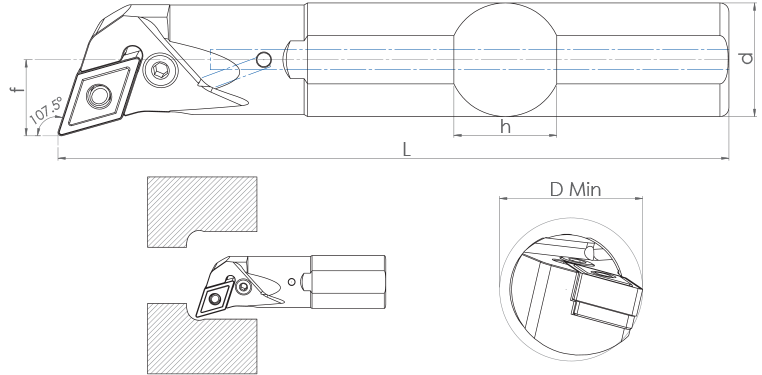

	A-PDQNR/L (107.5)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM40366	A25R PDQNR-15	ISO	25	23	200	17	≥32	Sağ	107.5°	0.95	DNM.1506..	8681408040366
SM40373	A25R PDQNL-15	ISO	25	23	200	17	≥32	Sol	107.5°	0.95	DNM.1506..	8681408040373
SM40359	A32S PDQNR-15	ISO	32	30	250	22	≥40	Sağ	107.5°	1.82	DNM.1506..	8681408040359
SM40342	A32S PDQNL-15	ISO	32	30	250	22	≥40	Sol	107.5°	1.82	DNM.1506..	8681408040342

P System Internal Diameter Turning Tools - A-PDQNR/L (107.5)
