P System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

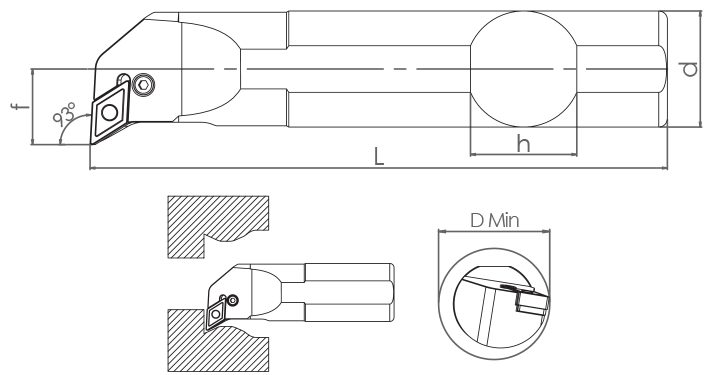

	PDUNR/L (93)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)

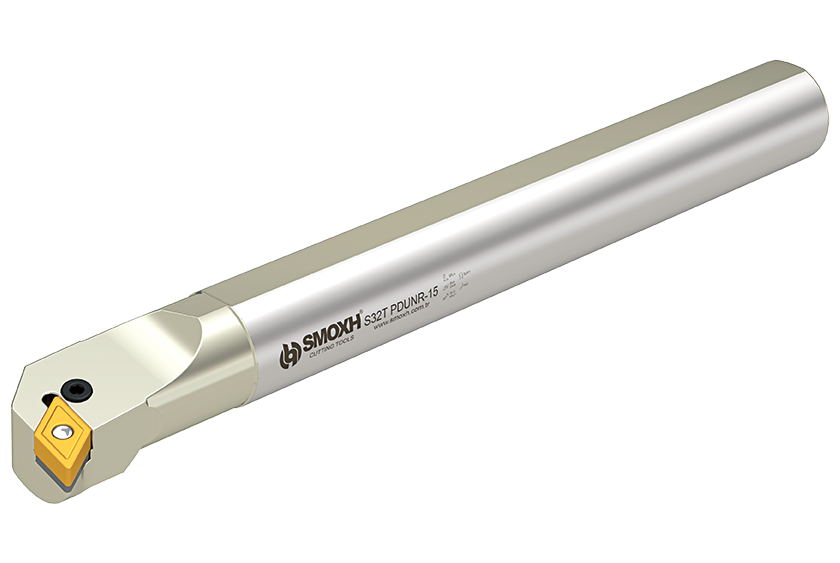

SM06072	S32T PDUNR-15	ISO	32	30	300	22	≥40	Sağ	93°	1.82	DNM.1506..	8681408006072
SM06089	S32T PDUNL-15	ISO	32	30	300	22	≥40	Sol	93°	1.82	DNM.1506..	8681408006089
SM06119	S40U PDUNR-15	ISO	40	37	350	27	≥50	Sağ	93°	3.36	DNM.1506..	8681408006119
SM06126	S40U PDUNL-15	ISO	40	37	350	27	≥50	Sol	93°	3.36	DNM.1506..	8681408006126
SM37663	S50V PDUNR-15	ISO	50	47	400	35	≥63	Sağ	93°	5.5	DNM.1506..	8681408037663
SM37670	S50V PDUNL-15	ISO	50	47	400	35	≥63	Sol	93°	5.5	DNM.1506..	8681408037670

P System Internal Diameter Turning Tools - PDUNR/L (93)
