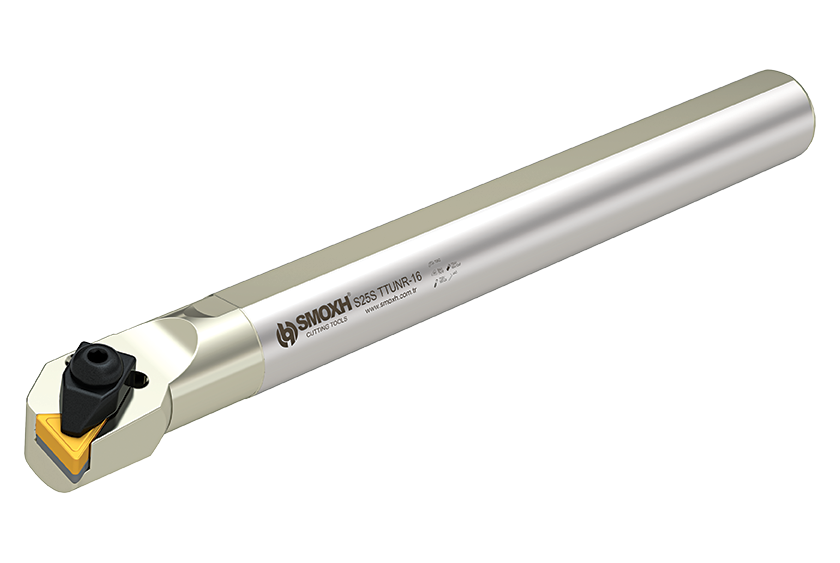

T System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

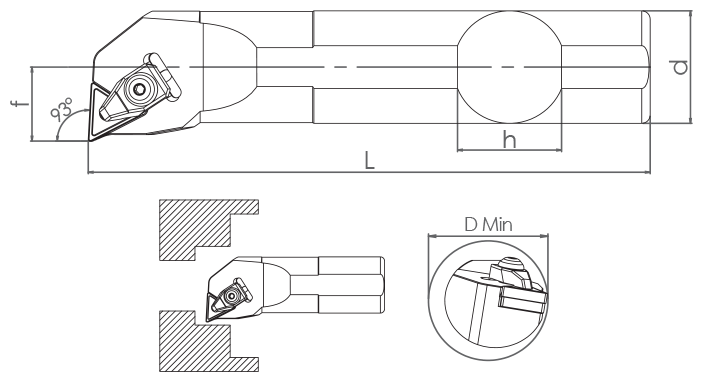

	TTUNR/L (93)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM05280	S25S TTUNR-16	ISO	25	23	250	19.5	≥34	Sağ	93°	0.95	TNM.1604..	8681408005280
SM05297	S25S TTUNL-16	ISO	25	23	250	19.5	≥34	Sol	93°	0.95	TNM.1604..	8681408005297
SM05327	S32T TTUNR-16	ISO	32	30	300	24	≥40	Sağ	93°	1.77	TNM.1604..	8681408005327
SM05334	S32T TTUNL-16	ISO	32	30	300	24	≥40	Sol	93°	1.77	TNM.1604..	8681408005334
SM05365	S32T TTUNR-22	ISO	32	30	300	24	≥40	Sağ	93°	1.77	TNM.2204..	8681408005365
SM05372	S32T TTUNL-22	ISO	32	30	300	24	≥40	Sol	93°	1.77	TNM.2204..	8681408005372
SM05389	S40U TTUNR-22	ISO	40	37	350	30	≥50	Sağ	93°	3.4	TNM.2204..	8681408005389
SM05396	S40U TTUNL-22	ISO	40	37	350	30	≥50	Sol	93°	3.4	TNM.2204..	8681408005396
SM05402	S50V TTUNR-22	ISO	50	47	400	38	≥63	Sağ	93°	5.9	TNM.2204..	8681408005402
SM05419	S50V TTUNL-22	ISO	50	47	400	38	≥63	Sol	93°	5.9	TNM.2204..	8681408005419

T System Internal Diameter Turning Tools - TTUNR/L (93)
