T System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

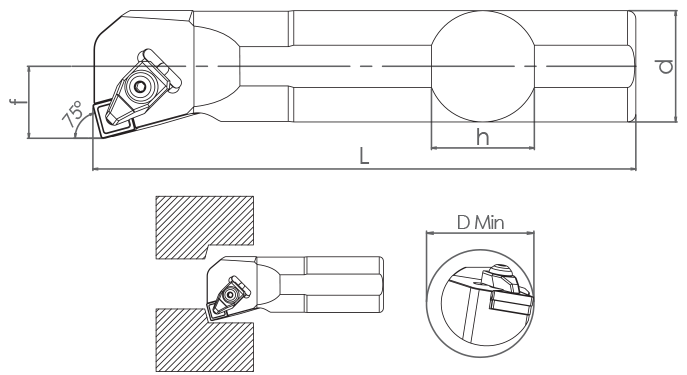

	TSKNR/L (75)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)

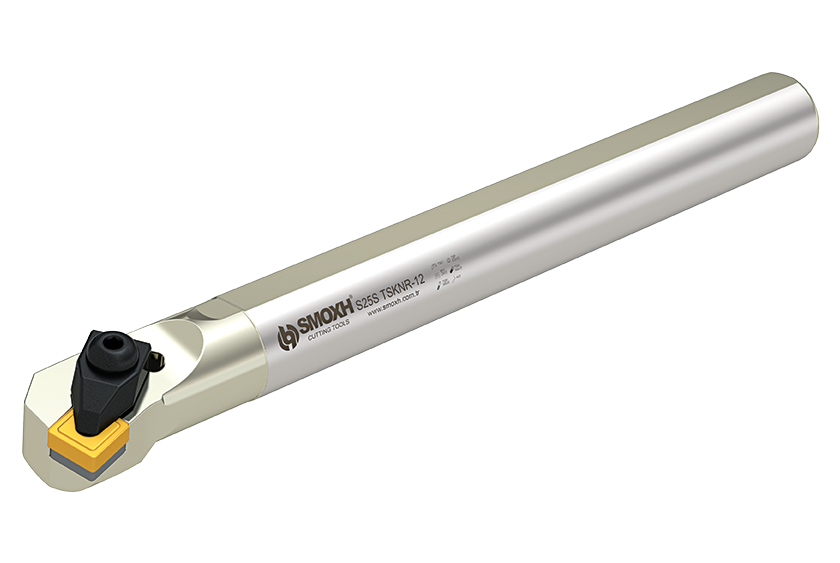

SM05204	S25S TSKNR-12	ISO	25	23	250	19.5	≥36	Sağ	75°	0.95	SNM.1204..	8681408005204
SM05235	S25S TSKNL-12	ISO	25	23	250	19.5	≥36	Sol	75°	0.95	SNM.1204..	8681408005235
SM05211	S32T TSKNR-12	ISO	32	30	300	24	≥40	Sağ	75°	1.77	SNM.1204..	8681408005211
SM05242	S32T TSKNL-12	ISO	32	30	300	24	≥40	Sol	75°	1.77	SNM.1204..	8681408005242
SM05228	S40U TSKNR-12	ISO	40	37	350	30	≥50	Sağ	75°	3.4	SNM.1204..	8681408005228
SM05259	S40U TSKNL-12	ISO	40	37	350	30	≥50	Sol	75°	3.4	SNM.1204..	8681408005259
SM05266	S50V TSKNR-12	ISO	50	47	400	38	≥63	Sağ	75°	5.9	SNM.1204..	8681408005266
SM05273	S50V TSKNL-12	ISO	50	47	400	38	≥63	Sol	75°	5.9	SNM.1204..	8681408005273
SM37601	S32T TSKNR-15	ISO	32	30	300	24	≥44	Sağ	75°	1.77	SNM.1506	8681408037601
SM37618	S32T TSKNL-15	ISO	32	30	300	24	≥44	Sol	75°	1.77	SNM.1506	8681408037618
SM37625	S40U TSKNR-15	ISO	40	37	350	30	≥50	Sağ	75°	3.4	SNM.1506	8681408037625
SM37632	S40U TSKNL-15	ISO	40	37	350	30	≥50	Sol	75°	3.4	SNM.1506	8681408037632
SM37649	S50V TSKNR-15	ISO	50	47	400	38	≥63	Sağ	75°	5.9	SNM.1506	8681408037649
SM37656	S50V TSKNL-15	ISO	50	47	400	38	≥63	Sol	75°	5.9	SNM.1506	8681408037656

T System Internal Diameter Turning Tools - TSKNR/L (75)
