    T System Internal Diameter Turning Tools - TCLNR/L (95)

    TCLNR/L (95)

    T System Internal Diameter Turning Tools

    T System Internal Diameter Turning Tools

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      TCLNR/L (95) Diamond

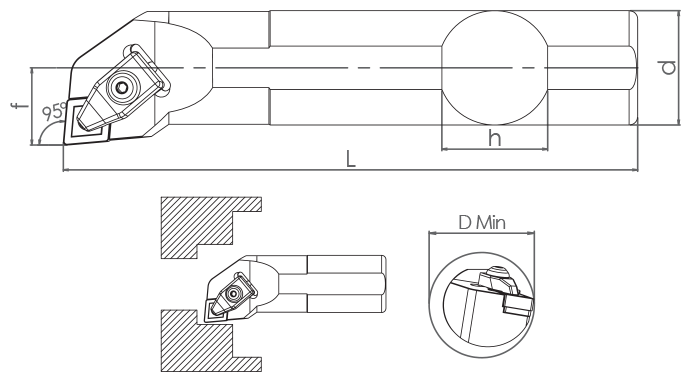

    Brand    		 d h L f D Min Direction Approach
    Angle    		 Weight
    (Kg)    		 T System Internal Diameter Turning Tools
    SM38721 S20R TCLNR-12 ISO 20 18 170 15 ≥26 Sağ 95° 0.5 CNM.1204.. 8681408038721
    SM38714 S20R TCLNL-12 ISO 20 18 170 15 ≥26 Sol 95° 0.5 CNM.1204.. 8681408038714

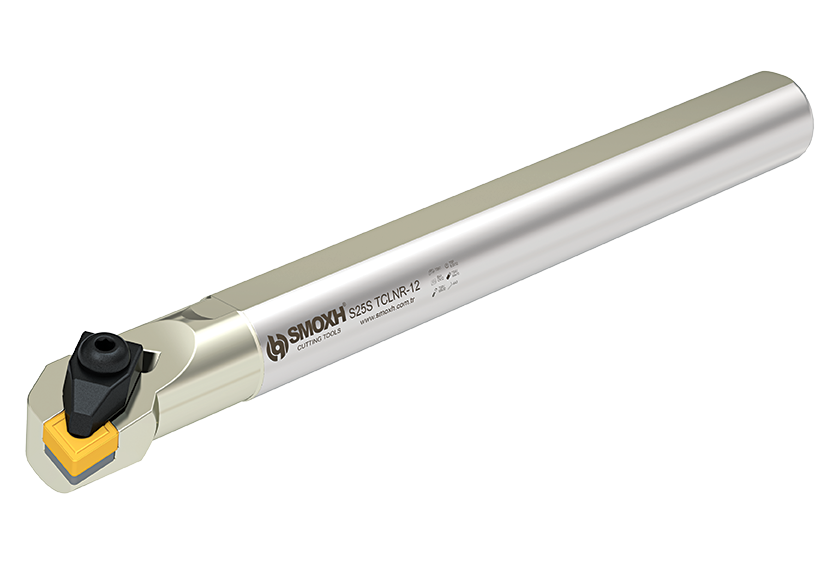

    SM04764 S25S TCLNR-12 ISO 25 23 250 19.5 ≥38 Sağ 95° 0.95 CNM.1204.. 8681408004764
    SM04740 S25S TCLNL-12 ISO 25 23 250 19.5 ≥38 Sol 95° 0.95 CNM.1204.. 8681408004740
    SM04832 S32T TCLNR-12 ISO 32 30 300 24 ≥40 Sağ 95° 1.77 CNM.1204.. 8681408004832
    SM04757 S32T TCLNL-12 ISO 32 30 300 24 ≥40 Sol 95° 1.77 CNM.1204.. 8681408004757
    SM04788 S40U TCLNR-12 ISO 40 37 350 30 ≥50 Sağ 95° 3.4 CNM.1204.. 8681408004788
    SM04795 S40U TCLNL-12 ISO 40 37 350 30 ≥50 Sol 95° 3.4 CNM.1204.. 8681408004795
    SM04771 S50V TCLNR-12 ISO 50 47 400 38 ≥63 Sağ 95° 5.9 CNM.1204.. 8681408004771
    SM04801 S50V TCLNL-12 ISO 50 47 400 38 ≥63 Sol 95° 5.9 CNM.1204.. 8681408004801
    SM04818 S32T TCLNR-16 ISO 32 30 300 24 ≥40 Sağ 95° 1.77 CNM.1606.. 8681408004818
    SM04825 S32T TCLNL-16 ISO 32 30 300 24 ≥40 Sol 95° 1.77 CNM.1606.. 8681408004825
    SM04849 S40U TCLNR-16 ISO 40 37 350 30 ≥44 Sağ 95° 3.4 CNM.1606.. 8681408004849
    SM04863 S40U TCLNL-16 ISO 40 37 350 30 ≥44 Sol 95° 3.4 CNM.1606.. 8681408004863
    SM04856 S50V TCLNR-16 ISO 50 47 400 38 ≥63 Sağ 95° 5.9 CNM.1606.. 8681408004856
    SM04870 S50V TCLNL-16 ISO 50 47 400 38 ≥63 Sol 95° 5.9 CNM.1606.. 8681408004870
    SM49314 S40U TCLNR-19 ISO 40 37 350 30 ≥50 Sağ 95° 3.4 CNM..1909.. 8681408049314
    SM49321 S40U TCLNL-19 ISO 40 37 350 30 ≥50 Sol 95° 3.4 CNM..1909.. 8681408049321
    SM38875 S50V TCLNR-19 ISO 50 47 400 38 ≥63 Sağ 95° 5.9 CNM..1909.. 8681408038875
    SM38868 S50V TCLNL-19 ISO 50 47 400 38 ≥63 Sol 95° 5.9 CNM..1909.. 8681408038868
