Smoxh Cutting Tools

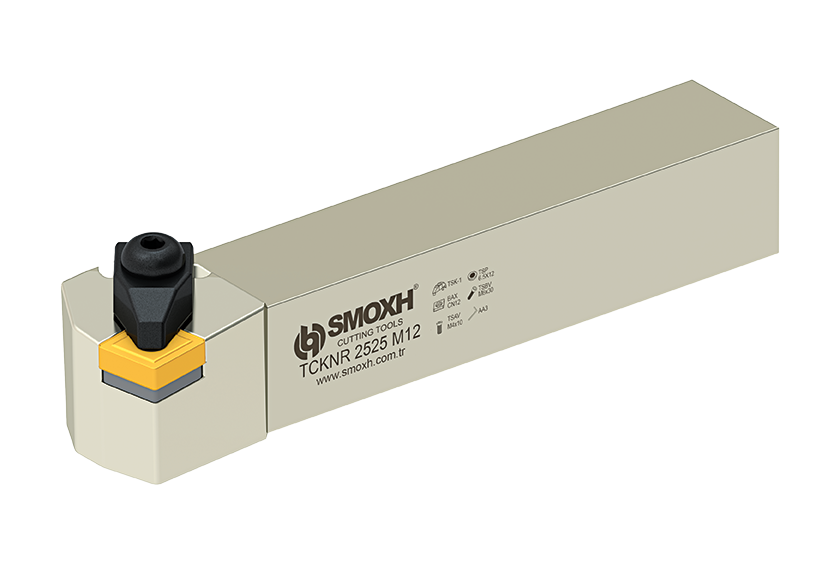

T System External Diameter Turning Tool - TCKNR/L (75)

TCKNR/L (75)

T System External Diameter Turning Tool

Technical Specifications

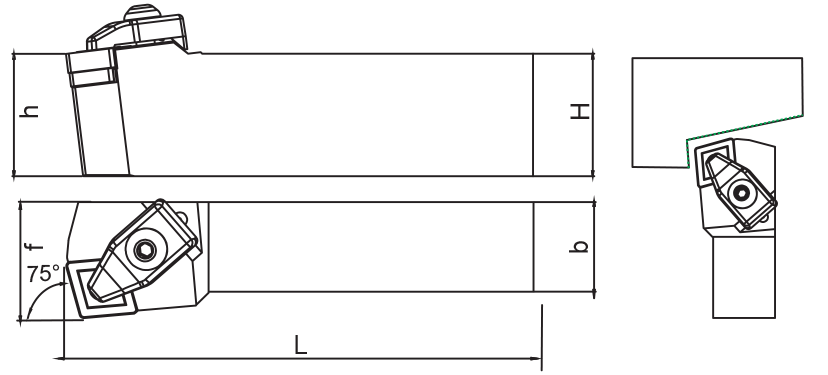

Ordering Code Item Designation Dimensions Master Insert Barcode
  TCKNR/L (75) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM44609 TCKNR 2020 K12 ISO 75° R 20 20 125 26 0.46 CNM.1204.. 8681408044609
SM44616 TCKNL 2020 K12 ISO 75° L 20 20 125 26 0.46 CNM.1204.. 8681408044616
SM44623 TCKNR 2525 M12 ISO 75° R 25 25 150 32 0.79 CNM.1204.. 8681408044623
SM44630 TCKNL 2525 M12 ISO 75° L 25 25 150 32 0.79 CNM.1204.. 8681408044630
SM44647 TCKNR 2525 M16 ISO 75° R 25 25 150 32 0.79 CNM.1606.. 8681408044647
SM44654 TCKNL 2525 M16 ISO 75° L 25 25 150 32 0.79 CNM.1606.. 8681408044654
SM44661 TCKNR 3232 P16 ISO 75° R 32 32 170 38 1.38 CNM.1606.. 8681408044661
SM44678 TCKNL 3232 P16 ISO 75° L 32 32 170 38 1.38 CNM.1606.. 8681408044678

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

✅ Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

✅ Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

✅ Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

✅ Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

✅ Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

✅ Negative Rake Angle Design
Ensures durability under high cutting forces.
