T System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

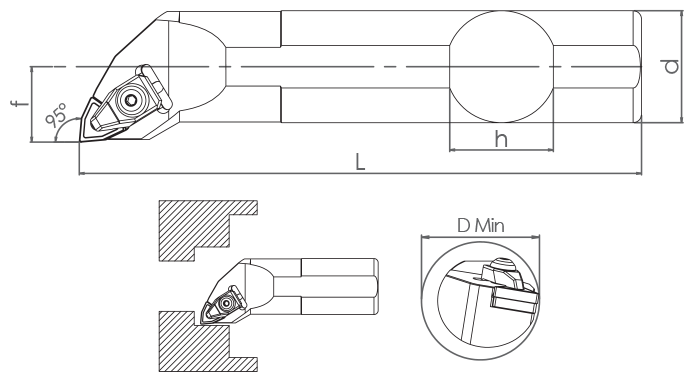

	TWLNR/L (95)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM50471	S20R TWLNR-06	ISO	20	18	170	15	≥26	Sağ	95°	0.5	WNM.0604..	8681408050471
SM50488	S20R TWLNL-06	ISO	20	18	170	15	≥26	Sol	95°	0.5	WNM.0604..	8681408050488

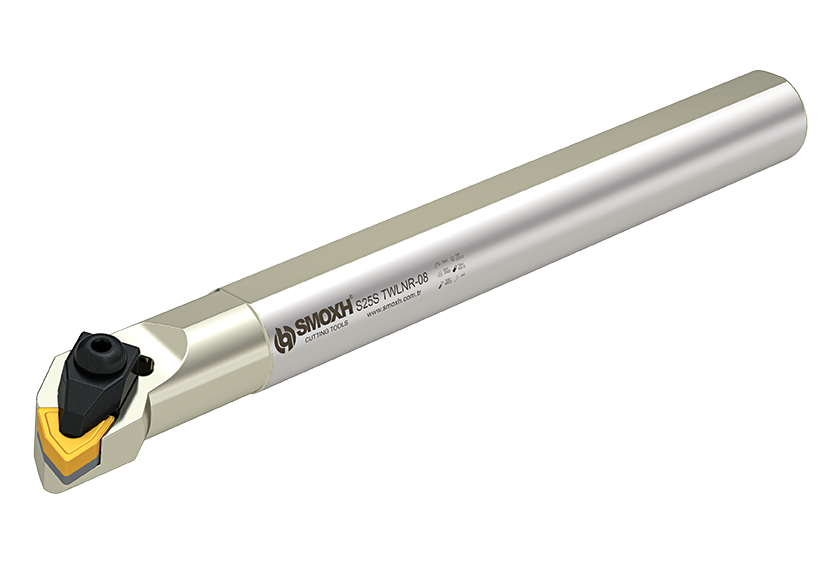

SM05488	S25S TWLNR-06	ISO	25	23	250	19.5	≥36	Sağ	95°	0.95	WNM.0604..	8681408005488
SM05495	S25S TWLNL-06	ISO	25	23	250	19.5	≥36	Sol	95°	0.95	WNM.0604..	8681408005495
SM05518	S32T TWLNR-06	ISO	32	30	300	24	≥44	Sağ	95°	1.77	WNM.0604..	8681408005518
SM05501	S32T TWLNL-06	ISO	32	30	300	24	≥44	Sol	95°	1.77	WNM.0604..	8681408005501
SM05532	S25S TWLNR-08	ISO	25	23	250	19.5	≥38	Sağ	95°	0.95	WNM.0804..	8681408005532
SM05570	S25S TWLNL-08	ISO	25	23	250	19.5	≥38	Sol	95°	0.95	WNM.0804..	8681408005570
SM05549	S32T TWLNR-08	ISO	32	30	300	24	≥44	Sağ	95°	1.77	WNM.0804..	8681408005549
SM05525	S32T TWLNL-08	ISO	32	30	300	24	≥44	Sol	95°	1.77	WNM.0804..	8681408005525
SM05556	S40U TWLNR-08	ISO	40	37	350	30	≥50	Sağ	95°	3.4	WNM.0804..	8681408005556
SM05587	S40U TWLNL-08	ISO	40	37	350	30	≥50	Sol	95°	3.4	WNM.0804..	8681408005587
SM05563	S50V TWLNR-08	ISO	50	47	400	38	≥63	Sağ	95°	5.9	WNM.0804..	8681408005563
SM05594	S50V TWLNL-08	ISO	50	47	400	38	≥63	Sol	95°	5.9	WNM.0804..	8681408005594

T System Internal Diameter Turning Tools - TWLNR/L (95)
