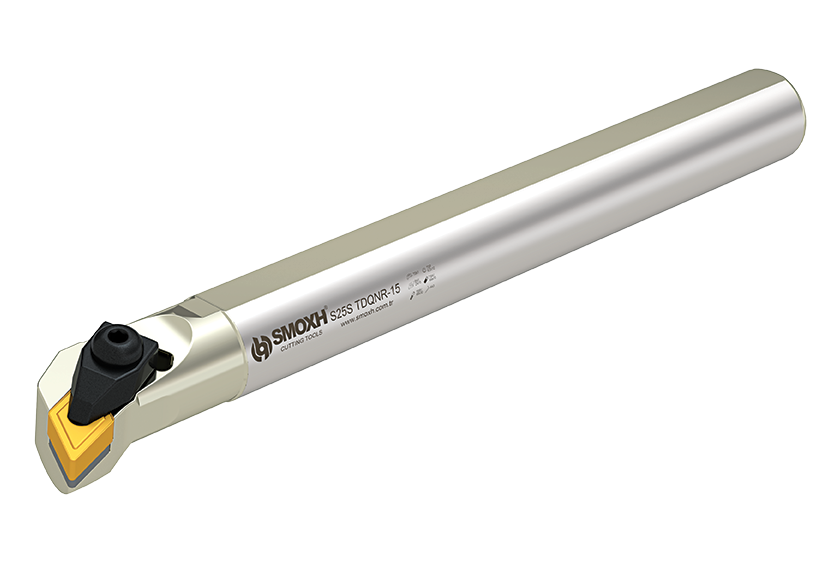

T System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

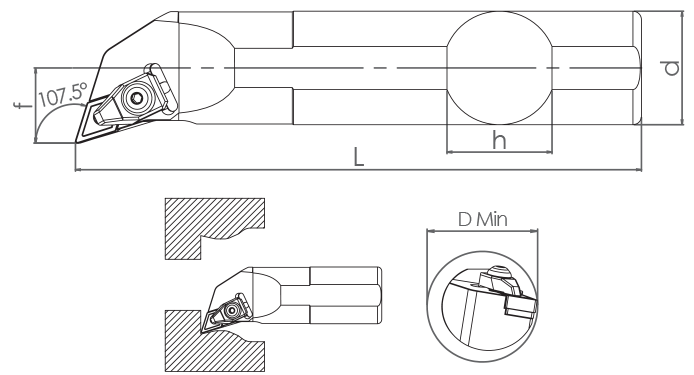

	TDQNR/L (107.5)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM04894	S25S TDQNR-11	ISO	25	23	250	19.5	≥36	Sağ	107.5°	0.95	DNM.1104..	8681408004894
SM04931	S25S TDQNL-11	ISO	25	23	250	19.5	≥36	Sol	107.5°	0.95	DNM.1104..	8681408004931
SM04962	S32T TDQNR-11	ISO	32	30	300	24	≥42	Sağ	107.5°	1.77	DNM.1104..	8681408004962
SM04979	S32T TDQNL-11	ISO	32	30	300	24	≥42	Sol	107.5°	1.77	DNM.1104..	8681408004979
SM05051	S25S TDQNR-15	ISO	25	23	250	19.5	≥39	Sağ	107.5°	0.95	DNM.1506..	8681408005051
SM05136	S25S TDQNL-15	ISO	25	23	250	19.5	≥39	Sol	107.5°	0.95	DNM.1506..	8681408005136
SM05082	S32T TDQNR-15	ISO	32	30	300	24	≥44	Sağ	107.5°	1.77	DNM.1506..	8681408005082
SM05006	S32T TDQNL-15	ISO	32	30	300	24	≥44	Sol	107.5°	1.77	DNM.1506..	8681408005006
SM05105	S40U TDQNR-15	ISO	40	37	350	30	≥50	Sağ	107.5°	3.4	DNM.1506..	8681408005105
SM05150	S40U TDQNL-15	ISO	40	37	350	30	≥50	Sol	107.5°	3.4	DNM.1506..	8681408005150
SM05020	S50V TDQNR-15	ISO	50	47	400	38	≥63	Sağ	107.5°	5.9	DNM.1506..	8681408005020
SM05181	S50V TDQNL-15	ISO	50	47	400	38	≥63	Sol	107.5°	5.9	DNM.1506..	8681408005181

T System Internal Diameter Turning Tools - TDQNR/L (107.5)
