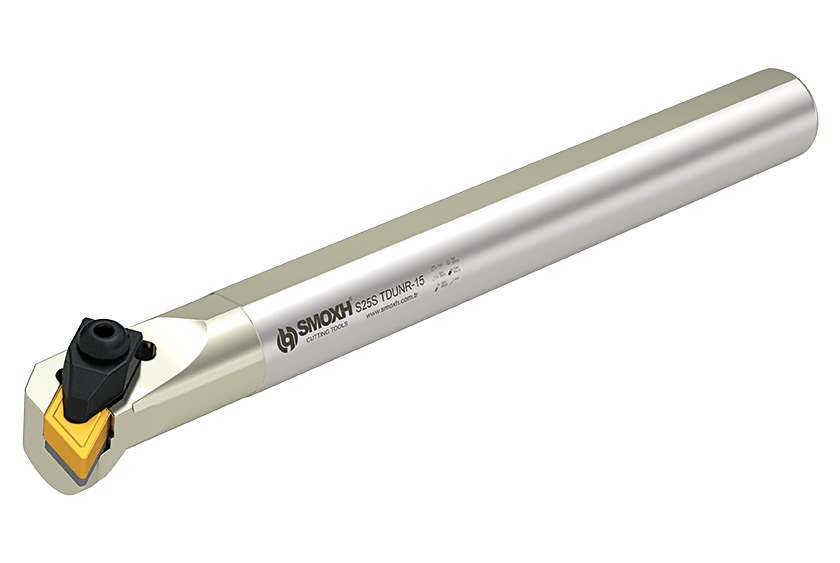

T System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

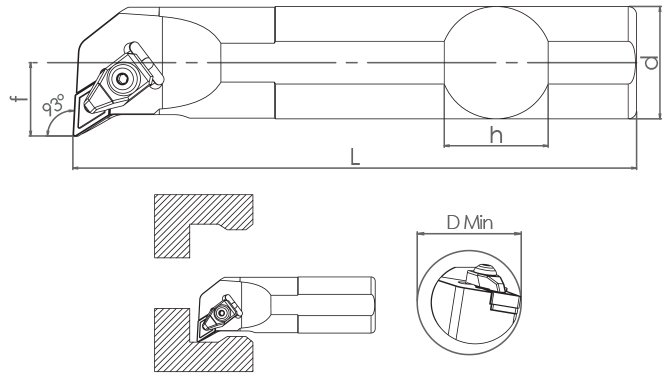

	TDUNR/L (93)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM04887	S25S TDUNR-11	ISO	25	23	250	19.5	≥33	Sağ	93°	0.95	DNM.1104..	8681408004887
SM04924	S25S TDUNL-11	ISO	25	23	250	19.5	≥33	Sol	93°	0.95	DNM.1104..	8681408004924
SM04917	S32T TDUNR-11	ISO	32	30	300	24	≥40	Sağ	93°	1.77	DNM.1104..	8681408004917
SM04955	S32T TDUNL-11	ISO	32	30	300	24	≥40	Sol	93°	1.77	DNM.1104..	8681408004955
SM05044	S25S TDUNR-15	ISO	25	23	250	19.5	≥39	Sağ	93°	0.95	DNM.1506..	8681408005044
SM04986	S25S TDUNL-15	ISO	25	23	250	19.5	≥39	Sol	93°	0.95	DNM.1506..	8681408004986
SM05075	S32T TDUNR-15	ISO	32	30	300	24	≥40	Sağ	93°	1.77	DNM.1506..	8681408005075
SM04993	S32T TDUNL-15	ISO	32	30	300	24	≥40	Sol	93°	1.77	DNM.1506..	8681408004993
SM05099	S40U TDUNR-15	ISO	40	37	350	30	≥50	Sağ	93°	3.4	DNM.1506..	8681408005099
SM05013	S40U TDUNL-15	ISO	40	37	350	30	≥50	Sol	93°	3.4	DNM.1506..	8681408005013
SM05112	S50V TDUNR-15	ISO	50	47	400	38	≥63	Sağ	93°	5.9	DNM.1506..	8681408005112
SM05174	S50V TDUNL-15	ISO	50	47	400	38	≥63	Sol	93°	5.9	DNM.1506..	8681408005174

T System Internal Diameter Turning Tools - TDUNR/L (93)
