Smoxh Cutting Tools

Center Holder Tools - CENTERING TOOLS

CENTERING TOOLS

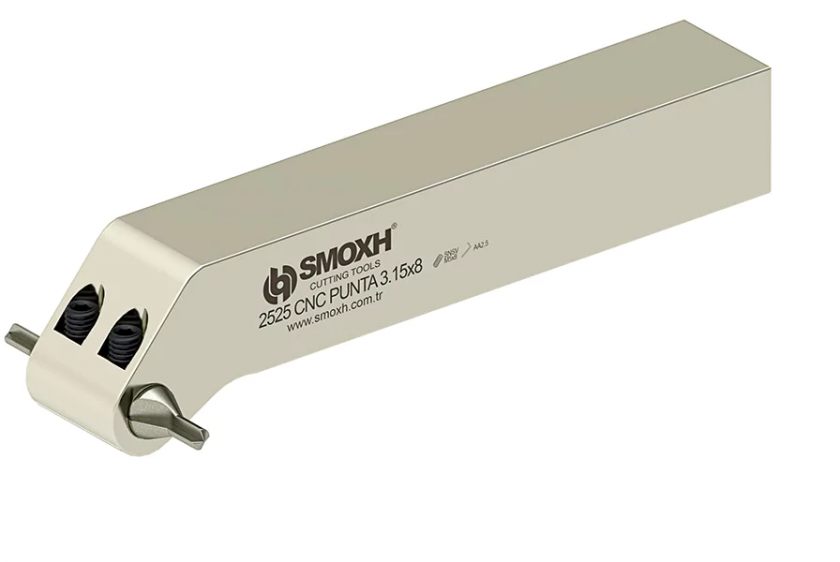

Center Holder Tools

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  CENTERING TOOLS Insert
Brand

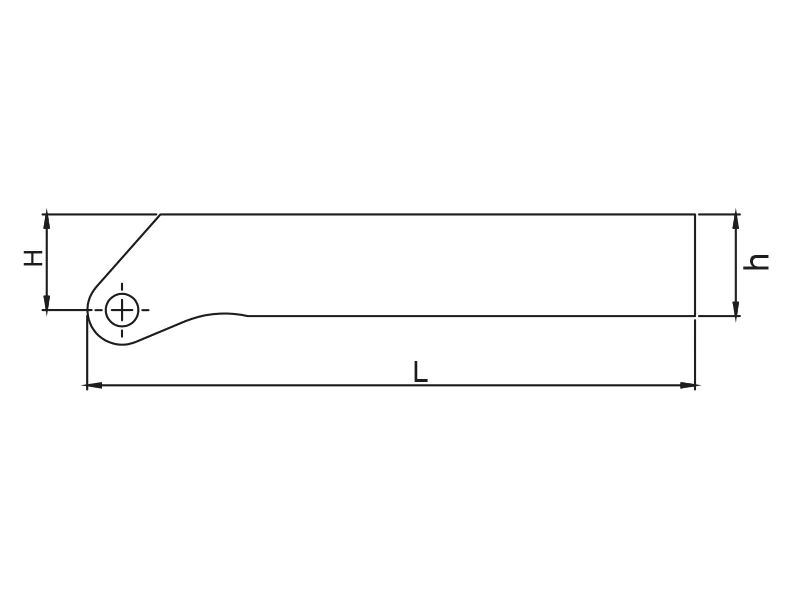

h=H L Weight
(Kg)
b Center Holder Tools
SM20542 2020 CCT 2.5x6 ISO 20 125 20 8681408020542
SM39407 2020 CCT 2.5x6.30 ISO 20 125 0.42 20 8681408039407
SM27886 2525 CCT 2.5x6.30 ISO 25 150 0.75 25 8681408027886
SM20573 2525 CCT 2.5x6 ISO 25 150 0.75 25 8681408020573
SM20559 2020 CCT 3.15x8 ISO 20 125 0.42 20 8681408020559
SM20580 2525 CCT 3.15x8 ISO 25 150 0.75 25 8681408020580
SM20566 2020 CCT 4x10 ISO 20 125 0.42 20 8681408020566
SM20597 2525 CCT 4x10 ISO 25 150 0.75 25 8681408020597
