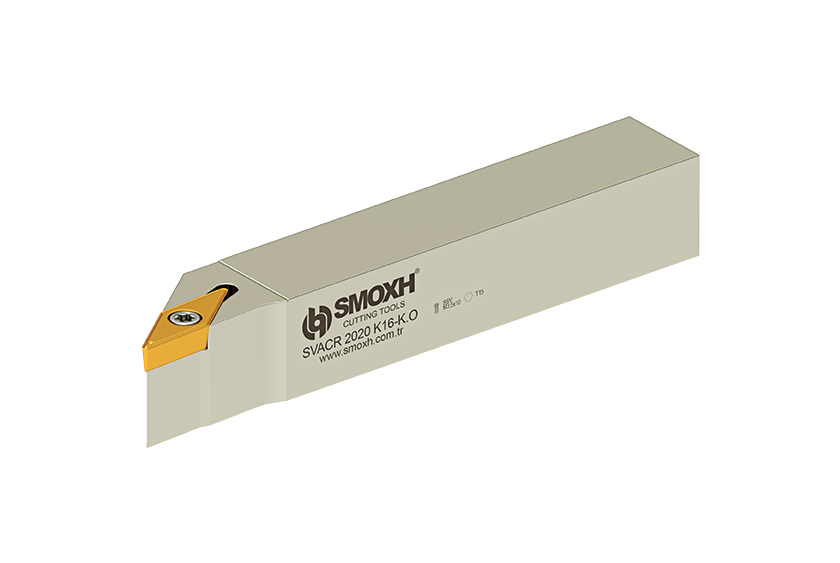

    S System Swiss Type External Diameter Turning Tools - SVACR/L K.O (90)

    SVACR/L K.O (90)

    S System Swiss Type External Diameter Turning Tools

    S System Swiss Type External Diameter Turning Tools

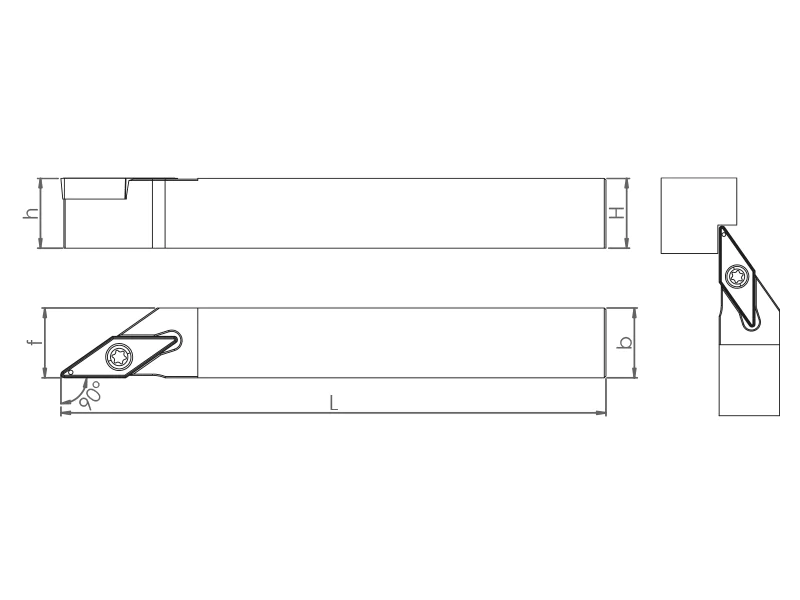

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      SVACR/L K.O (90) Diamond
    Brand    		 Approach
    Angle    		 Direction h=H b L f Weight
    (Kg)    		 S System Swiss Type External Diameter Turning Tools
    SM45736 SVACR 1212 K11 K.O ISO 90° R 12 12 125 12 VCM.1103.. 8681408045736
    SM45743 SVACL 1212 K11 K.O ISO 90° L 12 12 125 12 VCM.1103.. 8681408045743
    SM45750 SVACR 1616 K11 K.O ISO 90° R 16 16 125 16 VCM.1103.. 8681408045750
    SM45767 SVACL 1616 K11 K.O ISO 90° L 16 16 125 16 VCM.1103.. 8681408045767
    SM45774 SVACR 1616 K16 K.O ISO 90° R 16 16 125 16 VCM.1604.. 8681408045774
    SM45781 SVACL 1616 K16 K.O ISO 90° L 16 16 125 16 VCM.1604.. 8681408045781
    SM45798 SVACR 2020 K16 K.O ISO 90° R 20 20 125 20 0.42 VCM.1604.. 8681408045798
    SM45804 SVACL 2020 K16 K.O ISO 90° L 20 20 125 20 0.42 VCM.1604.. 8681408045804
