S System Swiss Type External Diameter Turning Tools

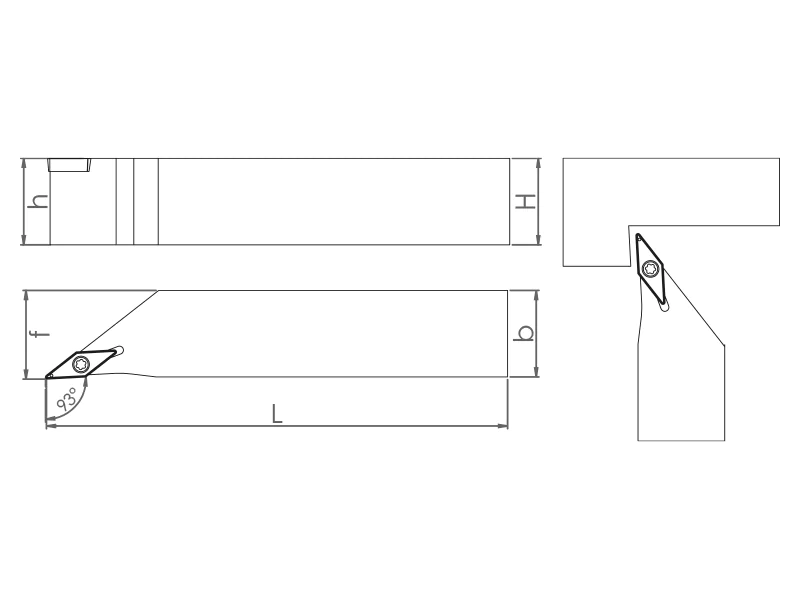

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	SVJBR/L K.O (93)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM23406	SVJBR 1010 K11 K.O	ISO	93°	R	10	10	125	10		VBM.1103..	8681408023406
SM23468	SVJBL 1010 K11 K.O	ISO	93°	L	10	10	125	10		VBM.1103..	8681408023468
SM23413	SVJBR 1212 G11 K.O	ISO	93°	R	12	12	90	12		VBM.1103..	8681408023413
SM23475	SVJBL 1212 G11 K.O	ISO	93°	L	12	12	90	12		VBM.1103..	8681408023475
SM23420	SVJBR 1212 K11 K.O	ISO	93°	R	12	12	125	12		VBM.1103..	8681408023420
SM23482	SVJBL 1212 K11 K.O	ISO	93°	L	12	12	125	12		VBM.1103..	8681408023482
SM23437	SVJBR 1616 F11 K.O	ISO	93°	R	16	16	75	16		VBM.1103..	8681408023437
SM23499	SVJBL 1616 F11 K.O	ISO	93°	L	16	16	75	16		VBM.1103..	8681408023499
SM23444	SVJBR 1616 K11 K.O	ISO	93°	R	16	16	125	16		VBM.1103..	8681408023444
SM23505	SVJBL 1616 K11 K.O	ISO	93°	L	16	16	125	16		VBM.1103..	8681408023505

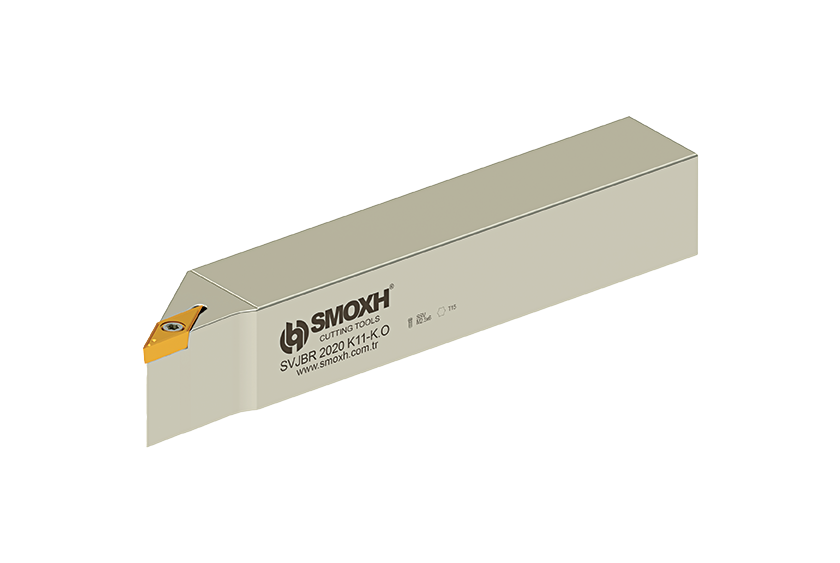

SM23451	SVJBR 2020 K11 K.O	ISO	93°	R	20	20	125	20	0.42	VBM.1103..	8681408023451
SM23512	SVJBL 2020 K11 K.O	ISO	93°	L	20	20	125	20	0.42	VBM.1103..	8681408023512

S System Swiss Type External Diameter Turning Tools - SVJBR/L K.O (93)
