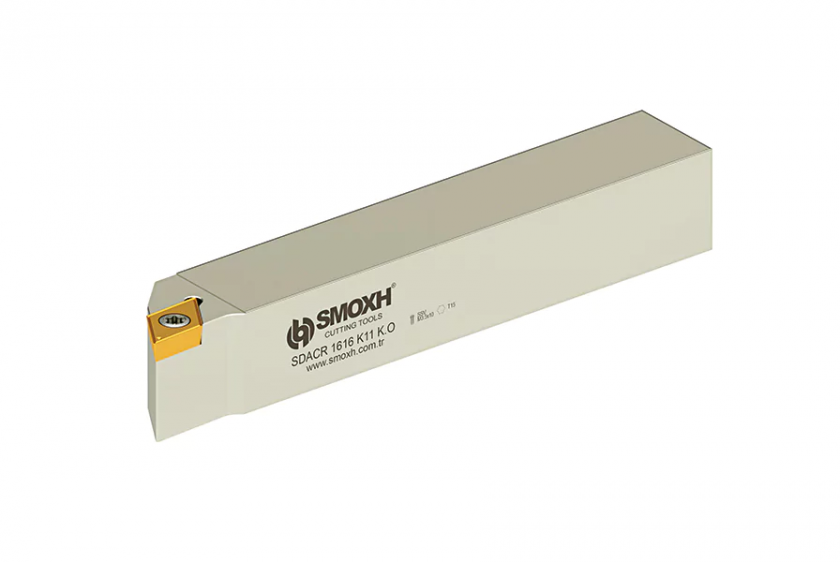

S System Swiss Type External Diameter Turning Tools

Ordering Code	Item Designation	Dimensions							Master Insert	Barcode

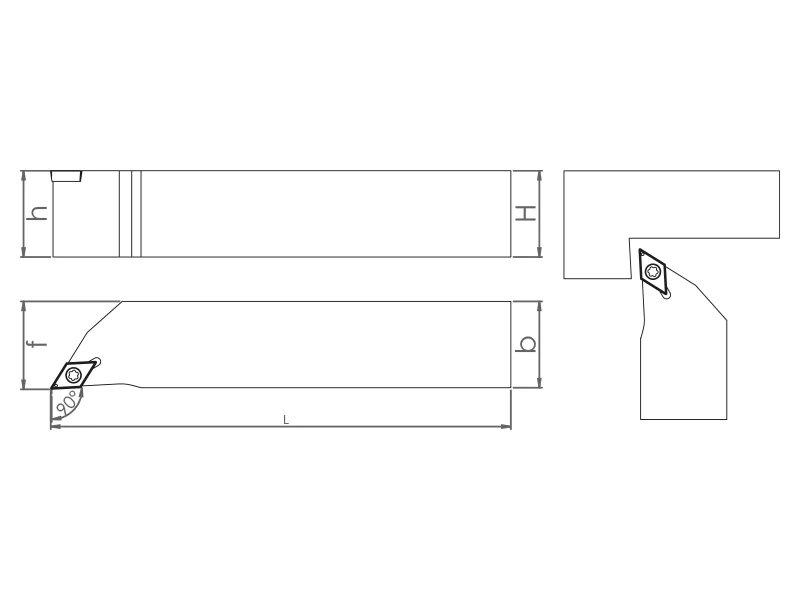

	SDACR/L K.O (90)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f
SM55391	SDACR 1010 K07 K.O	ISO	90°	R	10	10	125	10	DCM.0702..	8681408055391
SM55490	SDACL 1010 K07 K.O	ISO	90°	L	10	10	125	10	DCM.0702..	8681408055490
SM55407	SDACR 1212 K07 K.O	ISO	90°	R	12	12	125	12	DCM.0702..	8681408055407
SM55506	SDACL 1212 K07 K.O	ISO	90°	L	12	12	125	12	DCM.0702..	8681408055506
SM55414	SDACR 1616 K07 K.O	ISO	90°	R	16	16	125	16	DCM.0702..	8681408055414
SM55513	SDACL 1616 K07 K.O	ISO	90°	L	16	16	125	16	DCM.0702..	8681408055513
SM55421	SDACR 1212 K11 K.O	ISO	90°	R	12	12	125	12	DCM.11T3..	8681408055421
SM55520	SDACL 1212 K11 K.O	ISO	90°	L	12	12	125	12	DCM.11T3..	8681408055520
SM55438	SDACR 1616 K11 K.O	ISO	90°	R	16	16	125	16	DCM.11T3..	8681408055438
SM55537	SDACL 1616 K11 K.O	ISO	90°	L	16	16	125	16	DCM.11T3..	8681408055537

S System Swiss Type External Diameter Turning Tools - SDACR/L K.O (90)
