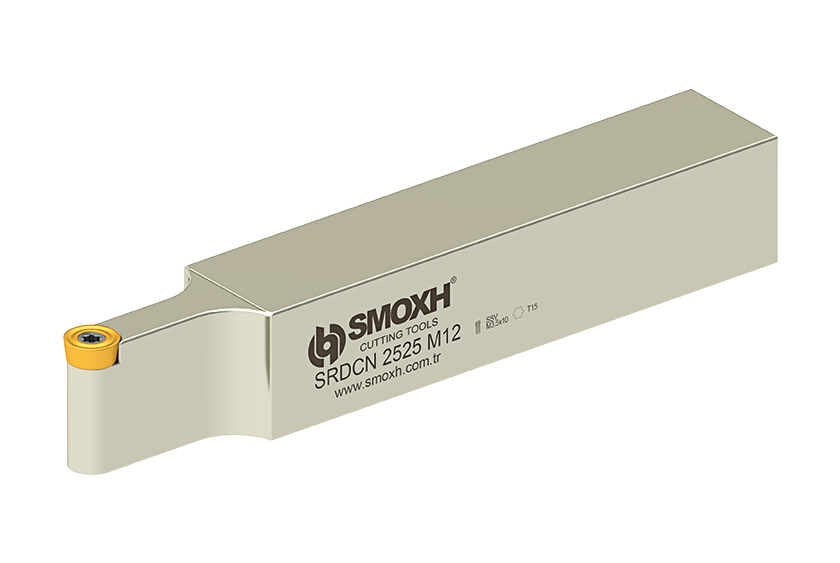

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

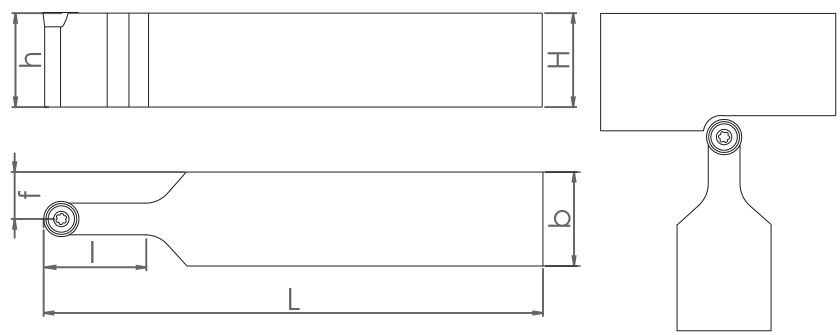

	SRDCN (-)	Diamond Brand	Approach Angle	Direction	h=H	b	L	I	f	Weight (Kg)
SM27152	SRDCN 1616 H06	ISO	-	N	16	16	100	8	15	0.22	RC.T 0602..	8681408027152
SM26551	SRDCN 2020 K06	ISO	-	N	20	20	125	10	17	0.42	RC.T 0602..	8681408026551
SM27169	SRDCN 2525 M06	ISO	-	N	25	25	150	12.5	17	0.71	RC.T 0602..	8681408027169
SM03033	SRDCN 1616 H08	ISO	-	N	16	16	100	8	15	0.22	RC.T 0803..	8681408003033
SM02968	SRDCN 2020 K08	ISO	-	N	20	20	125	10	20	0.42	RC.T 0803..	8681408002968
SM02975	SRDCN 2525 M08	ISO	-	N	25	25	150	12.5	20	0.71	RC.T 0803..	8681408002975
SM27183	SRDCN 3232 P08	ISO	-	N	32	32	170	16	20	1.33	RC.T 0803..	8681408027183
SM03187	SRDCN 1616 H10	ISO	-	N	16	16	100	8	20	0.22	RC.T 10T3..	8681408003187
SM03064	SRDCN 2020 K10	ISO	-	N	20	20	125	10	20	0.42	RC.T 10T3..	8681408003064
SM03071	SRDCN 2525 M10	ISO	-	N	25	25	150	12.5	20	0.71	RC.T 10T3..	8681408003071
SM03095	SRDCN 3232 P10	ISO	-	N	32	32	170	16	20	1.33	RC.T 10T3..	8681408003095
SM03224	SRDCN 2020 K12	ISO	-	N	20	20	125	10	22	0.42	RC.T 1204..	8681408003224
SM03231	SRDCN 2525 M12	ISO	-	N	25	25	150	12.5	22	0.71	RC.T 1204..	8681408003231
SM03293	SRDCN 3232 P12	ISO	-	N	32	32	170	16	22	1.33	RC.T 1204..	8681408003293
SM03354	SRDCN 2525 M16	ISO	-	N	25	25	150	12.5	32	0.71	RC.T 1605..	8681408003354
SM03392	SRDCN 3232 P16	ISO	-	N	32	32	170	16	35	1.33	RC.T 1605..	8681408003392
SM03453	SRDCN 2525 M20	ISO	-	N	25	25	150	12.5	32	0.71	RC.T 2006..	8681408003453
SM03484	SRDCN 3232 P20	ISO	-	N	32	32	170	16	40	1.33	RC.T 2006..	8681408003484
SM27176	SRDCN 4040 S20	ISO	-	N	40	40	250	20	40	3	RC.T 2006..	8681408027176

S System External Diameter Turning Tool - SRDCN (-)
