S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

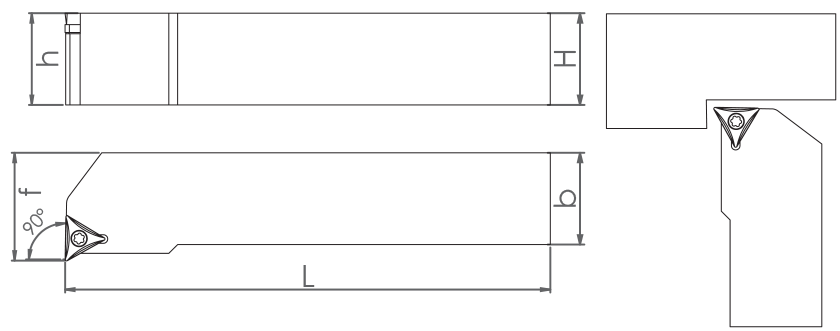

	STFCR/L (90)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03873	STFCR 0808 E09	ISO	90°	R	8	8	70	10	0.11	TCM.0902..	8681408003873
SM03880	STFCL 0808 E09	ISO	90°	L	8	8	70	10	0.11	TCM.0902..	8681408003880
SM03866	STFCR 1010 E09	ISO	90°	R	10	10	70	12	0.11	TCM.0902..	8681408003866
SM03859	STFCL 1010 E09	ISO	90°	L	10	10	70	12	0.11	TCM.0902..	8681408003859
SM03958	STFCR 1212 F11	ISO	90°	R	12	12	80	15	0.11	TCM.1102..	8681408003958
SM03965	STFCL 1212 F11	ISO	90°	L	12	12	80	15	0.11	TCM.1102..	8681408003965
SM03996	STFCR 1616 H11	ISO	90°	R	16	16	100	20	0.22	TCM.1102..	8681408003996
SM04009	STFCL 1616 H11	ISO	90°	L	16	16	100	20	0.22	TCM.1102..	8681408004009
SM04115	STFCR 1616 H16	ISO	90°	R	16	16	100	20	0.22	TCM.16T3..	8681408004115
SM04122	STFCL 1616 H16	ISO	90°	L	16	16	100	20	0.22	TCM.16T3..	8681408004122
SM04153	STFCR 2020 K16	ISO	90°	R	20	20	125	25	0.42	TCM.16T3..	8681408004153
SM04160	STFCL 2020 K16	ISO	90°	L	20	20	125	25	0.42	TCM.16T3..	8681408004160

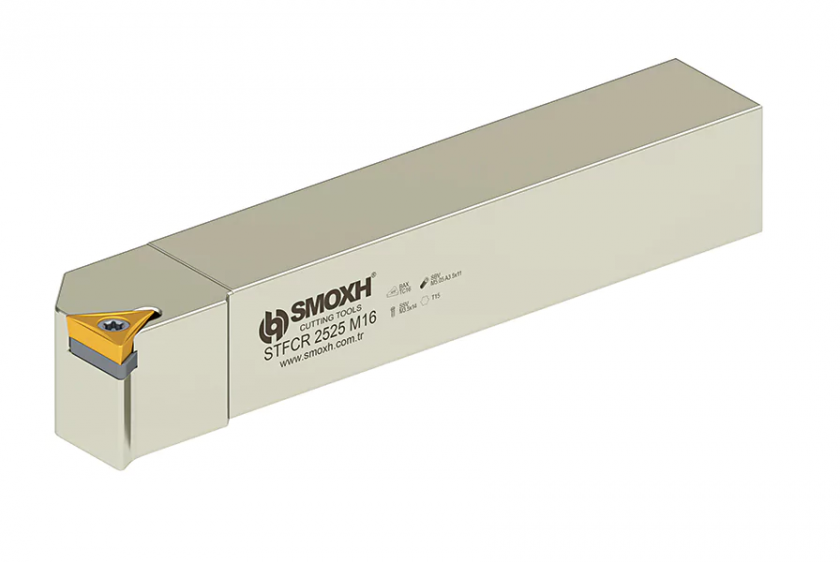

SM04191	STFCR 2525 M16	ISO	90°	R	25	25	150	30	0.71	TCM.16T3..	8681408004191
SM04207	STFCL 2525 M16	ISO	90°	L	25	25	150	30	0.71	TCM.16T3..	8681408004207
SM26582	STFCR 3232 P16	ISO	90°	R	32	32	170	38	1.33	TCM.16T3..	8681408026582
SM04238	STFCL 3232 P16	ISO	90°	L	32	32	170	38	1.33	TCM.16T3..	8681408004238

S System External Diameter Turning Tool - STFCR/L (90)
