S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

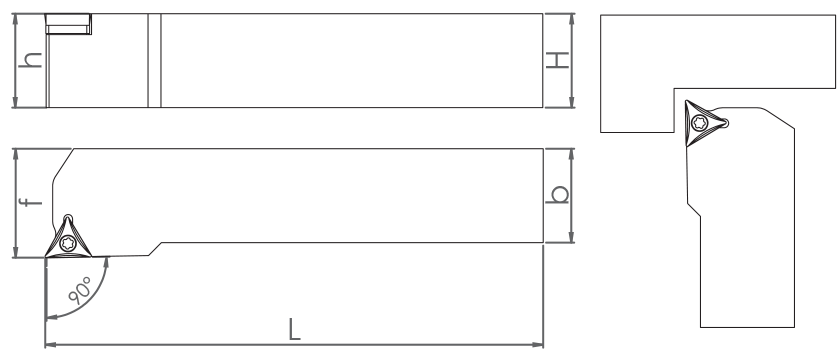

	STGCR/L (90)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03835	STGCR 0808 E09	ISO	90°	R	8	8	70	10	0.11	TCM.0902..	8681408003835
SM03842	STGCL 0808 E09	ISO	90°	L	8	8	70	10	0.11	TCM.0902..	8681408003842
SM03743	STGCR 1010 E09	ISO	90°	R	10	10	70	12	0.11	TCM.0902..	8681408003743
SM03750	STGCL 1010 E09	ISO	90°	L	10	10	70	12	0.11	TCM.0902..	8681408003750
SM03910	STGCR 1212 F11	ISO	90°	R	12	12	80	15	0.11	TCM.1102..	8681408003910
SM03941	STGCL 1212 F11	ISO	90°	L	12	12	80	15	0.11	TCM.1102..	8681408003941
SM03972	STGCR 1616 H11	ISO	90°	R	16	16	100	20	0.22	TCM.1102..	8681408003972
SM03989	STGCL 1616 H11	ISO	90°	L	16	16	100	20	0.22	TCM.1102..	8681408003989
SM04092	STGCR 1616 H16	ISO	90°	R	16	16	100	20	0.22	TCM.16T3..	8681408004092
SM04108	STGCL 1616 H16	ISO	90°	L	16	16	100	20	0.22	TCM.16T3..	8681408004108
SM04139	STGCR 2020 K16	ISO	90°	R	20	20	125	25	0.42	TCM.16T3..	8681408004139
SM04146	STGCL 2020 K16	ISO	90°	L	20	20	125	25	0.42	TCM.16T3..	8681408004146

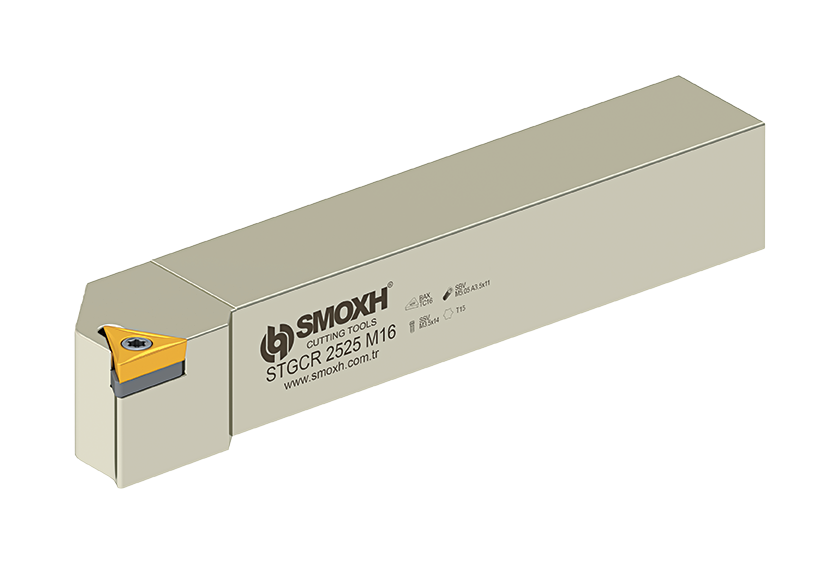

SM04177	STGCR 2525 M16	ISO	90°	R	25	25	150	29	0.71	TCM.16T3..	8681408004177
SM04184	STGCL 2525 M16	ISO	90°	L	25	25	150	29	0.71	TCM.16T3..	8681408004184
SM04221	STGCR 3232 P16	ISO	90°	R	32	32	170	38	1.33	TCM.16T3..	8681408004221
SM04214	STGCL 3232 P16	ISO	90°	L	32	32	170	38	1.33	TCM.16T3..	8681408004214

S System External Diameter Turning Tool - STGCR/L (90)
