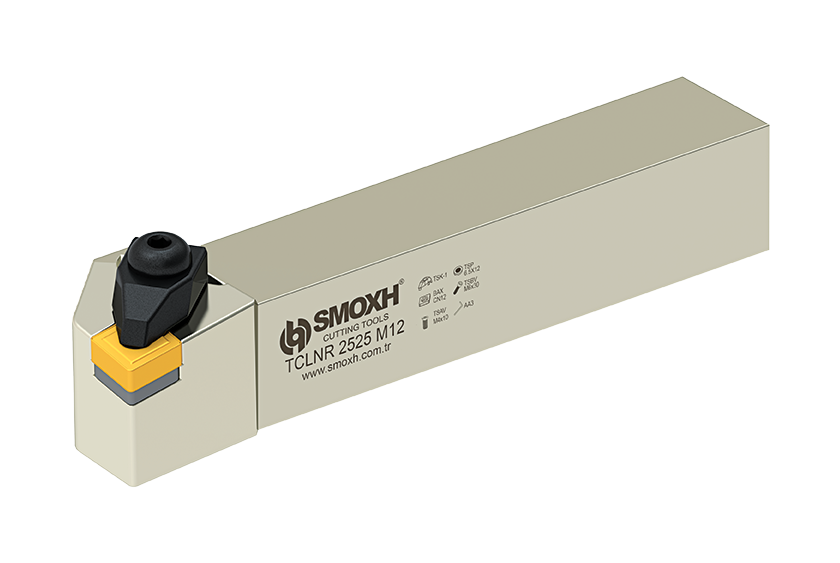

T System External Diameter Turning Tool - TCLNR/L (95)

TCLNR/L (95)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

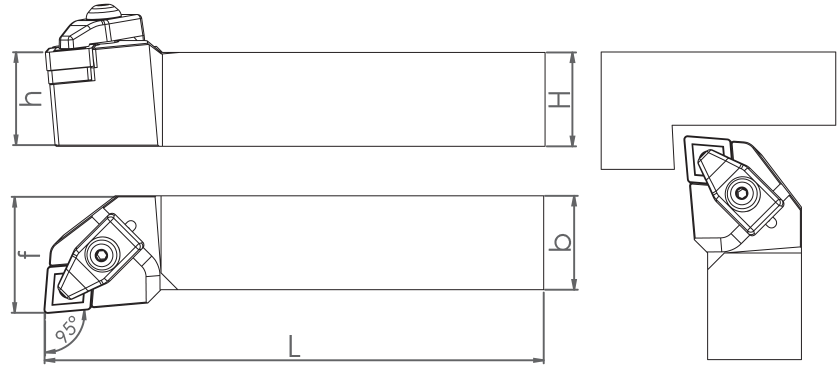

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TCLNR/L (95) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00210 TCLNR 2525 M09 ISO 95° R 25 25 150 32 0.79 CNM.0903.. 8690000000210
SM55377 TCLNL 2525 M09 ISO 95° L 25 25 150 32 0.79 CNM.0903.. 8681408055377
SM00025 TCLNR 2020 K12 ISO 95° R 20 20 125 26 0.46 CNM.1204.. 8681408000025
SM00032 TCLNL 2020 K12 ISO 95° L 20 20 125 26 0.46 CNM.1204.. 8681408000032
SM00056 TCLNR 2525 M12 ISO 95° R 25 25 150 32 0.79 CNM.1204.. 8681408000056
SM00063 TCLNL 2525 M12 ISO 95° L 25 25 150 32 0.79 CNM.1204.. 8681408000063
SM00087 TCLNR 3232 P12 ISO 95° R 32 32 170 38 1.38 CNM.1204.. 8681408000087
SM00094 TCLNL 3232 P12 ISO 95° L 32 32 170 38 1.38 CNM.1204.. 8681408000094
SM27091 TCLNR 4040 S12 ISO 95° R 40 40 250 47 3.12 CNM.1204.. 8681408027091
SM27107 TCLNL 4040 S12 ISO 95° L 40 40 250 47 3.12 CNM.1204.. 8681408027107
SM00148 TCLNR 2525 M16 ISO 95° R 25 25 150 32 0.79 CNM.1606.. 8681408000148
SM00155 TCLNL 2525 M16 ISO 95° L 25 25 150 32 0.79 CNM.1606.. 8681408000155
SM00179 TCLNR 3232 P16 ISO 95° R 32 32 170 38 1.38 CNM.1606.. 8681408000179
SM00186 TCLNL 3232 P16 ISO 95° L 32 32 170 38 1.38 CNM.1606.. 8681408000186
SM00209 TCLNR 4040 S16 ISO 95° R 40 40 250 47 3.12 CNM.1606.. 8681408000209
SM00193 TCLNL 4040 S16 ISO 95° L 40 40 250 47 3.12 CNM.1606.. 8681408000193
SM00278 TCLNL 3232 P19 ISO 95° L 32 32 170 38 1.38 CNM.1909.. 8681408000278
SM00261 TCLNR 3232 P19 ISO 95° R 32 32 170 38 1.38 CNM.1909.. 8681408000261
SM00292 TCLNL 4040 S19 ISO 95° L 40 40 250 47 3.12 CNM.1909.. 8681408000292
SM00285 TCLNR 4040 S19 ISO 95° R 40 40 250 47 3.12 CNM.1909.. 8681408000285
