S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	SSDCN (45)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03545	SSDCN 1212 F09	ISO	45°	N	12	12	80	6	0.11	SCM.09T3..	8681408003545
SM03590	SSDCN 1616 H09	ISO	45°	N	16	16	100	8	0.22	SCM.09T3..	8681408003590
SM03606	SSDCN 2020 K09	ISO	45°	N	20	20	125	10	0.42	SCM.09T3..	8681408003606
SM03620	SSDCN 2525 M09	ISO	45°	N	25	25	150	12.5	0.71	SCM.09T3..	8681408003620
SM03699	SSDCN 1616 H12	ISO	45°	N	16	16	100	8	0.22	SCM.1204..	8681408003699
SM03705	SSDCN 2020 K12	ISO	45°	N	20	20	125	10	0.42	SCM.1204..	8681408003705
SM03712	SSDCN 2525 M12	ISO	45°	N	25	25	150	12.5	0.71	SCM.1204..	8681408003712

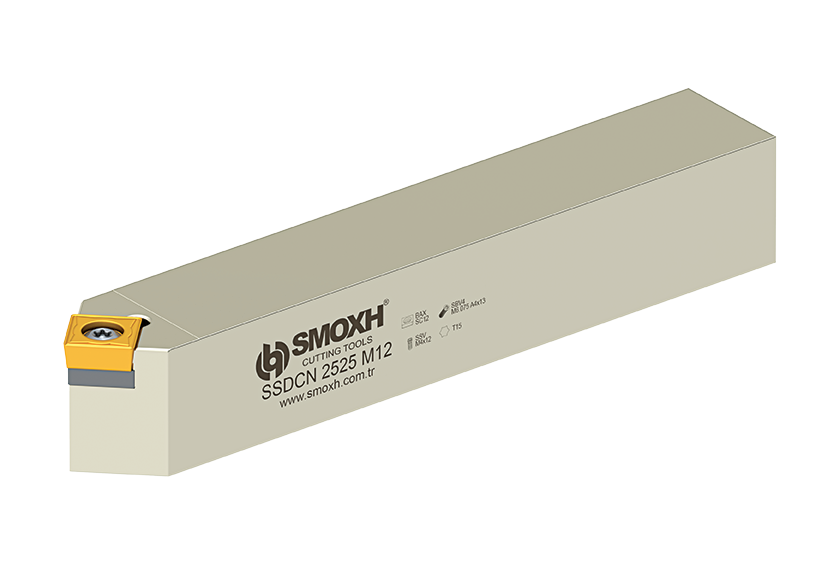

S System External Diameter Turning Tool - SSDCN (45)
