S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

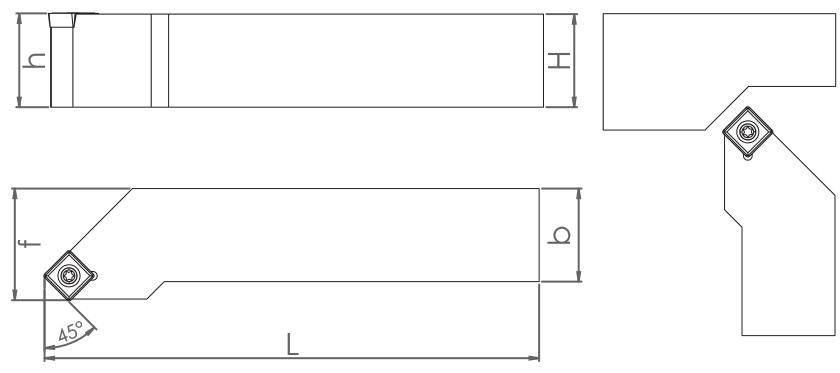

	SSSCR/L (45)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03521	SSSCR 1212 F09	ISO	45°	R	12	12	80	15	0.11	SCM.09T3..	8681408003521
SM03538	SSSCL 1212 F09	ISO	45°	L	12	12	80	15	0.11	SCM.09T3..	8681408003538
SM03552	SSSCR 1616 H09	ISO	45°	R	16	16	100	20	0.22	SCM.09T3..	8681408003552
SM03569	SSSCL 1616 H09	ISO	45°	L	16	16	100	20	0.22	SCM.09T3..	8681408003569
SM03576	SSSCR 2020 K09	ISO	45°	R	20	20	125	25	0.42	SCM.09T3..	8681408003576
SM03583	SSSCL 2020 K09	ISO	45°	L	20	20	125	25	0.42	SCM.09T3..	8681408003583
SM03637	SSSCR 1616 H12	ISO	45°	R	16	16	100	20	0.22	SCM.1204..	8681408003637
SM03644	SSSCL 1616 H12	ISO	45°	L	16	16	100	20	0.22	SCM.1204..	8681408003644
SM03651	SSSCR 2020 K12	ISO	45°	R	20	20	125	25	0.42	SCM.1204..	8681408003651
SM03668	SSSCL 2020 K12	ISO	45°	L	20	20	125	25	0.42	SCM.1204..	8681408003668
SM03613	SSSCR 2525 M09	ISO	45°	R	25	25	150	29	0.71	SCM.09T3..	8681408003613
SM03514	SSSCL 2525 M09	ISO	45°	L	25	25	150	29	0.71	SCM.09T3..	8681408003514
SM03675	SSSCR 2525 M12	ISO	45°	R	25	25	150	30	0.71	SCM.1204..	8681408003675
SM03682	SSSCL 2525 M12	ISO	45°	L	25	25	150	30	0.71	SCM.1204..	8681408003682

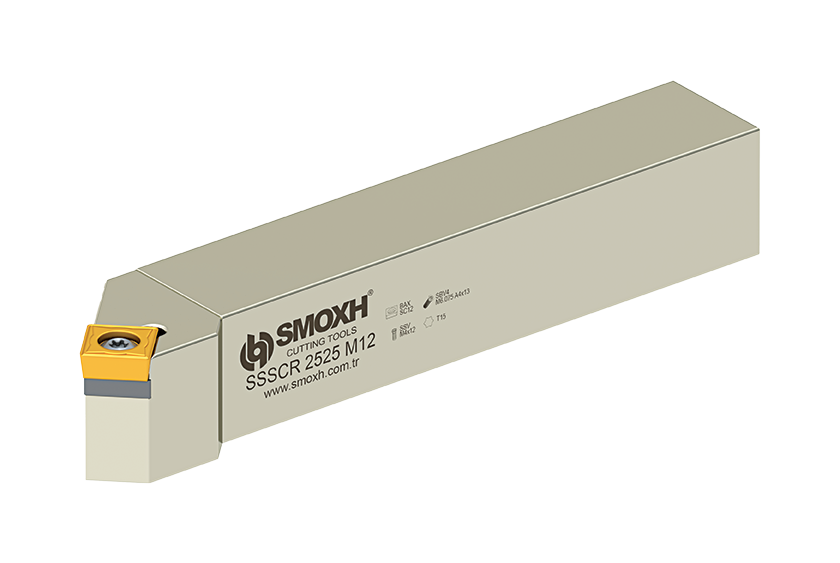

S System External Diameter Turning Tool - SSSCR/L (45)
