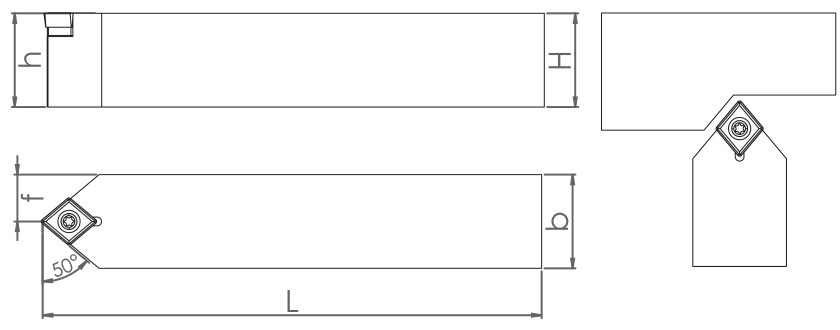

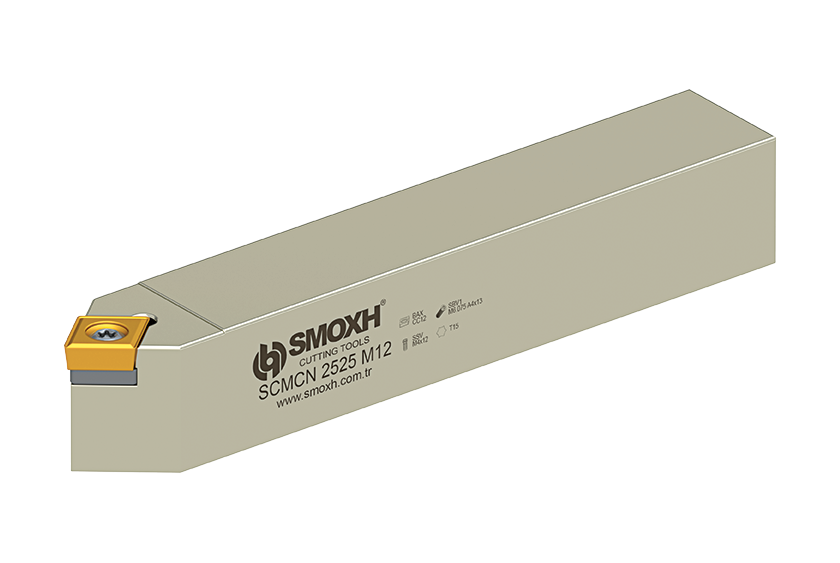

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	SCMCN (50)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03781	SCMCN 0808 E06	ISO	50°	N	8	8	70	4		CCM.0602..	8681408003781
SM02265	SCMCN 1010 E06	ISO	50°	N	10	10	70	5	0.73	CCM.0602..	8681408002265
SM02371	SCMCN 1212 F09	ISO	50°	N	12	12	80	6	0.11	CCM.09T3..	8681408002371
SM02401	SCMCN 1616 H09	ISO	50°	N	16	16	100	8	0.22	CCM.09T3..	8681408002401
SM02432	SCMCN 2020 K09	ISO	50°	N	20	20	125	10	0.42	CCM.09T3..	8681408002432
SM20993	SCMCN 2525 M09	ISO	50°	N	25	25	150	12.5	0.71	CCM.09T3..	8681408020993
SM02494	SCMCN 2020 K12	ISO	50°	N	20	20	125	10	0.42	CCM.1204..	8681408002494
SM02531	SCMCN 2525 M12	ISO	50°	N	25	25	150	12.5	0.71	CCM.1204..	8681408002531

S System External Diameter Turning Tool - SCMCN (50)
