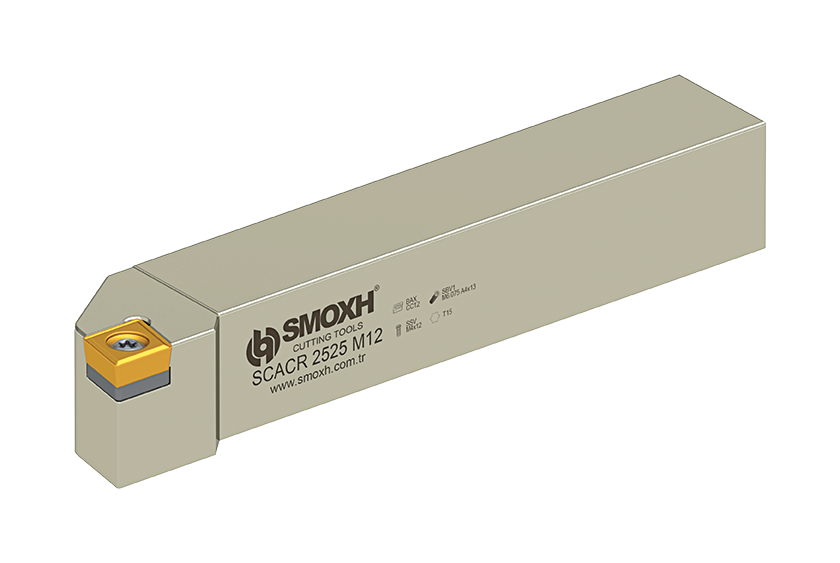

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

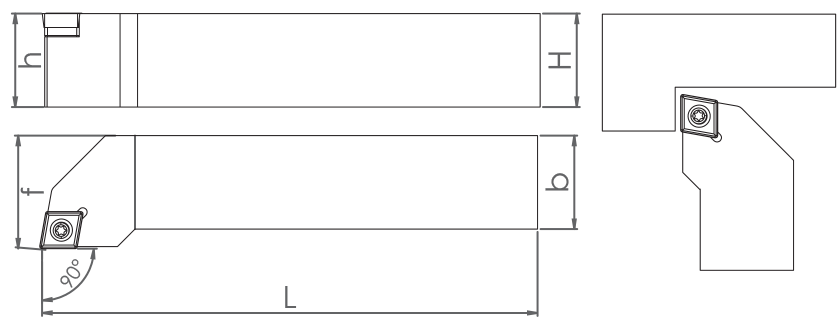

	SCACR/L (90)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03798	SCACR 0808 E06	ISO	90°	R	8	8	70	10	0.1	CCM.0602..	8681408003798
SM03804	SCACL 0808 E06	ISO	90°	L	8	8	70	10	0.1	CCM.0602..	8681408003804
SM02272	SCACR 1010 E06	ISO	90°	R	10	10	70	12	0.1	CCM.0602..	8681408002272
SM02289	SCACL 1010 E06	ISO	90°	L	10	10	70	12	0.1	CCM.0602..	8681408002289
SM02388	SCACR 1212 F09	ISO	90°	R	12	12	80	15	0.11	CCM.09T3..	8681408002388
SM02395	SCACL 1212 F09	ISO	90°	L	12	12	80	15	0.11	CCM.09T3..	8681408002395
SM02418	SCACR 1616 H09	ISO	90°	R	16	16	100	20	0.22	CCM.09T3..	8681408002418
SM02425	SCACL 1616 H09	ISO	90°	L	16	16	100	20	0.22	CCM.09T3..	8681408002425
SM02449	SCACR 2020 K09	ISO	90°	R	20	20	125	25	0.42	CCM.09T3..	8681408002449
SM02456	SCACL 2020 K09	ISO	90°	L	20	20	125	25	0.42	CCM.09T3..	8681408002456
SM26957	SCACR 2525 M09	ISO	90°	R	25	25	150	29	0.71	CCM.09T3..	8681408026957
SM26964	SCACL 2525 M09	ISO	90°	L	25	25	150	29	0.71	CCM.09T3..	8681408026964
SM02500	SCACR 2020 K12	ISO	90°	R	20	20	125	25	0.42	CCM.1204..	8681408002500
SM02517	SCACL 2020 K12	ISO	90°	L	20	20	125	25	0.42	CCM.1204..	8681408002517
SM02548	SCACR 2525 M12	ISO	90°	R	25	25	150	29	0.71	CCM.1204..	8681408002548
SM02555	SCACL 2525 M12	ISO	90°	L	25	25	150	29	0.71	CCM.1204..	8681408002555

S System External Diameter Turning Tool - SCACR/L (90)
