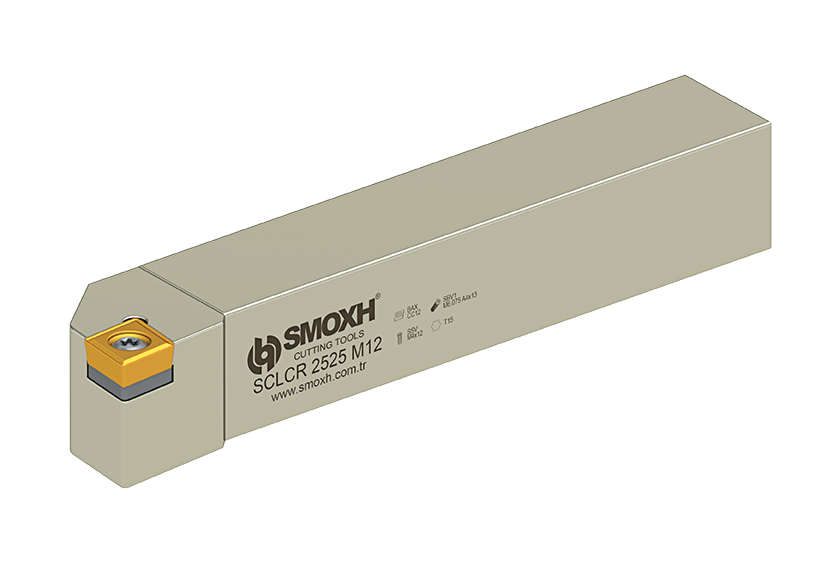

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

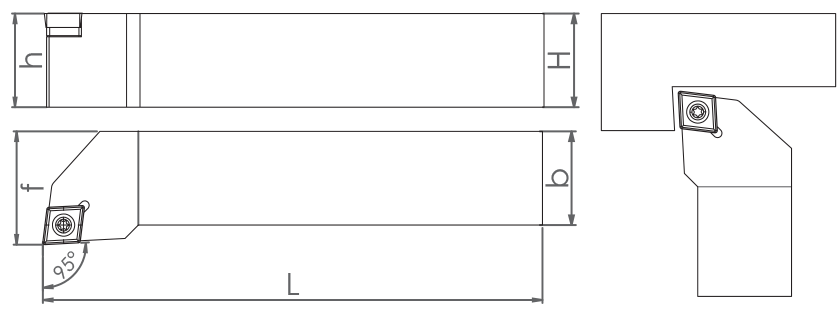

	SCLCR/L (95)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM03767	SCLCR 0808 E06	ISO	95°	R	8	8	70	10	0.1	CCM.0602..	8681408003767
SM02241	SCLCR 1010 E06	ISO	95°	R	10	10	70	12	0.1	CCM.0602..	8681408002241
SM27275	SCLCR 1212 F06	ISO	95°	R	12	12	80	15	0.11	CCM.0602..	8681408027275
SM02296	SCLCR 1212 F09	ISO	95°	R	12	12	80	15	0.11	CCM.09T3..	8681408002296
SM02340	SCLCR 1616 H09	ISO	95°	R	16	16	100	20	0.22	CCM.09T3..	8681408002340
SM02326	SCLCR 2020 K09	ISO	95°	R	20	20	125	25	0.42	CCM.09T3..	8681408002326
SM02357	SCLCR 2525 M09	ISO	95°	R	25	25	150	29	0.71	CCM.09T3..	8681408002357
SM49239	SCLCR 1616 H12	ISO	95°	R	16	16	100	20	0.22	CCM.1204..	8681408049239
SM02470	SCLCR 2020 K12	ISO	95°	R	20	20	125	25	0.42	CCM.1204..	8681408002470
SM02463	SCLCR 2525 M12	ISO	95°	R	25	25	150	29	0.71	CCM.1204..	8681408002463
SM03774	SCLCL 0808 E06	ISO	95°	L	8	8	70	10	0.1	CCM.0602..	8681408003774
SM02258	SCLCL 1010 E06	ISO	95°	L	10	10	70	12	0.1	CCM.0602..	8681408002258
SM37588	SCLCL 1212 F06	ISO	95°	L	12	12	80	15	0.11	CCM.0602..	8681408037588
SM26681	SCLCL 1212 F09	ISO	95°	L	12	12	80	15	0.11	CCM.09T3..	8681408026681
SM02302	SCLCL 1616 H09	ISO	95°	L	16	16	100	20	0.22	CCM.09T3..	8681408002302
SM02319	SCLCL 2020 K09	ISO	95°	L	20	20	125	25	0.42	CCM.09T3..	8681408002319
SM02333	SCLCL 2525 M09	ISO	95°	L	25	25	150	29	0.71	CCM.09T3..	8681408002333
SM49246	SCLCL 1616 H12	ISO	95°	L	16	16	100	20	0.22	CCM.1204..	8681408049246
SM02487	SCLCL 2020 K12	ISO	95°	L	20	20	125	25	0.42	CCM.1204..	8681408002487
SM02524	SCLCL 2525 M12	ISO	95°	L	25	25	150	29	0.71	CCM.1204..	8681408002524

S System External Diameter Turning Tool - SCLCR/L (95)
