S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

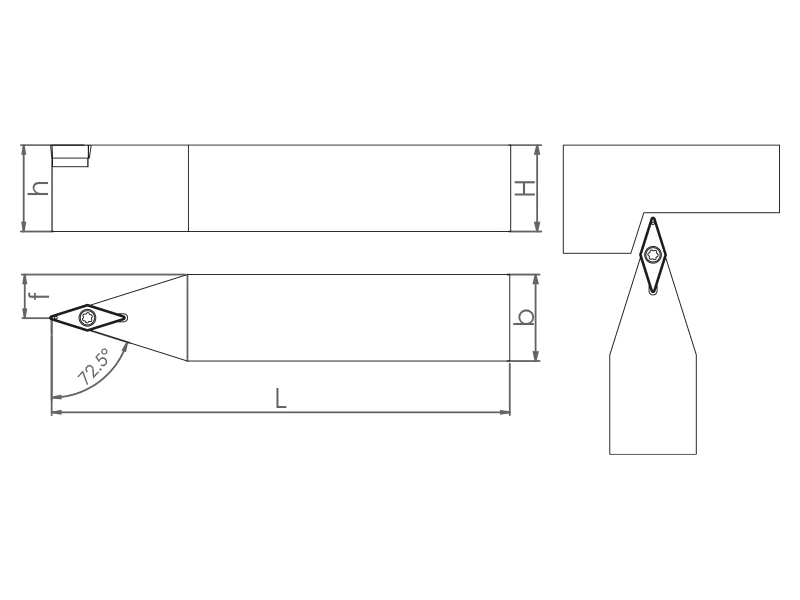

	SVVCN (72.5)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM45026	SVVCN 1616 H11	ISO	72.5°	N	16	16	100	8	0.22	VCM.1103..	8681408045026
SM44418	SVVCN 2020 K11	ISO	72.5°	N	20	20	125	10	0.42	VCM.1103..	8681408044418
SM44401	SVVCN 2020 K16	ISO	72.5°	N	20	20	125	10	0.42	VCM.1604..	8681408044401

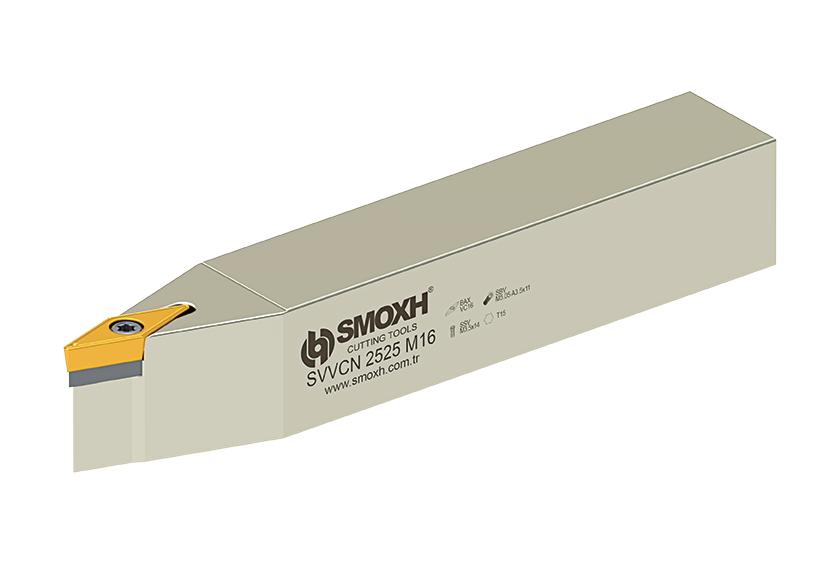

SM40199	SVVCN 2525 M16	ISO	72.5°	N	25	25	150	12.5	0.71	VCM.1604..	8681408040199
SM45064	SVVCN 3232 P16	ISO	72.5°	N	32	32	170	16	1.33	VCM.1604..	8681408045064

S System External Diameter Turning Tool - SVVCN (72.5)
