S System External Diameter Turning Tool - SVHCR/L (107.5)
Home
Products
External Diameter Turning Tools
S System External Diameter Turning Tools
S System External Diameter Turning Tool
SVHCR/L (107.5)
S System External Diameter Turning Tool
Technical
Specifications
Ordering Code
Item Designation

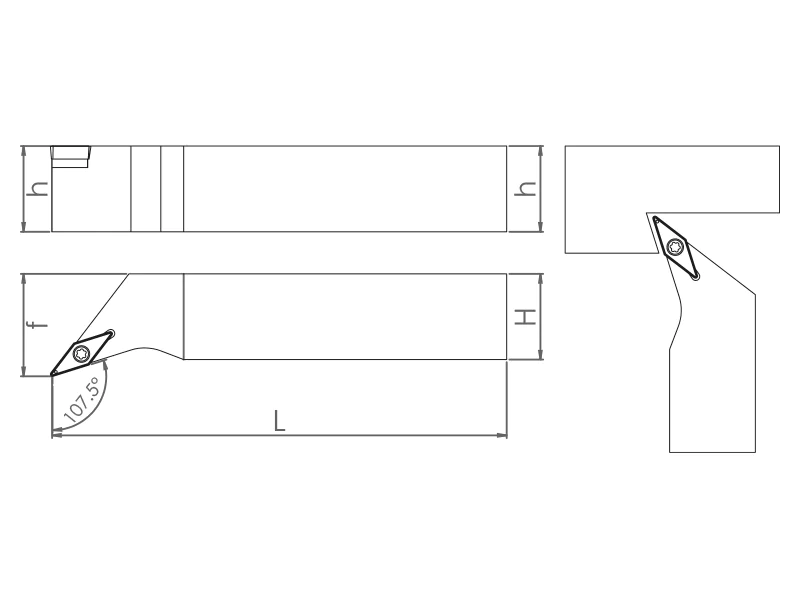

Dimensions
Master Insert
Barcode
SVHCR/L (107.5)
DiamondBrand
ApproachAngle
Direction
h=H
b
L
f
Weight(Kg)
SM23680
SVHCR 1616 H11
ISO
107.5°
R
16
16
100
20
0.22
VCM.1103..
8681408023680
SM23734
SVHCL 1616 H11
ISO
107.5°
L
16
16
100
20
0.22
VCM.1103..
8681408023734
SM23697
SVHCR 2020 K11
ISO
107.5°
R
20
20
125
25
0.42
VCM.1103..
8681408023697
SM23758
SVHCL 2020 K11
ISO
107.5°
L
20
20
125
25
0.42
VCM.1103..
8681408023758
SM23710
SVHCR 2020 K16
ISO
107.5°
R
20
20
125
25
0.42
VCM.1604..
8681408023710
SM23765
SVHCL 2020 K16
ISO
107.5°
L
20
20
125
25
0.42
VCM.1604..
8681408023765
SM23703

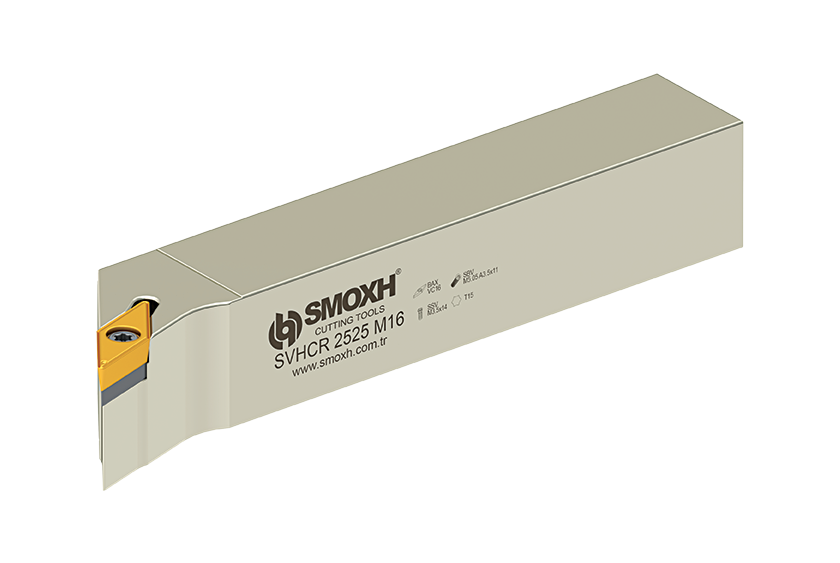

SVHCR 2525 M16
ISO
107.5°
R
25
25
150
29
0.71
VCM.1604..
8681408023703
SM23772
SVHCL 2525 M16
ISO
107.5°
L
25
25
150
29
0.71
VCM.1604..
8681408023772
SM23727
SVHCR 3232 P16
ISO
107.5°
R
32
32
170
38
1.33
VCM.1604..
8681408023727
SM23789
SVHCL 3232 P16
ISO
107.5°
L
32
32
170
38
1.33
VCM.1604..
8681408023789
