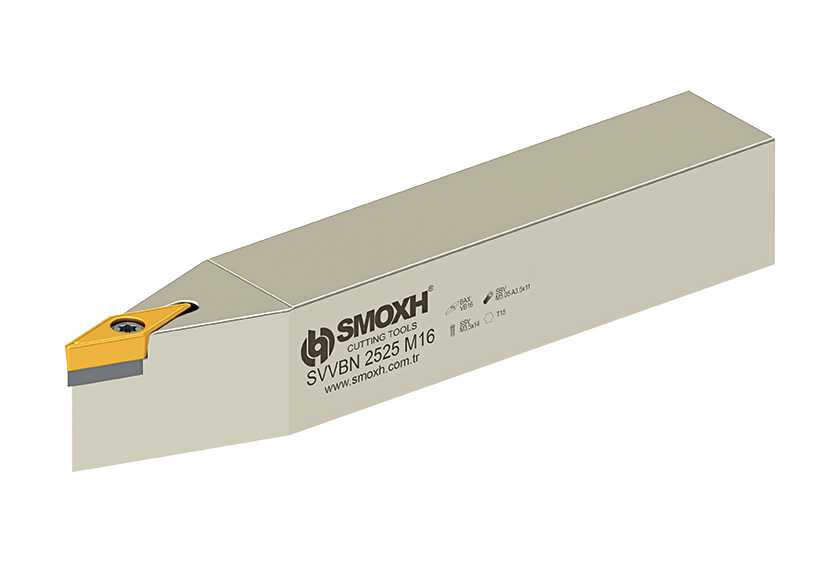

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

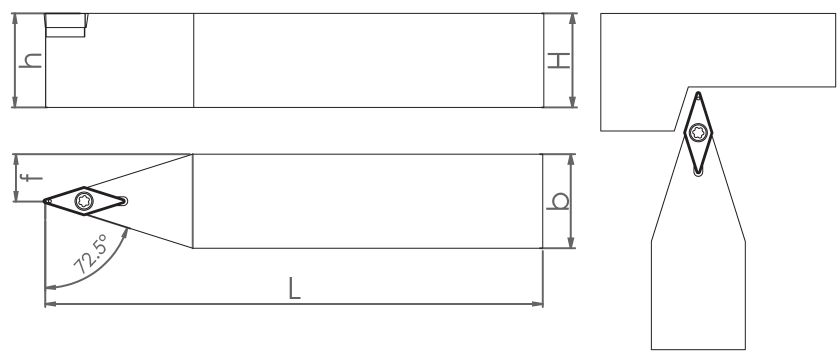

	SVVBN (72.5)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM04337	SVVBN 1616 H11	ISO	72.5°	N	16	16	100	8	0.22	VBM.1103..	8681408004337
SM04245	SVVBN 2020 K11	ISO	72.5°	N	20	20	125	10	0.42	VBM.1103..	8681408004245
SM04290	SVVBN 2525 M11	ISO	72.5°	N	25	25	150	12.5	0.71	VBM.1103..	8681408004290
SM04528	SVVBN 1616 H16	ISO	72.5°	N	16	16	100	8	0.22	VBM.1604..	8681408004528
SM04559	SVVBN 2020 K16	ISO	72.5°	N	20	20	125	10	0.42	VBM.1604..	8681408004559
SM04603	SVVBN 2525 M16	ISO	72.5°	N	25	25	150	12.5	0.71	VBM.1604..	8681408004603
SM04634	SVVBN 3232 P16	ISO	72.5°	N	32	32	170	16	1.33	VBM.1604..	8681408004634

S System External Diameter Turning Tool - SVVBN (72.5)
