S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

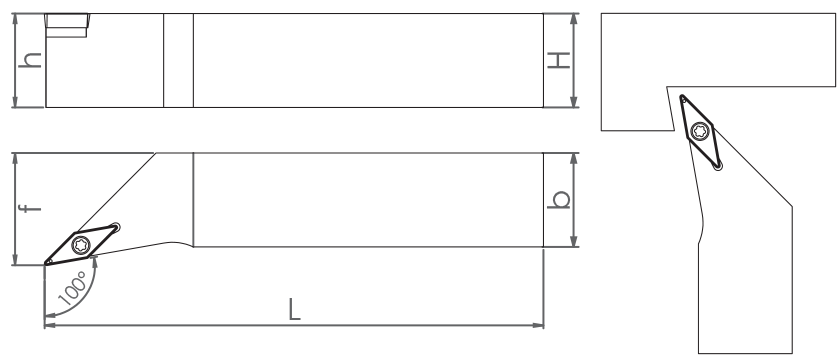

	SVZBR/L (100)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM04405	SVZBR 1616 H11	ISO	100°	R	16	16	100	20	0.22	VBM.1103..	8681408004405
SM04351	SVZBL 1616 H11	ISO	100°	L	16	16	100	20	0.22	VBM.1103..	8681408004351
SM04429	SVZBR 2020 K11	ISO	100°	R	20	20	125	25	0.42	VBM.1103..	8681408004429
SM04368	SVZBL 2020 K11	ISO	100°	L	20	20	125	25	0.42	VBM.1103..	8681408004368
SM04443	SVZBR 2525 M11	ISO	100°	R	25	25	150	29	0.71	VBM.1103..	8681408004443
SM04382	SVZBL 2525 M11	ISO	100°	L	25	25	150	29	0.71	VBM.1103..	8681408004382
SM04641	SVZBL 1616 H16	ISO	100°	L	16	16	100	20	0.22	VBM.1604..	8681408004641
SM04733	SVZBR 1616 H16	ISO	100°	R	16	16	100	20	0.22	VBM.1604..	8681408004733
SM04474	SVZBR 2020 K16	ISO	100°	R	20	20	125	25	0.42	VBM.1604..	8681408004474
SM04658	SVZBL 2020 K16	ISO	100°	L	20	20	125	25	0.42	VBM.1604..	8681408004658

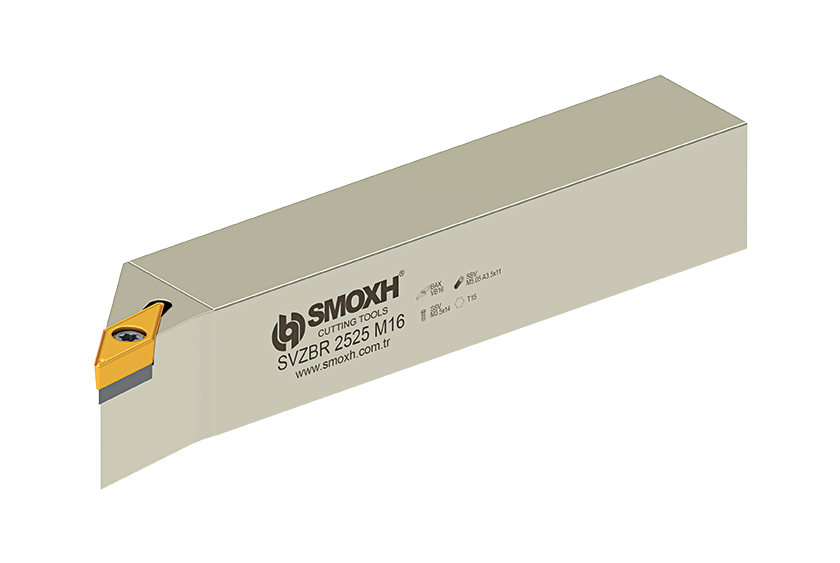

SM04498	SVZBR 2525 M16	ISO	100°	R	25	25	150	29	0.71	VBM.1604..	8681408004498
SM04672	SVZBL 2525 M16	ISO	100°	L	25	25	150	29	0.71	VBM.1604..	8681408004672
SM04689	SVZBR 3232 P16	ISO	100°	R	32	32	170	38	1.33	VBM.1604..	8681408004689
SM04702	SVZBL 3232 P16	ISO	100°	L	32	32	170	38	1.33	VBM.1604..	8681408004702

S System External Diameter Turning Tool - SVZBR/L (100)
