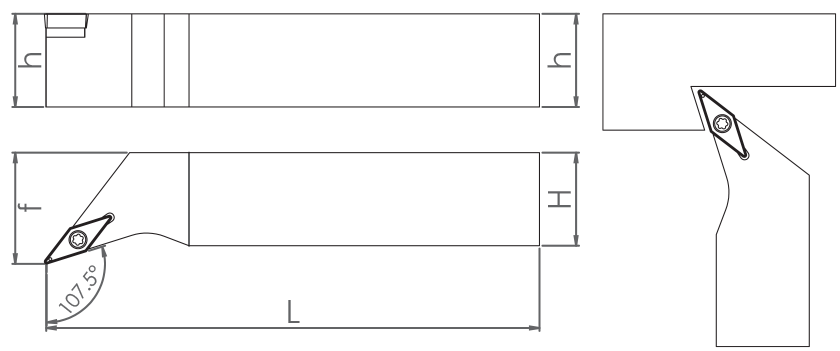

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	SVHBR/L (107.5)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM04344	SVHBR 1616 H11	ISO	107.5°	R	16	16	100	20	0.22	VBM.1103..	8681408004344
SM04399	SVHBL 1616 H11	ISO	107.5°	L	16	16	100	20	0.22	VBM.1103..	8681408004399
SM04535	SVHBR 1616 H16	ISO	107.5°	R	16	16	100	20	0.22	VBM.1604..	8681408004535
SM04726	SVHBL 1616 H16	ISO	107.5°	L	16	16	100	20	0.22	VBM.1604..	8681408004726
SM04450	SVHBR 2020 K11	ISO	107.5°	R	20	20	125	25	0.42	VBM.1103..	8681408004450
SM04467	SVHBL 2020 K16	ISO	107.5°	L	20	20	125	25	0.42	VBM.1604..	8681408004467
SM04375	SVHBR 2525 M11	ISO	107.5°	R	25	25	150	29	0.71	VBM.1103..	8681408004375
SM04412	SVHBL 2020 K11	ISO	107.5°	L	20	20	125	25	0.42	VBM.1103..	8681408004412
SM04573	SVHBR 2020 K16	ISO	107.5°	R	20	20	125	25	0.42	VBM.1604..	8681408004573
SM04436	SVHBL 2525 M11	ISO	107.5°	L	25	25	150	29	0.71	VBM.1103..	8681408004436
SM04665	SVHBR 2525 M16	ISO	107.5°	R	25	25	150	29	0.71	VBM.1604..	8681408004665
SM04481	SVHBL 2525 M16	ISO	107.5°	L	25	25	150	29	0.71	VBM.1604..	8681408004481
SM04719	SVHBR 3232 P16	ISO	107.5°	R	32	32	170	38	1.33	VBM.1604..	8681408004719
SM04696	SVHBL 3232 P16	ISO	107.5°	L	32	32	170	38	1.33	VBM.1604..	8681408004696

S System External Diameter Turning Tool - SVHBR/L (107.5)
