S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

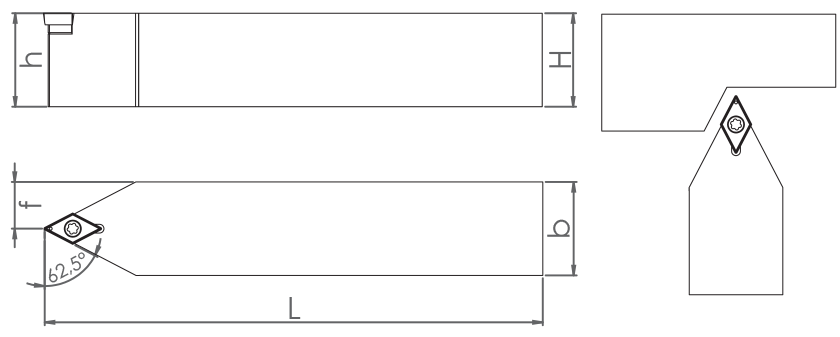

	SDNCN (62.5)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM02692	SDNCN 0808 E07	ISO	62.5°	N	8	8	70	4	0.11	DCM.0702..	8681408002692
SM02647	SDNCN 1010 E07	ISO	62.5°	N	10	10	70	5	0.11	DCM.0702..	8681408002647
SM02616	SDNCN 1212 F07	ISO	62.5°	N	12	12	80	6	0.11	DCM.0702..	8681408002616
SM02586	SDNCN 1616 H07	ISO	62.5°	N	16	16	100	8	0.22	DCM.0702..	8681408002586
SM37595	SDNCN 1212 F11	ISO	62.5°	N	12	12	80	6	0.11	DCM.11T3..	8681408037595
SM02890	SDNCN 1616 H11	ISO	62.5°	N	16	16	100	8	0.22	DCM.11T3..	8681408002890
SM02807	SDNCN 2020 K11	ISO	62.5°	N	20	20	125	10	0.42	DCM.11T3..	8681408002807

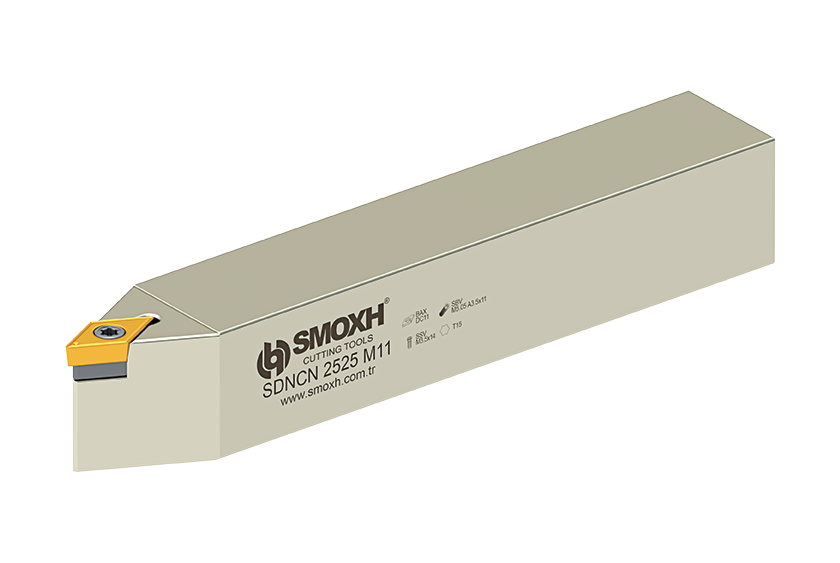

SM02845	SDNCN 2525 M11	ISO	62.5°	N	25	25	150	12.5	0.71	DCM.11T3..	8681408002845
SM02852	SDNCN 3232 P11	ISO	62.5°	N	32	32	170	16	1.33	DCM.11T3..	8681408002852

S System External Diameter Turning Tool - SDNCN (62.5)
