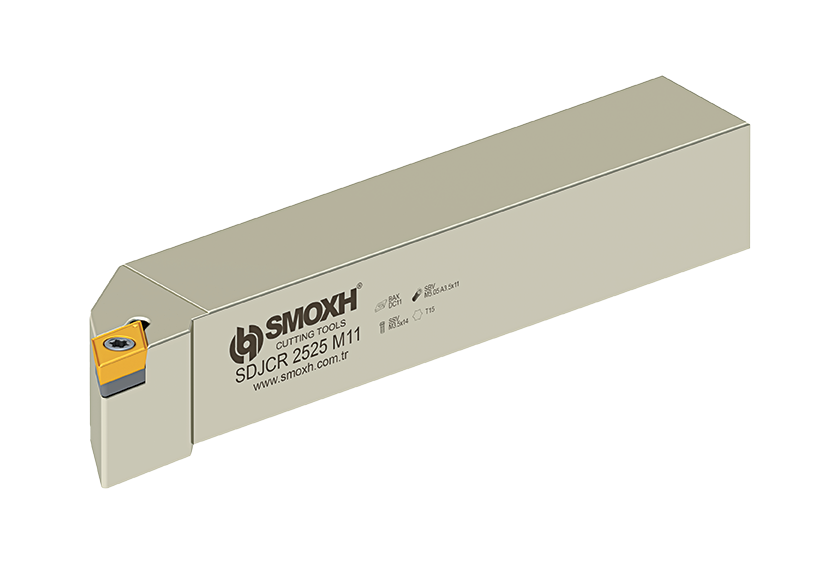

S System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

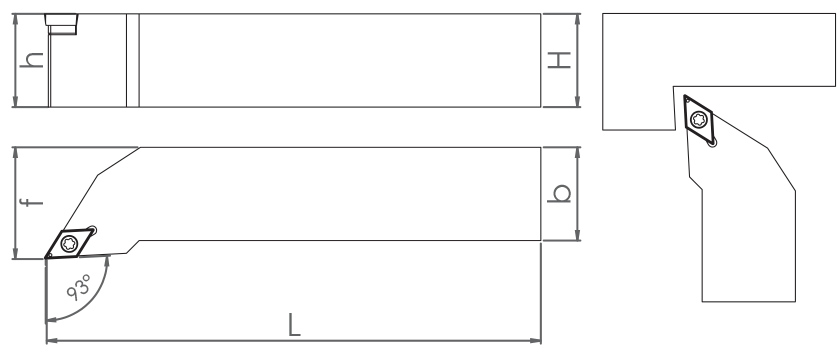

	SDJCR/L (93)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM02678	SDJCR 0808 E07	ISO	93°	R	8	8	70	10	0.11	DCM.0702..	8681408002678
SM02685	SDJCL 0808 E07	ISO	93°	L	8	8	70	10	0.11	DCM.0702..	8681408002685
SM02623	SDJCR 1010 E07	ISO	93°	R	10	10	70	12	0.11	DCM.0702..	8681408002623
SM02630	SDJCL 1010 E07	ISO	93°	L	10	10	70	12	0.11	DCM.0702..	8681408002630
SM02562	SDJCR 1212 F07	ISO	93°	R	12	12	80	15	0.11	DCM.0702..	8681408002562
SM02609	SDJCL 1212 F07	ISO	93°	L	12	12	80	15	0.11	DCM.0702..	8681408002609
SM02579	SDJCR 1616 H07	ISO	93°	R	16	16	100	20	0.22	DCM.0702..	8681408002579
SM02593	SDJCL 1616 H07	ISO	93°	L	16	16	100	20	0.22	DCM.0702..	8681408002593
SM38745	SDJCR 1212 F11	ISO	93°	R	12	12	80	15	0.11	DCM.11T3..	8681408038745
SM38738	SDJCL 1212 F11	ISO	93°	L	12	12	80	15	0.11	DCM.11T3..	8681408038738
SM02760	SDJCR 1616 H11	ISO	93°	R	16	16	100	20	0.22	DCM.11T3..	8681408002760
SM02777	SDJCL 1616 H11	ISO	93°	L	16	16	100	20	0.22	DCM.11T3..	8681408002777
SM02791	SDJCR 2020 K11	ISO	93°	R	20	20	125	25	0.42	DCM.11T3..	8681408002791
SM02784	SDJCL 2020 K11	ISO	93°	L	20	20	125	25	0.42	DCM.11T3..	8681408002784
SM02821	SDJCR 2525 M11	ISO	93°	R	25	25	150	29	0.71	DCM.11T3..	8681408002821
SM02838	SDJCL 2525 M11	ISO	93°	L	25	25	150	29	0.71	DCM.11T3..	8681408002838
SM02883	SDJCR 3232 P11	ISO	93°	R	32	32	170	38	1.33	DCM.11T3..	8681408002883
SM02869	SDJCL 3232 P11	ISO	93°	L	32	32	170	38	1.33	DCM.11T3..	8681408002869

S System External Diameter Turning Tool - SDJCR/L (93)
