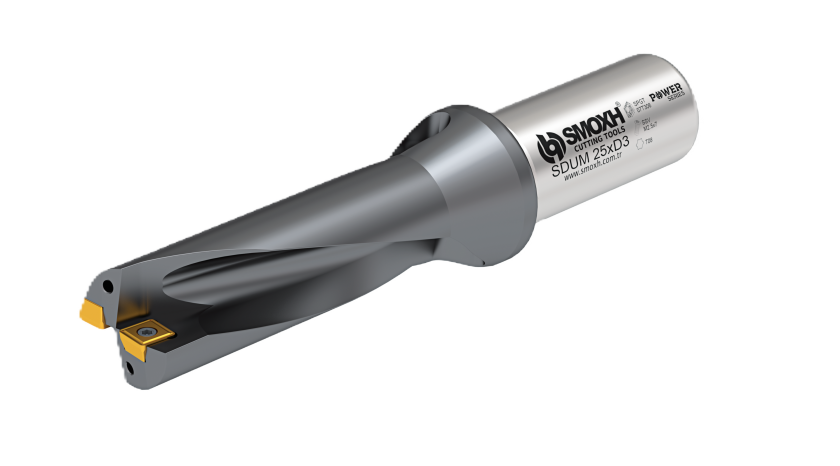

    U-Drill - SDUM Dx3 - SPGT

    SDUM Dx3 - SPGT

    U-Drill

    U-Drill

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      SDUM Dx3 - SPGT U-Drill U-Drill Diamond

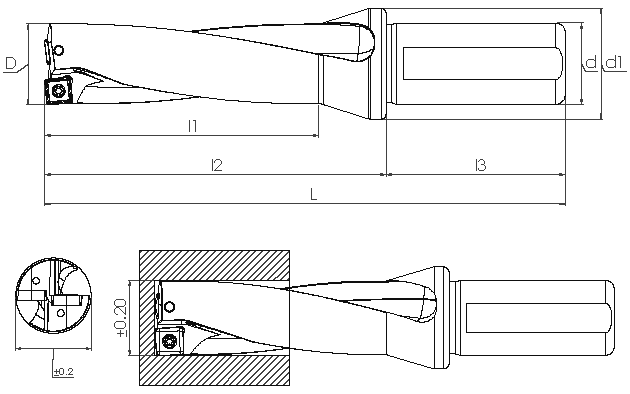

    Brand    		 D d d1 L I1 I2 I3 U-Drill
    SM40595 SDUM 13XD3 SPGT 050204 ZCC 13 20 25 107 39 57 50 SPGT 050204
    SM40601 SDUM 13.5XD3 SPGT 050204 ZCC 13.5 20 25 110 40.5 60 50 SPGT 050204
    SM40618 SDUM 14XD3 SPGT 050204 ZCC 14 20 25 110 42 60 50 SPGT 050204
    SM40625 SDUM 14.5XD3 SPGT 050204 ZCC 14.5 20 25 113 43.5 63 50 SPGT 050204
    SM40632 SDUM 15XD3 SPGT 050204 ZCC 15 20 25 113 45 63 50 SPGT 050204
    SM40649 SDUM 15.5XD3 SPGT 060204 ZCC 15.5 20 25 118 46.5 68 50 SPGT 060204
    SM40656 SDUM 16XD3 SPGT 060204 ZCC 16 25 34 124 48 68 56 SPGT 060204
    SM40663 SDUM 16.5XD3 SPGT 060204 ZCC 16.5 25 34 127 49.5 71 56 SPGT 060204
    SM40670 SDUM 17XD3 SPGT 060204 ZCC 17 25 34 127 51 71 56 SPGT 060204
    SM40687 SDUM 17.5XD3 SPGT 060204 ZCC 17.5 25 34 131 52.5 75 56 SPGT 060204
    SM40694 SDUM 18XD3 SPGT 060204 ZCC 18 25 34 131 54 75 56 SPGT 060204
    SM40700 SDUM 18.5XD3 SPGT 060204 ZCC 18.5 25 34 134 55.5 78 56 SPGT 060204
    SM40717 SDUM 19XD3 SPGT 060204 ZCC 19 25 34 134 57 78 56 SPGT 060204
    SM40724 SDUM 19.5XD3 SPGT 060204 ZCC 19.5 25 34 139 58.5 83 56 SPGT 060204
    SM40731 SDUM 20XD3 SPGT 060204 ZCC 20 25 34 139 60 83 56 SPGT 060204
    SM40748 SDUM 20.5XD3 SPGT 060204 ZCC 20.5 25 34 142 61.5 88 56 SPGT 060204
    SM40755 SDUM 21XD3 SPGT 060204 ZCC 21 25 34 142 63 88 56 SPGT 060204
    SM40762 SDUM 21.5XD3 SPGT 060204 ZCC 21.5 25 34 145 64.5 89 56 SPGT 060204
    SM40779 SDUM 22XD3 SPGT 07T308 ZCC 22 25 34 145 66 89 56 SPGT 07T308
    SM40786 SDUM 22.5XD3 SPGT 07T308 ZCC 22.5 25 34 150 67.5 94 56 SPGT 07T308
    SM40793 SDUM 23XD3 SPGT 07T308 ZCC 23 25 34 150 69 94 56 SPGT 07T308
    SM40809 SDUM 23.5XD3 SPGT 07T308 ZCC 23.5 25 34 154 70.5 98 56 SPGT 07T308
    SM40816 SDUM 24XD3 SPGT 07T308 ZCC 24 25 34 154 72 98 56 SPGT 07T308
    SM40823 SDUM 24.5XD3 SPGT 07T308 ZCC 24.5 25 34 158 73.5 102 56 SPGT 07T308
    SM40830 SDUM 25XD3 SPGT 07T308 ZCC 25 25 34 158 75 102 56 SPGT 07T308
    SM40854 SDUM 26XD3 SPGT 07T308 ZCC 26 25 34 161 78 105 56 SPGT 07T308
    SM40878 SDUM 27XD3 SPGT 07T308 ZCC 27 25 34 164 81 108 56 SPGT 07T308
    SM40892 SDUM 28XD3 SPGT 090408 ZCC 28 25 34 168 84 112 56 SPGT 090408
    SM40915 SDUM 29XD3 SPGT 090408 ZCC 29 25 34 171 87 115 56 SPGT 090408
    SM40939 SDUM 30XD3 SPGT 090408 ZCC 30 32 44 171 90 111 60 SPGT 090408
    SM40946 SDUM 31XD3 SPGT 090408 ZCC 31 32 44 175 93 115 60 SPGT 090408
    SM40953 SDUM 32XD3 SPGT 090408 ZCC 32 32 44 178 96 118 60 SPGT 090408
    SM40960 SDUM 33XD3 SPGT 090408 ZCC 33 32 44 182 99 122 60 SPGT 090408
    SM40977 SDUM 34XD3 SPGT 110408 ZCC 34 32 44 185 102 125 60 SPGT 110408
    SM40984 SDUM 35XD3 SPGT 110408 ZCC 35 32 44 189 105 129 60 SPGT 110408
    SM40991 SDUM 36XD3 SPGT 110408 ZCC 36 32 44 193 108 133 60 SPGT 110408
    SM41004 SDUM 37XD3 SPGT 110408 ZCC 37 32 44 197 111 136 60 SPGT 110408
    SM41011 SDUM 38XD3 SPGT 110408 ZCC 38 32 44 201 114 141 60 SPGT 110408
    SM41028 SDUM 39XD3 SPGT 110408 ZCC 39 32 44 204 117 144 60 SPGT 110408
    SM41035 SDUM 40XD3 SPGT 110408 ZCC 40 32 44 208 120 148 60 SPGT 110408
