U-Drill

Technical Specifications

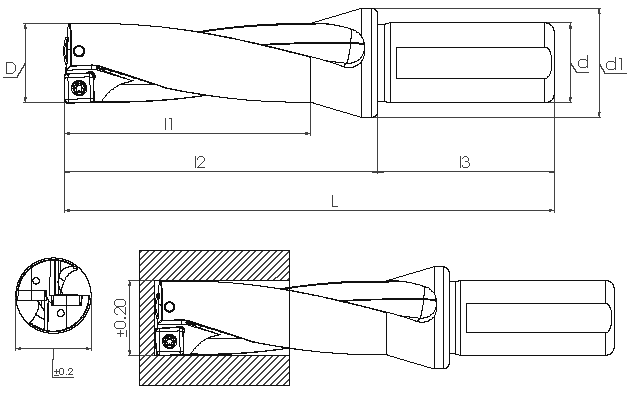

Ordering Code	Item Designation									Master Insert
	SDUM Dx5 - SPMT/XOMT (PD)	Diamond Brand	D	d	d1	L	I1	I2	I3
SM30787	SDUM 13XD5 SP-XO04	KRLY	13	20	25	130	65	80	50	SPMT(PD)040204 XOMT(PD)040204
SM30787	SDUM 13XD5 SP-XO04	KRLY	13	20	25	130	65	80	50	SPMT(PD)040204 XOMT(PD)040204
SM30794	SDUM 14XD5 SP-XO05	KRLY	14	20	25	135	70	85	50	SPMT(PD)050204 XOMT(PD)050204
SM30800	SDUM 15XD5 SP-XO05	KRLY	15	20	25	140	75	90	50	SPMT(PD)050204 XOMT(PD)050204
SM30817	SDUM 16XD5 SP-XO05	KRLY	16	25	34	155	80	100	56	SPMT(PD)050204 XOMT(PD)050204
SM30824	SDUM 17XD5 SP-XO06	KRLY	17	25	34	160	85	105	56	SPMT(PD) 060205 XOMT(PD)060204
SM30831	SDUM 18XD5 SP-XO06	KRLY	18	25	34	165	90	111	56	SPMT(PD) 060205 XOMT(PD)060204
SM30848	SDUM 19XD5 SP-XO06	KRLY	19	25	34	170	95	116	56	SPMT(PD) 060205 XOMT(PD)060204
SM30855	SDUM 20XD5 SP-XO07	KRLY	20	25	34	175	100	120	56	SPMT(PD) 07T208 XOMT(PD) 07T025
SM30862	SDUM 21XD5 SP-XO07	KRLY	21	25	34	180	105	124	56	SPMT(PD) 07T208 XOMT(PD) 07T025
SM30879	SDUM 22XD5 SP-XO07	KRLY	22	25	34	185	110	129	56	SPMT(PD) 07T208 XOMT(PD) 07T025
SM30886	SDUM 23XD5 SP-XO07	KRLY	23	25	34	190	115	135	56	SPMT(PD) 07T208 XOMT(PD) 07T025
SM30893	SDUM 24XD5 SP-XO09	KRLY	24	25	34	195	120	140	56	SPMT(PD) 090308 XOMT(PD)090305
SM30909	SDUM 25XD5 SP-XO09	KRLY	25	25	34	200	125	144	56	SPMT(PD) 090308 XOMT(PD)090305
SM30916	SDUM 26XD5 SP-XO09	KRLY	26	25	34	205	130	149	56	SPMT(PD) 090308 XOMT(PD)090305
SM30923	SDUM 27XD5 SP-XO09	KRLY	27	25	34	210	135	155	56	SPMT(PD) 090308 XOMT(PD)090305
SM30930	SDUM 28XD5 SP-XO09	KRLY	28	25	34	215	140	160	56	SPMT(PD) 090308 XOMT(PD)090305
SM30947	SDUM 29XD5 SP-XO09	KRLY	29	25	34	220	145	165	56	SPMT(PD) 090308 XOMT(PD)090305
SM50440	SDUM 30XD5 SP-XO11	KRLY	30	32	44	231	150	170	60	SPMT(PD) 11T308 XOMT(PD) 11T306
