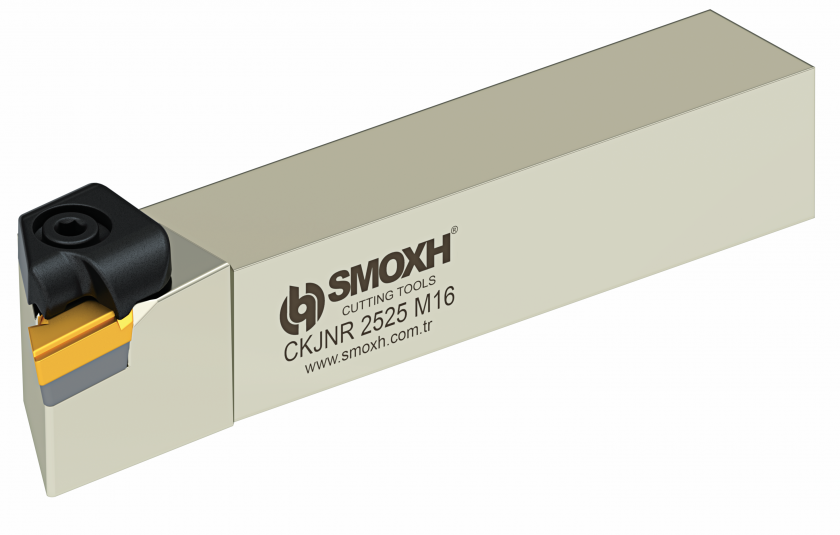

C System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

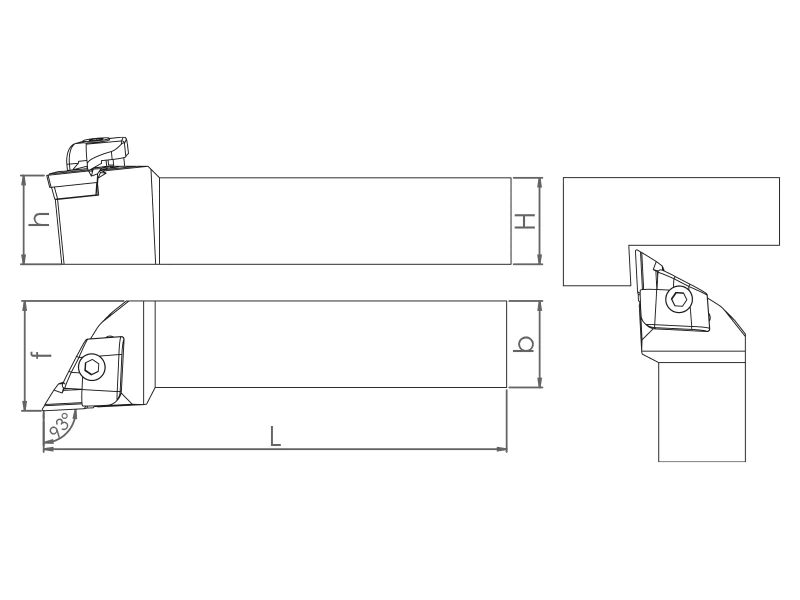

	CKJNR/L (93)	Diamond Brand	h=H	b	L	f	Direction	Approach Angle	Weight (Kg)
SM02081	CKJNR 2020 K16	ISO	20	20	125	25	Sağ	93°	0.47	KNUX/R 1604..	8681408002081
SM02128	CKJNL 2020 K16	ISO	20	20	125	25	Sol	93°	0.47	KNUX/L 1604..	8681408002128
SM02098	CKJNR 2525 M16	ISO	25	25	150	31	Sağ	93°	0.79	KNUX/R 1604..	8681408002098
SM02104	CKJNL 2525 M16	ISO	25	25	150	31	Sol	93°	0.79	KNUX/L 1604..	8681408002104
SM02111	CKJNR 3232 P16	ISO	32	32	170	37	Sağ	93°	1.4	KNUX/R 1604..	8681408002111
SM02135	CKJNL 3232 P16	ISO	32	32	170	37	Sol	93°	1.4	KNUX/L 1604..	8681408002135
SM24663	CKJNR 4040 S16	ISO	40	40	250	46	Sağ	93°	3.14	KNUX/R 1604..	8681408024663
SM25363	CKJNL 4040 S16	ISO	40	40	250	46	Sol	93°	3.14	KNUX/L 1604..	8681408025363

C System External Diameter Turning Tool - CKJNR/L (93)
