T System External Diameter Turning Tool - TDNNN (62.5)

TDNNN (62.5)

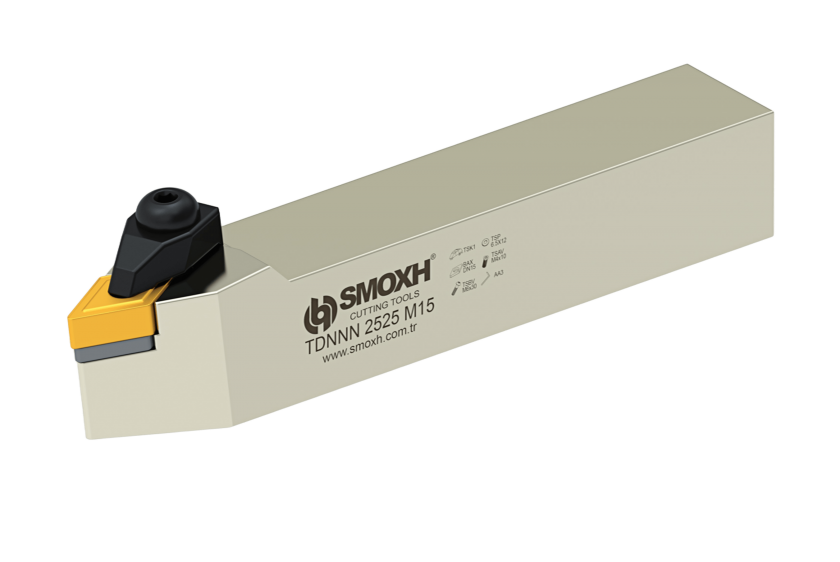

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

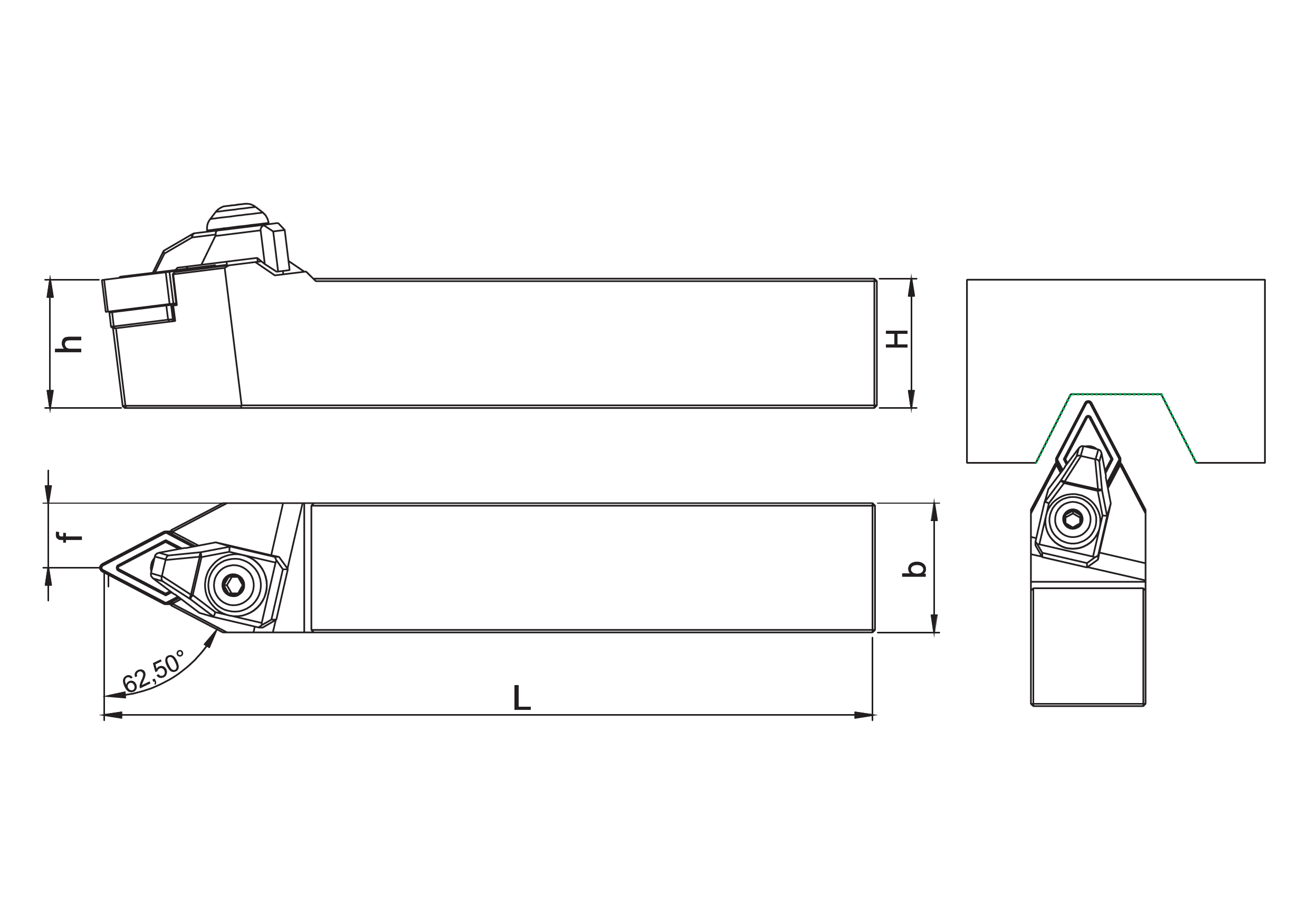

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TDNNN (62.5) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00414 TDNNN 1616 H11 ISO 62.5° N 16 16 100 8 0.26 DNM.1104.. 8681408000414
SM00384 TDNNN 2020 K11 ISO 62.5° N 20 20 125 10 0.46 DNM.1104.. 8681408000384
SM00391 TDNNN 2525 M11 ISO 62.5° N 25 25 150 12.5 0.79 DNM.1104.. 8681408000391
SM00452 TDNNN 2020 K15 ISO 62.5° N 20 20 125 10 0.46 DNM.1506.. 8681408000452
SM00476 TDNNN 2525 M15 ISO 62.5° N 25 25 150 12.5 0.79 DNM.1506.. 8681408000476
SM00445 TDNNN 3232 P15 ISO 62.5° N 32 32 170 16 1.38 DNM.1506.. 8681408000445
SM00537 TDNNN 4040 S15 ISO 62.5° N 20 20 125 10 3.12 DNM.1506.. 8681408000537
SM34013 TDNNN 2020 K1504 ISO 62.5° N 25 25 150 12.5 0.46 DNM.1504.. 8681408034013
SM34020 TDNNN 2525 M1504 ISO 62.5° N 32 32 170 12.5 0.79 DNM.1504.. 8681408034020
SM34037 TDNNN 3232 P1504 ISO 62.5° N 40 40 250 20 1.38 DNM.1504.. 8681408034037
