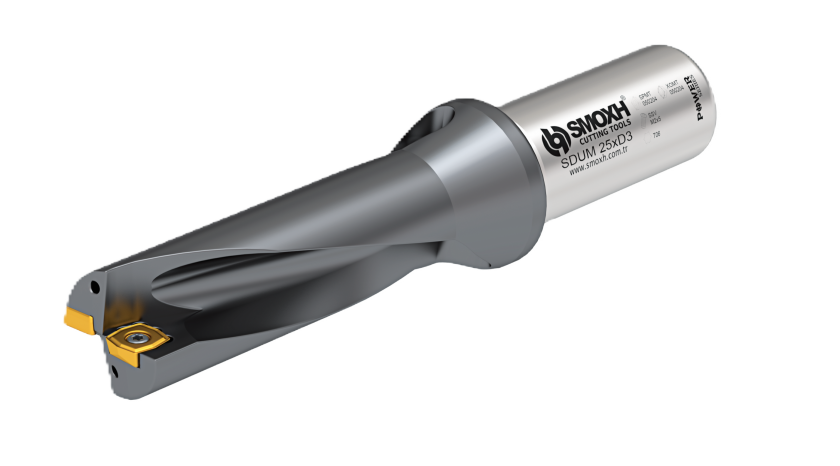

    U-Drill - SDUM Dx3 - SPMT/XOMT (PD)

    SDUM Dx3 - SPMT/XOMT (PD)

    U-Drill

    U-Drill

    Technical Specifications

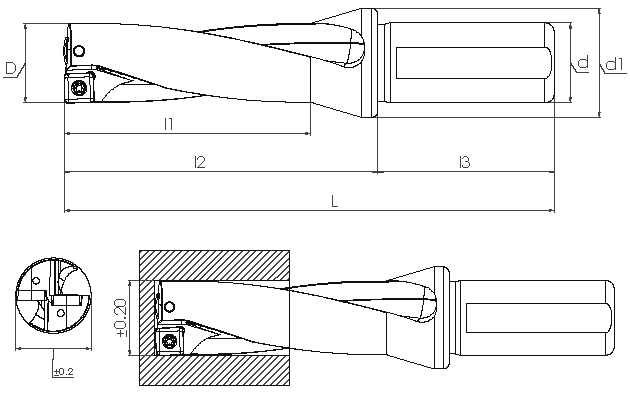

    Ordering Code Item Designation Dimensions Master Insert Barcode
      SDUM Dx3 - SPMT/XOMT (PD) U-Drill U-Drill Diamond
    Brand    		 D d d1 L I1 I2 I3 U-Drill
    SM30039 SDUM 12.5XD3 SP-XO04 KRLY 12.5 20 25 107 37 57 50 SPMT(PD)040204 XOMT(PD)040204
    SM30046 SDUM 13XD3 SP-XO04 KRLY 13 20 25 107 39 57 50 SPMT(PD)040204 XOMT(PD)040204
    SM30053 SDUM 13.5XD3 SP-XO04 KRLY 13.5 20 25 110 40.5 60 50 SPMT(PD)040204 XOMT(PD)040204
    SM37519 SDUM 14XD3 SP-XO05 KRLY 14 20 25 110 42 60 50 SPMT(PD)050204 XOMT(PD)050204
    SM30077 SDUM 14.5XD3 SP-XO05 KRLY 14.5 20 25 113 43.5 63 50 SPMT(PD)050204 XOMT(PD)050204
    SM37526 SDUM 15XD3 SP-XO05 KRLY 15 20 25 113 45 63 50 SPMT(PD)050204 XOMT(PD)050204
    SM30091 SDUM 15.5XD3 SP-XO05 KRLY 15.5 20 25 118 46.5 68 50 SPMT(PD)050204 XOMT(PD)050204
    SM38899 SDUM 16XD3 SP-XO05 KRLY 16 25 34 124 48 68 56 SPMT(PD)050204 XOMT(PD)050204
    SM30114 SDUM 16.5XD3 SP-XO06 KRLY 16.5 25 34 127 49.5 71 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30121 SDUM 17XD3 SP-XO06 KRLY 17 25 34 127 51 71 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30510 SDUM 17.5XD3 SP-XO06 KRLY 17.5 25 34 131 52.5 75 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30145 SDUM 18XD3 SP-XO06 KRLY 18 25 34 131 54 75 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30152 SDUM 18.5XD3 SP-XO06 KRLY 18.5 25 34 134 55.5 78 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30169 SDUM 19XD3 SP-XO06 KRLY 19 25 34 134 57 78 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30176 SDUM 19.5XD3 SP-XO06 KRLY 19.5 25 34 139 58.5 83 56 SPMT(PD) 060205 XOMT(PD)060204
    SM30183 SDUM 20XD3 SP-XO07 KRLY 20 25 34 139 60 83 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30190 SDUM 20.5XD3 SP-XO07 KRLY 20.5 25 34 142 61.5 88 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30343 SDUM 21XD3 SP-XO07 KRLY 21 25 34 142 63 88 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30206 SDUM 21.5XD3 SP-XO07 KRLY 21.5 25 34 145 64.5 89 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30213 SDUM 22XD3 SP-XO07 KRLY 22 25 34 145 66 89 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30220 SDUM 22.5XD3 SP-XO07 KRLY 22.5 25 34 150 67.5 94 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30237 SDUM 23XD3 SP-XO07 KRLY 23 25 34 150 69 94 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30244 SDUM 23.5XD3 SP-XO07 KRLY 23.5 25 34 154 70.5 98 56 SPMT(PD) 07T208 XOMT(PD) 07T025
    SM30251 SDUM 24XD3 SP-XO09 KRLY 24 25 34 154 72 98 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30268 SDUM 24.5XD3 SP-XO09 KRLY 24.5 25 34 158 73.5 102 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30275 SDUM 25XD3 SP-XO09 KRLY 25 25 34 158 75 102 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30282 SDUM 25.5XD3 SP-XO09 KRLY 25.5 25 34 161 76.5 105 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30299 SDUM 26XD3 SP-XO09 KRLY 26 25 34 161 78 105 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30305 SDUM 26.5XD3 SP-XO09 KRLY 26.5 25 34 164 79.5 108 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30312 SDUM 27XD3 SP-XO09 KRLY 27 25 34 164 81 108 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30329 SDUM 27.5XD3 SP-XO09 KRLY 27.5 25 34 168 82.5 112 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30336 SDUM 28XD3 SP-XO09 KRLY 28 25 34 168 84 112 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30374 SDUM 28.5XD3 SP-XO09 KRLY 28.5 25 34 171 85.5 115 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30367 SDUM 29XD3 SP-XO09 KRLY 29 25 34 171 87 115 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30381 SDUM 29.5XD3 SP-XO09 KRLY 29.5 25 34 177 88.5 111 56 SPMT(PD) 090308 XOMT(PD)090305
    SM30398 SDUM 30XD3 SP-XO11 KRLY 30 32 44 171 90 111 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59146 SDUM 31XD3 SP-XO11 KRLY 31 32 44 175 93 115 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59160 SDUM 32XD3 SP-XO11 KRLY 32 32 44 178 96 118 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59184 SDUM 33XD3 SP-XO11 KRLY 33 32 44 182 99 122 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59207 SDUM 34XD3 SP-XO11 KRLY 34 32 44 185 102 125 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59221 SDUM 35XD3 SP-XO11 KRLY 35 32 44 189 105 129 60 SPMT(PD) 11T308 XOMT(PD) 11T306
    SM59245 SDUM 36XD3 SP-XO13 KRLY 36 32 44 193 108 133 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59269 SDUM 37XD3 SP-XO13 KRLY 37 32 44 197 111 136 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59283 SDUM 38XD3 SP-XO13 KRLY 38 32 44 201 114 141 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59290 SDUM 39XD3 SP-XO13 KRLY 39 32 44 204 117 144 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59306 SDUM 40XD3 SP-XO13 KRLY 40 32 44 208 120 148 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59313 SDUM 41XD3 SP-XO13 KRLY 41 32 44 212 123 152 60 SPMT(PD) 130410 XOMT(PD) 130416
    SM59320 SDUM 42XD3 SP-XO13 KRLY 42 32 44 215 126 155 60 SPMT(PD) 130410 XOMT(PD) 130416
