U-Drill

Ordering Code	Item Designation									Master Insert

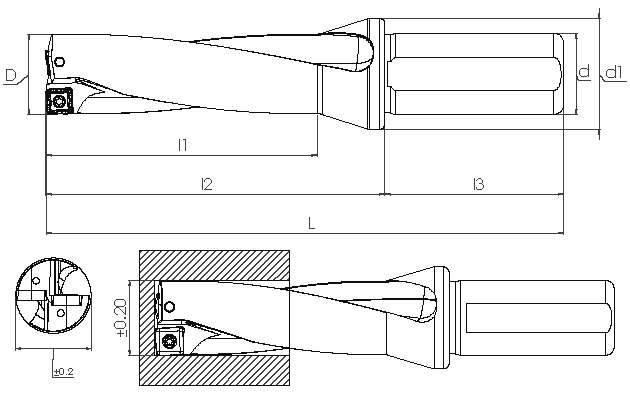

	SDUM Dx5 - SOMT	Diamond Brand	D	d	d1	L	I1	I2	I3
SM42537	SDUM 14XD5 SOMT 050204	TGTC	14	20	25	135	70	85	50	SOMT 050204
SM42544	SDUM 15XD5 SOMT 050204	TGTC	15	20	25	140	75	90	50	SOMT 050204
SM42551	SDUM 16XD5 SOMT 050204	TGTC	16	25	34	155	80	100	56	SOMT 050204
SM42568	SDUM 17XD5 SOMT 060204	TGTC	17	25	34	160	85	105	56	SOMT 060204
SM42575	SDUM 18XD5 SOMT 060204	TGTC	18	25	34	165	90	111	56	SOMT 060204
SM42582	SDUM 19XD5 SOMT 060204	TGTC	19	25	34	170	95	116	56	SOMT 060204
SM42599	SDUM 20XD5 SOMT 070306	TGTC	20	25	34	175	100	120	56	SOMT 070306
SM42605	SDUM 21XD5 SOMT 070306	TGTC	21	25	34	180	105	124	56	SOMT 070306
SM42612	SDUM 22XD5 SOMT 070306	TGTC	22	25	34	185	110	129	56	SOMT 070306
SM42629	SDUM 23XD5 SOMT 08T306	TGTC	23	25	34	190	115	135	56	SOMT 08T306
SM42636	SDUM 24XD5 SOMT 08T306	TGTC	24	25	34	195	120	140	56	SOMT 08T306
SM42643	SDUM 25XD5 SOMT 08T306	TGTC	25	25	34	200	125	144	56	SOMT 08T306
SM42650	SDUM 26XD5 SOMT 08T306	TGTC	26	25	34	205	130	149	56	SOMT 08T306
SM42667	SDUM 27XD5 SOMT 09T308	TGTC	27	25	34	210	135	155	56	SOMT 09T308
SM42674	SDUM 28XD5 SOMT 09T308	TGTC	28	25	34	215	140	160	56	SOMT 09T308
SM42681	SDUM 29XD5 SOMT 09T308	TGTC	29	25	34	220	145	165	56	SOMT 09T308
SM42698	SDUM 30XD5 SOMT 09T308	TGTC	30	32	44	231	150	170	60	SOMT 09T308

U-Drill - SDUM Dx5 - SOMT
