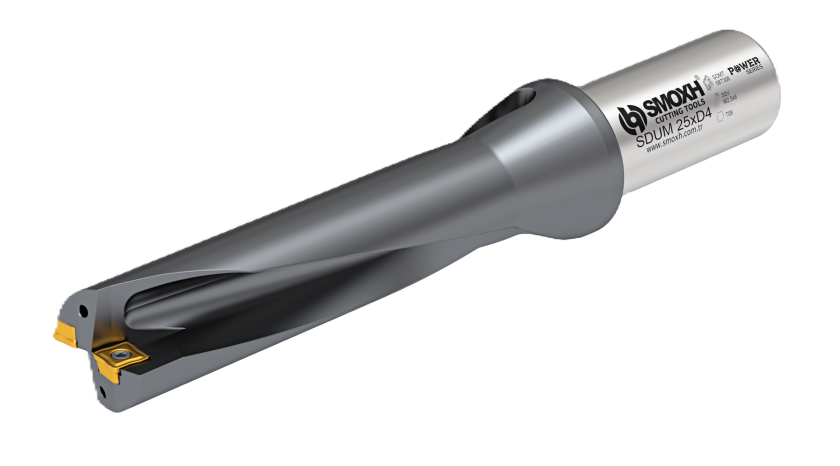

U-Drill

Ordering Code	Item Designation									Master Insert

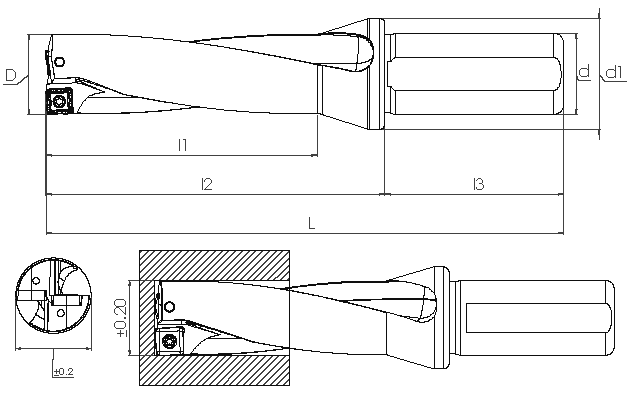

	SDUM Dx4 - SOMT	Diamond Brand	D	d	d1	L	I1	I2	I3
SM42360	SDUM 14XD4 SOMT 050204	TGTC	14	20	25	124	56	73	50	SOMT 050204
SM42377	SDUM 15XD4 SOMT 050204	TGTC	15	20	25	128	60	78	50	SOMT 050204
SM42384	SDUM 16XD4 SOMT 050204	TGTC	16	25	34	140	64	84	56	SOMT 050204
SM42391	SDUM 17XD4 SOMT 060204	TGTC	17	25	34	144	68	88	56	SOMT 060204
SM42407	SDUM 18XD4 SOMT 060204	TGTC	18	25	34	149	72	93	56	SOMT 060204
SM42414	SDUM 19XD4 SOMT 060204	TGTC	19	25	34	153	76	97	56	SOMT 060204
SM42421	SDUM 20XD4 SOMT 070306	TGTC	20	25	34	159	80	103	56	SOMT 070306
SM42438	SDUM 21XD4 SOMT 070306	TGTC	21	25	34	163	84	107	56	SOMT 070306
SM42445	SDUM 22XD4 SOMT 070306	TGTC	22	25	34	167	88	111	56	SOMT 070306
SM42452	SDUM 23XD4 SOMT 08T306	TGTC	23	25	34	173	92	117	56	SOMT 08T306
SM42469	SDUM 24XD4 SOMT 08T306	TGTC	24	25	34	178	96	122	56	SOMT 08T306
SM42476	SDUM 25XD4 SOMT 08T306	TGTC	25	25	34	183	100	127	56	SOMT 08T306
SM42483	SDUM 26XD4 SOMT 08T306	TGTC	26	25	34	187	104	131	56	SOMT 08T306
SM42490	SDUM 27XD4 SOMT 09T308	TGTC	27	25	34	191	108	135	56	SOMT 09T308
SM42506	SDUM 28XD4 SOMT 09T308	TGTC	28	25	34	196	112	140	56	SOMT 09T308
SM42513	SDUM 29XD4 SOMT 09T308	TGTC	29	25	34	200	116	144	56	SOMT 09T308
SM42520	SDUM 30XD4 SOMT 09T308	TGTC	30	32	44	201	120	141	60	SOMT 09T308

U-Drill - SDUM Dx4 - SOMT
