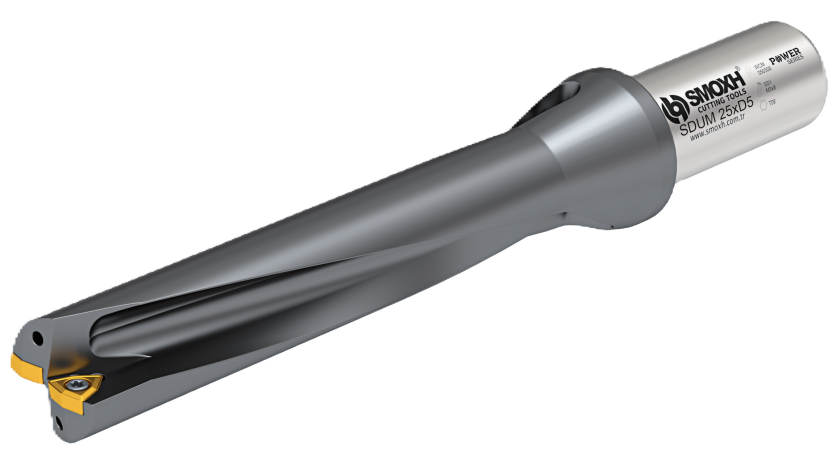

    U-Drill - SDUM Dx5 - WCM.

    SDUM Dx5 - WCM.

    U-Drill

    U-Drill

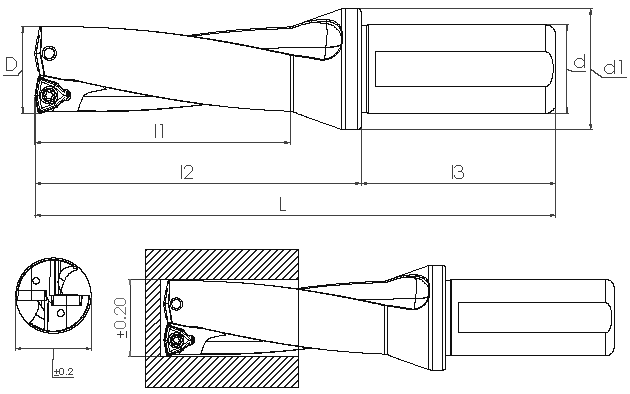

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      SDUM Dx5 - WCM. Diamond
    Brand    		 D d d1 L I1 I2 I3 U-Drill
    SM17481 SDUM 16XD5 WCM.030208 ISO 16 25 34 155 80 100 56 WCM.030208
    SM17498 SDUM 17XD5 WCM.030208 ISO 17 25 34 160 85 105 56 WCM.030208
    SM17504 SDUM 18XD5 WCM.030208 ISO 18 25 34 165 90 111 56 WCM.030208
    SM17511 SDUM 19XD5 WCM.030208 ISO 19 25 34 170 95 116 56 WCM.030208
    SM17542 SDUM 20XD5 WCM.040208 ISO 20 25 34 175 100 120 56 WCM.040208
    SM17559 SDUM 21XD5 WCM.040208 ISO 21 25 34 180 105 124 56 WCM.040208
    SM17566 SDUM 22XD5 WCM.040208 ISO 22 25 34 185 110 129 56 WCM.040208
    SM17603 SDUM 23XD5 WCM.040208 ISO 23 25 34 190 115 135 56 WCM.040208
    SM17610 SDUM 24XD5 WCM.050308 ISO 24 25 34 195 120 140 56 WCM.050308
    SM17627 SDUM 25XD5 WCM.050308 ISO 25 25 34 200 125 144 56 WCM.050308
    SM17634 SDUM 26XD5 WCM.050308 ISO 26 25 34 205 130 149 56 WCM.050308
    SM17641 SDUM 27XD5 WCM.050308 ISO 27 25 34 210 135 155 56 WCM.050308
    SM17702 SDUM 28XD5 WCM.050308 ISO 28 25 34 215 140 160 56 WCM.050308
    SM17719 SDUM 29XD5 WCM.050308 ISO 29 25 34 220 145 165 56 WCM.050308
    SM17733 SDUM 30XD5 WCM.06T308 ISO 30 32 44 231 150 170 60 WCM.06T308
    SM26162 SDUM 31XD5 WCM.06T308 ISO 31 32 44 236 155 173 60 WCM.06T308
    SM26179 SDUM 32XD5 WCM.06T308 ISO 32 32 44 241 160 180 60 WCM.06T308
    SM26186 SDUM 33XD5 WCM.06T308 ISO 33 32 44 246 165 185 60 WCM.06T308
    SM26193 SDUM 34XD5 WCM.06T308 ISO 34 32 44 251 170 190 60 WCM.06T308
    SM26209 SDUM 35XD5 WCM.06T308 ISO 35 32 44 256 175 195 60 WCM.06T308
    SM26216 SDUM 36XD5 WCM.06T308 ISO 36 32 44 261 180 200 60 WCM.06T308
    SM26223 SDUM 37XD5 WCM.06T308 ISO 37 32 44 266 185 205 60 WCM.06T308
    SM26230 SDUM 38XD5 WCM.06T308 ISO 38 32 44 271 190 210 60 WCM.06T308
    SM26247 SDUM 39XD5 WCM.06T308 ISO 39 32 44 276 195 215 60 WCM.06T308
    SM26254 SDUM 40XD5 WCM.06T308 ISO 40 32 44 281 200 220 60 WCM.06T308
