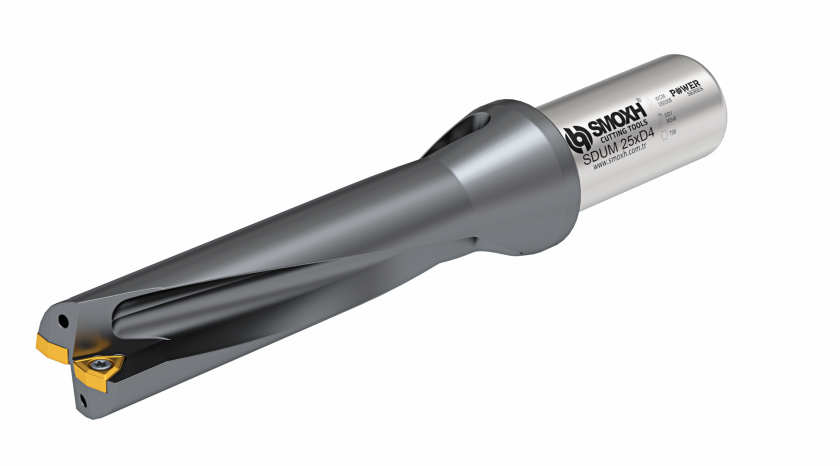

U-Drill

Technical Specifications

Ordering Code	Item Designation	Dimensions								Master Insert

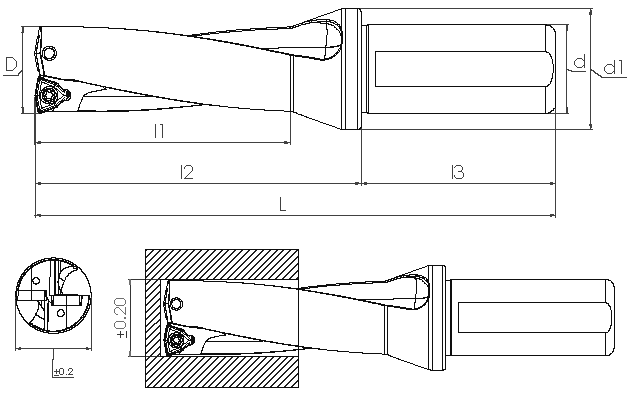

	SDUM Dx4 - WCM.	Diamond Brand	D	d	d1	L	I1	I2	I3
SM16712	SDUM 16XD4 WCM.030208	ISO	16	25	34	140	64	84	56	WCM.030208
SM17887	SDUM 16.5XD4 WCM.030208	ISO	16.5	25	34	144	66	84	56	WCM.030208
SM16729	SDUM 17XD4 WCM.030208	ISO	17	25	34	144	68	88	56	WCM.030208
SM17894	SDUM 17.5XD4 WCM.030208	ISO	17.5	25	34	149	70	88	56	WCM.030208
SM16705	SDUM 18XD4 WCM.030208	ISO	18	25	34	149	72	93	56	WCM.030208
SM17900	SDUM 18.5XD4 WCM.030208	ISO	18.5	25	34	153	74	93	56	WCM.030208
SM16736	SDUM 19XD4 WCM.030208	ISO	19	25	34	153	76	97	56	WCM.030208
SM17917	SDUM 19.5XD4 WCM.030208	ISO	19.5	25	34	159	78	97	56	WCM.030208
SM16743	SDUM 20XD4 WCM.040208	ISO	20	25	34	159	80	103	56	WCM.040208
SM17863	SDUM 20.5XD4 WCM.040208	ISO	20.5	25	34	163	82	103	56	WCM.040208
SM16750	SDUM 21XD4 WCM.040208	ISO	21	25	34	163	84	107	56	WCM.040208
SM17924	SDUM 21.5XD4 WCM.040208	ISO	21.5	25	34	167	86	107	56	WCM.040208
SM16767	SDUM 22XD4 WCM.040208	ISO	22	25	34	167	88	111	56	WCM.040208
SM17870	SDUM 22.5XD4 WCM.040208	ISO	22.5	25	34	173	90	111	56	WCM.040208
SM16774	SDUM 23XD4 WCM.040208	ISO	23	25	34	173	92	117	56	WCM.040208
SM17931	SDUM 23.5XD4 WCM.040208	ISO	23.5	25	34	178	94	117	56	WCM.040208
SM16781	SDUM 24XD4 WCM.050308	ISO	24	25	34	178	96	122	56	WCM.050308
SM17948	SDUM 24.5XD4 WCM.050308	ISO	24.5	25	34	183	98	122	56	WCM.050308
SM16798	SDUM 25XD4 WCM.050308	ISO	25	25	34	183	100	127	56	WCM.050308
SM17955	SDUM 25.5XD4 WCM.050308	ISO	25.5	25	34	187	102	127	56	WCM.050308
SM16804	SDUM 26XD4 WCM.050308	ISO	26	25	34	187	104	131	56	WCM.050308
SM17962	SDUM 26.5XD4 WCM.050308	ISO	26.5	25	34	191	106	131	56	WCM.050308
SM16811	SDUM 27XD4 WCM.050308	ISO	27	25	34	191	108	135	56	WCM.050308
SM17979	SDUM 27.5XD4 WCM.050308	ISO	27.5	25	34	196	110	135	56	WCM.050308
SM16828	SDUM 28XD4 WCM.050308	ISO	28	25	34	196	112	140	56	WCM.050308
SM17986	SDUM 28.5XD4 WCM.050308	ISO	28.5	25	34	200	114	140	56	WCM.050308
SM16835	SDUM 29XD4 WCM.050308	ISO	29	25	34	200	116	144	56	WCM.050308
SM17993	SDUM 29.5XD4 WCM.050308	ISO	29.5	25	34	202	118	144	56	WCM.050308
SM16842	SDUM 30XD4 WCM.06T308	ISO	30	32	44	201	120	141	60	WCM.06T308
SM16859	SDUM 31XD4 WCM.06T308	ISO	31	32	44	206	124	145	60	WCM.06T308
SM16866	SDUM 32XD4 WCM.06T308	ISO	32	32	44	210	128	149	60	WCM.06T308
SM16873	SDUM 33XD4 WCM.06T308	ISO	33	32	44	215	132	154	60	WCM.06T308
SM20931	SDUM 33.5XD4 WCM.06T308	ISO	33.5	32	44	219	134	158	60	WCM.06T308
SM16880	SDUM 34XD4 WCM.06T308	ISO	34	32	44	219	136	158	60	WCM.06T308
SM16897	SDUM 35XD4 WCM.06T308	ISO	35	32	44	224	140	166	60	WCM.06T308
SM16903	SDUM 36XD4 WCM.06T308	ISO	36	32	44	229	144	169	60	WCM.06T308
SM16910	SDUM 37XD4 WCM.06T308	ISO	37	32	44	234	148	172	60	WCM.06T308
SM16927	SDUM 38XD4 WCM.06T308	ISO	38	32	44	239	152	178	60	WCM.06T308
SM25394	SDUM 38.5XD4 WCM.06T308	ISO	38.5	32	44	243	154	181	60	WCM.06T308
SM16934	SDUM 39XD4 WCM.06T308	ISO	39	32	44	243	156	181	60	WCM.06T308
SM16941	SDUM 40XD4 WCM.06T308	ISO	40	32	44	248	160	188	60	WCM.06T308
SM16958	SDUM 41XD4 WCM.06T308	ISO	41	32	44	253	164	191	60	WCM.06T308
SM16965	SDUM 42XD4 WCM.06T308	ISO	42	32	44	257	168	195	60	WCM.06T308
SM16972	SDUM 43XD4 WCM.06T308	ISO	43	32	44	262	172	197	60	WCM.06T308
SM16989	SDUM 44XD4 WCM.06T308	ISO	44	32	44	266	176	200	60	WCM.06T308
SM17665	SDUM 45XD4 WCM.080412	ISO	45	40	60	272	180	202	70	WCM.080412
SM17726	SDUM 46XD4 WCM.080412	ISO	46	40	60	276	184	206	70	WCM.080412
SM17771	SDUM 47XD4 WCM.080412	ISO	47	40	60	280	188	210	70	WCM.080412
SM17818	SDUM 48XD4 WCM.080412	ISO	48	40	60	284	192	214	70	WCM.080412
SM17849	SDUM 49XD4 WCM.080412	ISO	49	40	60	288	196	218	70	WCM.080412
SM17856	SDUM 50XD4 WCM.080412	ISO	50	40	60	292	200	221	70	WCM.080412
