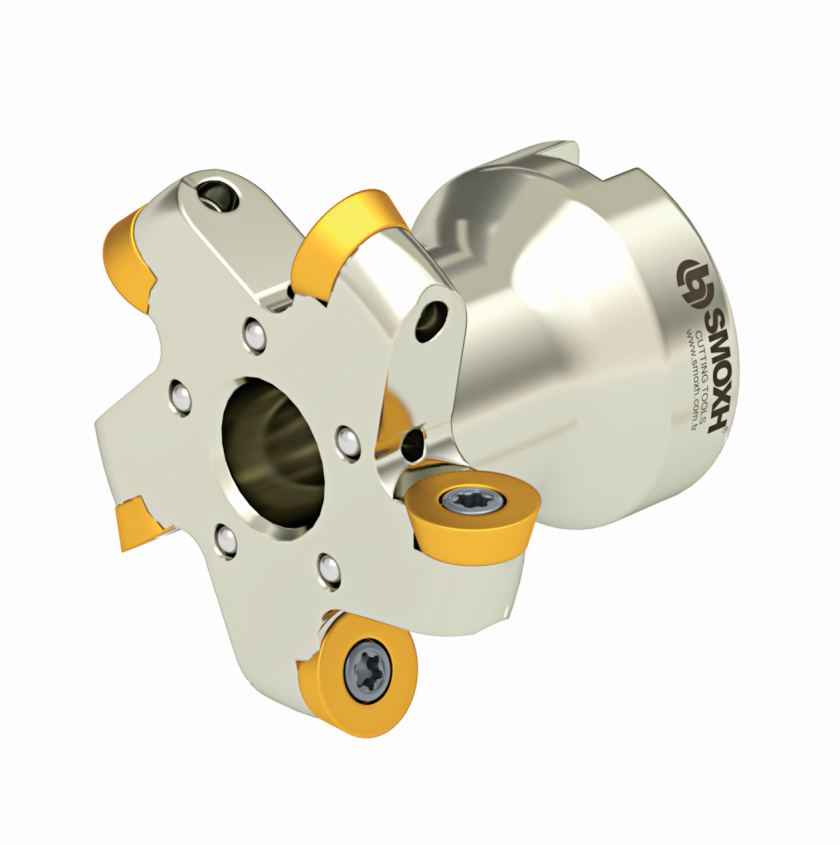

T-Slot Groove Mills

Ordering Code	Item Designation	Dimensions											Master Insert

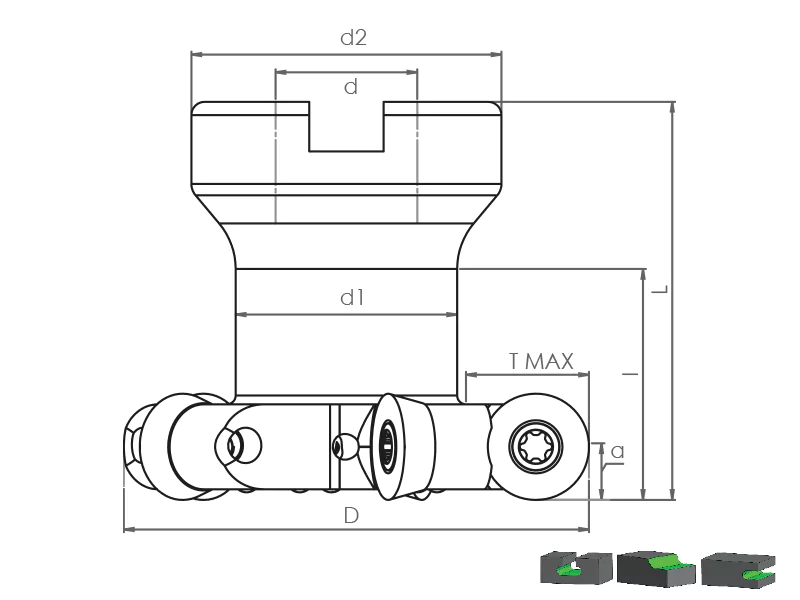

	TSF RD.. 1003.. / 12T3..	Diamond Brand	D	d	d1	d2	L	I	Z	a	T Max	Kg
SM58408	TSF RD1003 D55 A16 Z05-H	ISO	55	16	25	35	45	26	5	5	15	-	RD.. 1003..
SM58415	TSF RD1003 D65 A22 Z06-H	ISO	65	22	30	42	50	30	6	5	17.5	-	RD.. 1003..
SM58422	TSF RD1003 D80 A22 Z07-H	ISO	80	22	35	50	50	28	7	5	22.5	-	RD.. 1003..
SM58439	TSF RD1003 D100 A27 Z08-H	ISO	100	27	45	60	50	30	8	5	27.5	-	RD.. 1003..
SM54318	TSF RD12T3 D55 A16 Z05-H	ISO	55	16	25	35	45	26	5	6	15	-	RD.. 12T3..
SM54325	TSF RD12T3 D65 A22 Z06-H	ISO	65	22	30	42	50	30	6	6	17.5	-	RD.. 12T3..
SM54332	TSF RD12T3 D80 A22 Z07-H	ISO	80	22	35	50	50	28	7	6	22.5	-	RD.. 12T3..
SM54349	TSF RD12T3 D100 A27 Z08-H	ISO	100	27	45	60	50	30	8	6	27.5	-	RD.. 12T3..

T-Slot Groove Mills - TSF RD.. 1003.. / 12T3..
