T-Slot Groove Mills

Ordering Code	Item Designation	Dimensions										Master Insert

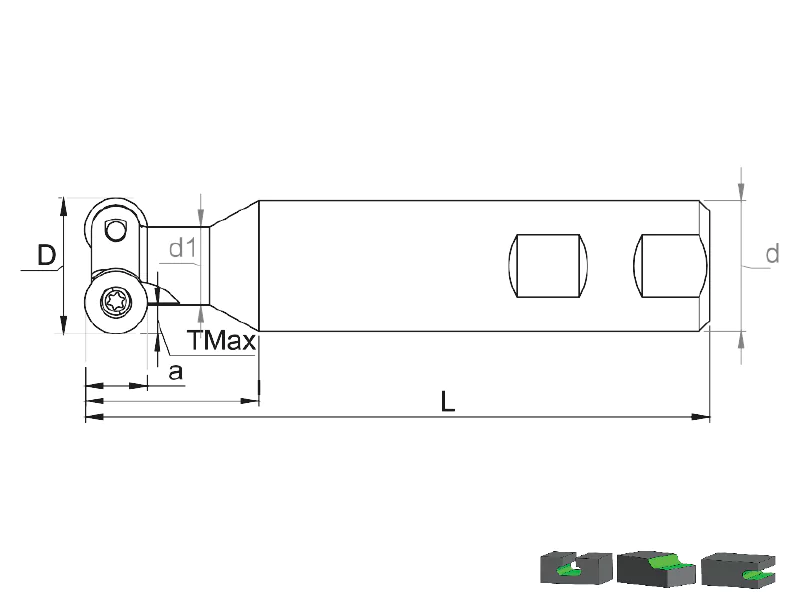

	TF RD..0702 / 1003.. / 12T3.. / 1604..	Diamond Brand	D	d	d1	L	I	Z	a	T Max	Kg
SM15159	TF RD0702 D17 W16 L120 Z02 T3.5	ISO	17	16	10	120	15	2	7	3.5	-	RD.. 0702..

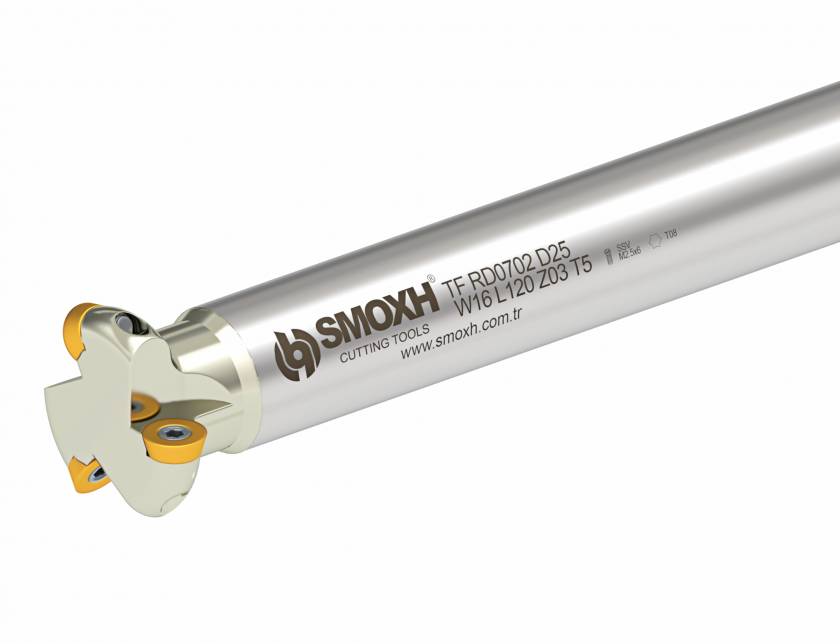

SM15166	TF RD0702 D25 W16 L120 Z03 T5	ISO	25	16	15	120	12	3	7	5	-	RD.. 0702..
SM15142	TF RD0702 D35 W25 L120 Z05 T7.5	ISO	35	25	20	120	25	5	7	7.5	-	RD.. 0702..
SM15173	TF RD1003 D21 W25 L120 Z02 T4.5	ISO	21	25	12	120	30	2	10	4.5	-	RD.. 1003..
SM15180	TF RD12T3 D26 W25 L120 Z02 T5.5	ISO	26	25	15	120	30	2	12	5.5	-	RD.. 12T3..
SM15197	TF RD1604 D34 W32 L120 Z02 T7	ISO	34	32	20	120	40	2	16	7	-	RD.. 1604..

T-Slot Groove Mills - TF RD..0702 / 1003.. / 12T3.. / 1604..
