M System External Diameter Turning Tool

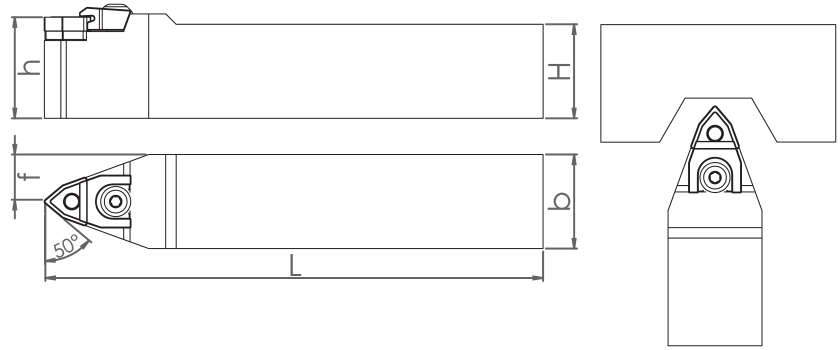

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	MWDNN (50)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM01442	MWDNN 1616 H06	ISO	50°	N	16	16	100	8	0.24	WNM.0604..	8681408001442
SM01503	MWDNN 2020 K06	ISO	50°	N	20	20	125	10	0.45	WNM.0604..	8681408001503
SM01510	MWDNN 2525 M06	ISO	50°	N	25	25	150	12.5	0.79	WNM.0604..	8681408001510
SM01541	MWDNN 2020 K08	ISO	50°	N	20	20	125	10	0.45	WNM.0804..	8681408001541

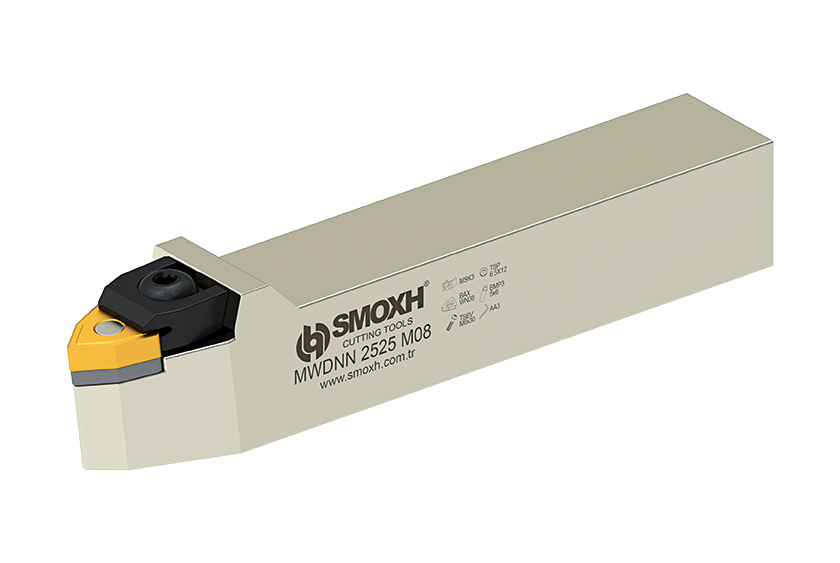

SM01565	MWDNN 2525 M08	ISO	50°	N	25	25	150	12.5	0.79	WNM.0804..	8681408001565
SM01596	MWDNN 3232 P08	ISO	50°	N	32	32	170	16	1.37	WNM.0804..	8681408001596
SM25769	MWDNN 4040 S08	ISO	50°	N	40	40	250	20	3.14	WNM.0804..	8681408025769

M System External Diameter Turning Tool - MWDNN (50)
