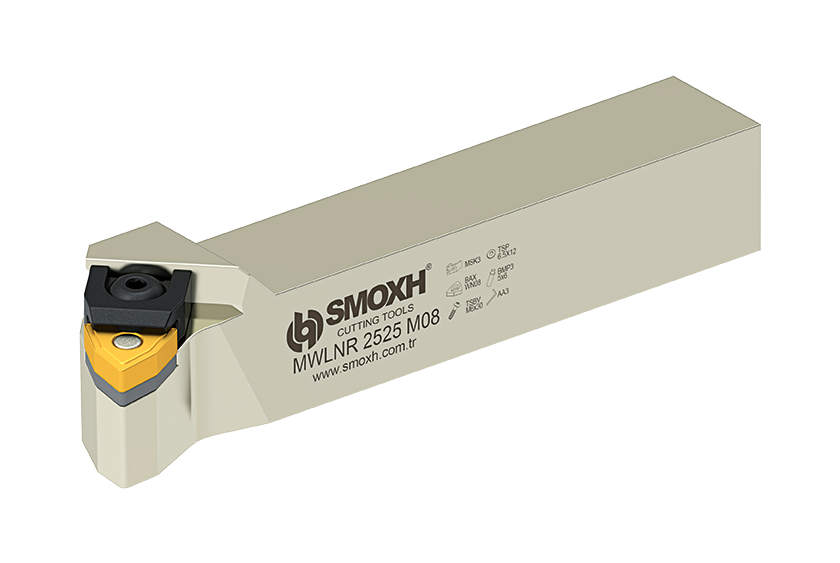

M System External Diameter Turning Tool - MWLNR/L (95)

MWLNR/L (95)

M System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

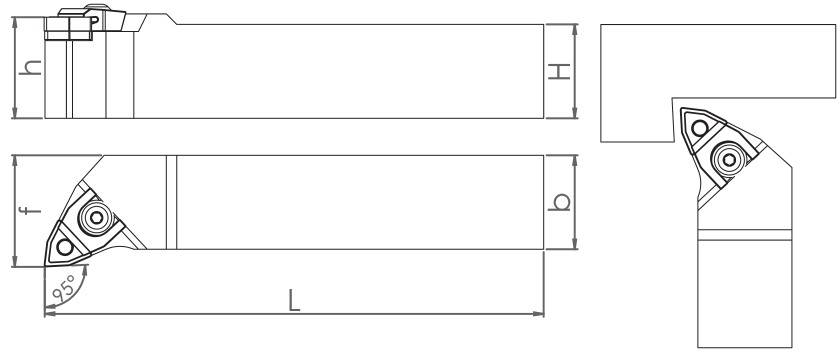

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  MWLNR/L (95) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
M System External Diameter Turning Tool
SM01428 MWLNR 1616 H06 ISO 95° R 16 16 100 20 0.24 WNM.0604.. 8681408001428
SM01435 MWLNL 1616 H06 ISO 95° L 16 16 100 20 0.24 WNM.0604.. 8681408001435
SM01459 MWLNR 2020 K06 ISO 95° R 20 20 125 26 0.45 WNM.0604.. 8681408001459
SM01466 MWLNL 2020 K06 ISO 95° L 20 20 125 26 0.45 WNM.0604.. 8681408001466
SM01473 MWLNR 2525 M06 ISO 95° R 25 25 150 32 0.79 WNM.0604.. 8681408001473
SM01480 MWLNL 2525 M06 ISO 95° L 25 25 150 32 0.79 WNM.0604.. 8681408001480
SM01534 MWLNR 2020 K08 ISO 95° R 20 20 125 26 0.45 WNM.0804.. 8681408001534
SM01497 MWLNL 2020 K08 ISO 95° L 20 20 125 26 0.45 WNM.0804.. 8681408001497
SM01558 MWLNR 2525 M08 ISO 95° R 25 25 150 32 0.79 WNM.0804.. 8681408001558
SM01572 MWLNL 2525 M08 ISO 95° L 25 25 150 32 0.79 WNM.0804.. 8681408001572
SM01602 MWLNR 3232 P08 ISO 95° R 32 32 170 38 1.37 WNM.0804.. 8681408001602
SM01589 MWLNL 3232 P08 ISO 95° L 32 32 170 38 1.37 WNM.0804.. 8681408001589
SM01527 MWLNR 4040 S08 ISO 95° R 40 40 250 47 3.14 WNM.0804.. 8681408001527
SM25776 MWLNL 4040 S08 ISO 95° L 40 40 250 47 3.14 WNM.0804.. 8681408025776
