Smoxh Cutting Tools

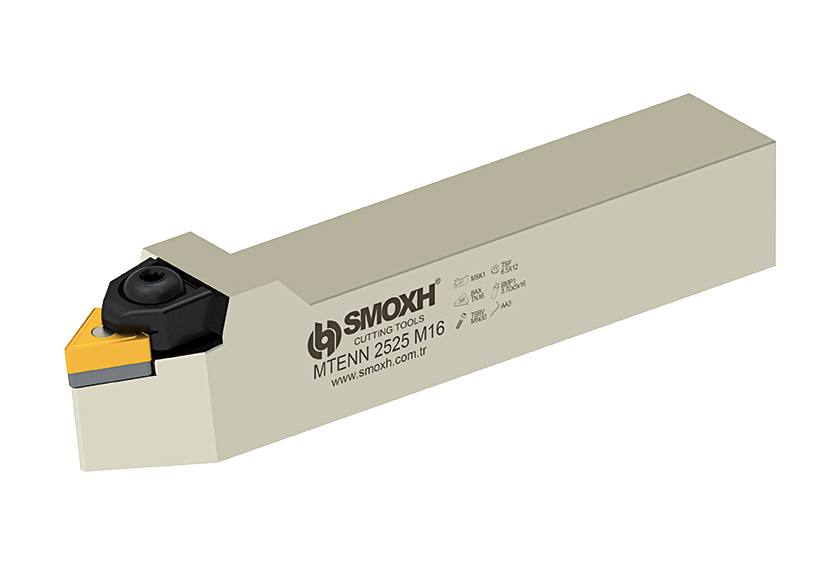

M System External Diameter Turning Tool - MTENN (60)

MTENN (60)

M System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  MTENN (60) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
M System External Diameter Turning Tool
SM01251 MTENN 2020 K16 ISO 60° N 20 20 125 10 0.45 TNM.1604.. 8681408001251
SM01299 MTENN 2525 M16 ISO 60° N 25 25 150 12.5 0.79 TNM.1604.. 8681408001299
SM01244 MTENN 3232 P16 ISO 60° N 32 32 170 16 1.37 TNM.1604.. 8681408001244
SM01367 MTENN 2525 M22 ISO 60° N 25 25 150 12.5 0.79 TNM.2204.. 8681408001367
SM01411 MTENN 3232 P22 ISO 60° N 32 32 170 16 1.37 TNM.2204.. 8681408001411
SM01343 MTENN 4040 S22 ISO 60° N 40 40 250 20 3.14 TNM.2204.. 8681408001343
