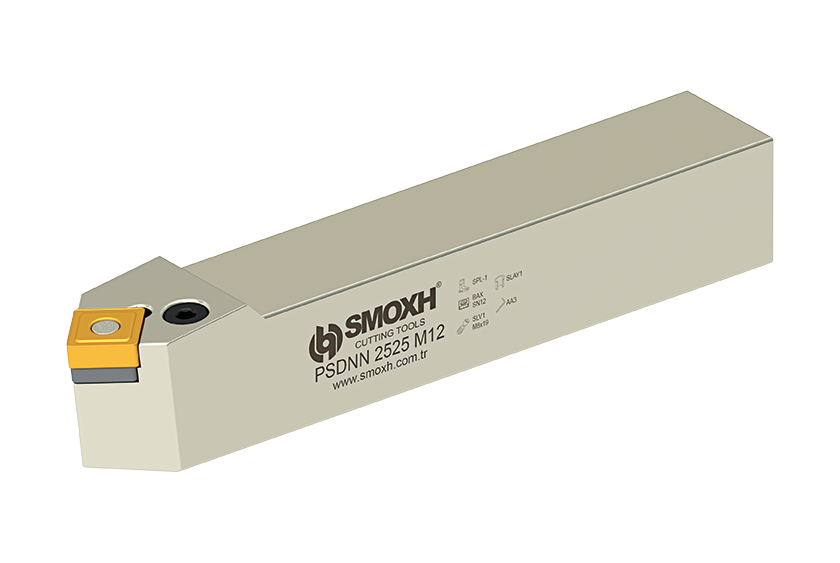

P System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

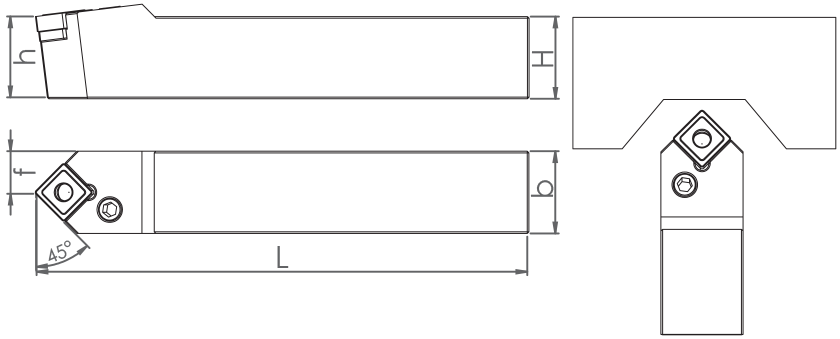

	PSDNN (45)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM01879	PSDNN 2020 K12	ISO	45°	N	20	20	125	10	0.43	SNM.1204..	8681408001879
SM01909	PSDNN 2525 M12	ISO	45°	N	25	25	150	12.5	0.79	SNM.1204..	8681408001909
SM01930	PSDNN 3232 P12	ISO	45°	N	32	32	170	16	1.33	SNM.1204..	8681408001930
SM01947	PSDNN 2525 M15	ISO	45°	N	25	25	150	12.5	0.79	SNM.1506..	8681408001947
SM01978	PSDNN 3232 P15	ISO	45°	N	32	32	170	16	1.33	SNM.1506..	8681408001978
SM34174	PSDNN 3232 P19	ISO	45°	N	32	32	170	16	1.33	SNM.1906..	8681408034174
SM34181	PSDNN 4040 S19	ISO	45°	N	40	40	250	20	3	SNM.1906..	8681408034181

P System External Diameter Turning Tool - PSDNN (45)
