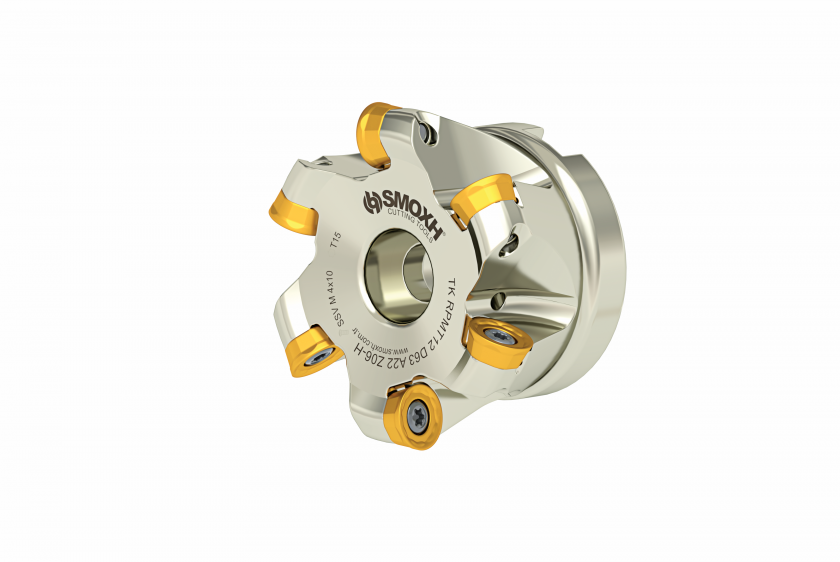

Shaving Heads - TK RPMT 10T3.. / 1204.. / 1605..

TK RPMT 10T3.. / 1204.. / 1605..

Shaving Heads

Product Description

Advantages of Face Milling Heads

High Material Removal Capacity

Large cutting diameters allow rapid removal of material from wide surfaces—reducing machining

time and increasing productivity.

Superior Surface Finish

Optimal cutter placement and effective lead angles deliver smooth surface finishes, minimizing the

need for secondary operations such as grinding.

Replaceable Insert System

Indexable inserts are easy to replace, extending tool life and reducing downtime.

Offers flexible use with insert options tailored to various materials.

Stable and Vibration-Free Machining

Rigid and heavy-duty construction minimizes vibration during operation, improving tool and machine

lifespan while enhancing surface accuracy.

Wide Material Compatibility

Performs reliably on cast iron, alloy steel, stainless steel, aluminum, and more.

Suitable for a wide range of industries with the right cutting parameters.

Modular Design & Flexibility

Different body and insert combinations can be configured based on tool diameter and workpiece size.

Enables cost-efficiency by using the same head with various insert types.

Industrial Compatibility & Automation Ready

Fully compatible with CNC machining centers and adaptable to automatic tool change systems for

seamless integration into automated production lines.

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TK RPMT 10T3.. / 1204.. / 1605.. Shaving Heads Diamond
Brand

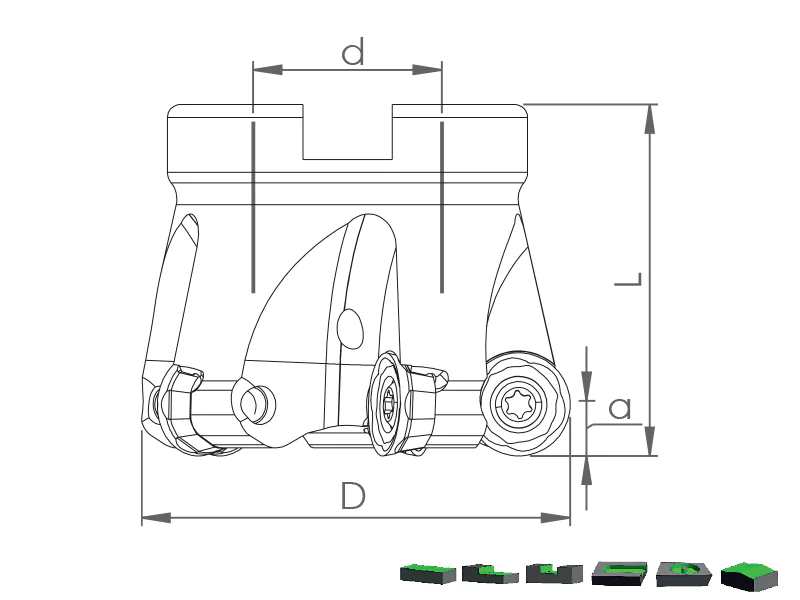

D Z d L a Shaving Heads
SM46603 TK RPMT10 D40 A16 Z04-H KYCR 40 4 16 40 5 RPMT 10T3.. 8681408046603
SM46610 TK RPMT10 D50 A22 Z05-H KYCR 50 5 22 40 5 RPMT 10T3.. 8681408046610
SM46627 TK RPMT10 D63 A22 Z06-H KYCR 63 6 22 40 5 RPMT 10T3.. 8681408046627
SM46559 TK RPMT12 D40 A16 Z04-H KYCR 40 4 16 40 6 RPMT 1204.. 8681408046559
SM46566 TK RPMT12 D50 A22 Z05-H KYCR 50 5 22 40 6 RPMT 1204.. 8681408046566
SM46573 TK RPMT12 D52 A22 Z05-H KYCR 52 5 22 40 6 RPMT 1204.. 8681408046573
SM46580 TK RPMT12 D63 A22 Z06-H KYCR 63 6 22 40 6 RPMT 1204.. 8681408046580
SM46597 TK RPMT12 D80 A27 Z07-H KYCR 80 7 27 50 6 RPMT 1204.. 8681408046597
SM54110 TK RPMT16 D63 A22 Z04-H KYCR 63 4 22 40 8 RPMT 1605.. 8681408054110
SM54127 TK RPMT16 D80 A27 Z05-H KYCR 80 5 27 50 8 RPMT 1605.. 8681408054127
SM54134 TK RPMT16 D100 A32 Z06-H KYCR 100 6 32 50 8 RPMT 1605.. 8681408054134
SM54141 TK RPMT16 D125 B40 Z07 KYCR 125 7 40 63 8 RPMT 1605.. 8681408054141
