Modular Milling Tools

Ordering Code	Item Designation										Master Insert	Barcode

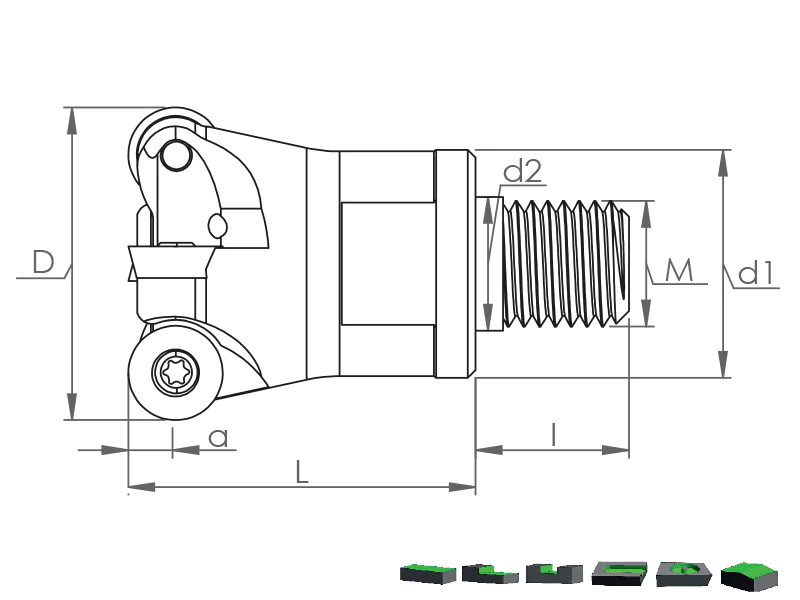

	MT RD.. 10T3.. / 1204..	Diamond Brand	D	Z	d1	d2	L	I	M	a
SM54486	MT RD10T3 D20 M10 L30 Z02-H	ISO	20	2	18	10.5	30	19	10	5	RD.. 10T3..	8681408054486
SM54493	MT RD10T3 D25 M12 L35 Z02-H	ISO	25	2	21	12.5	35	23	12	5	RD.. 10T3..	8681408054493
SM54509	MT RD10T3 D32 M16 L43 Z03-H	ISO	32	3	29	17	43	23	16	5	RD.. 10T3..	8681408054509
SM52819	MT RD1204 D32 M16 L43 Z03-H	ISO	32	3	29	17	43	23	16	6	RD.. 1204..	8681408052819
SM54516	MT RD1204 D35 M16 L43 Z03-H	ISO	35	3	29	17	43	23	16	6	RD.. 1204..	8681408054516
SM54523	MT RD1204 D40 M16 L43 Z04-H	ISO	40	4	29	17	43	23	16	6	RD.. 1204..	8681408054523
SM52826	MT RD1204 D42 M16 L43 Z04-H	ISO	42	4	29	17	43	23	16	6	RD.. 1204..	8681408052826

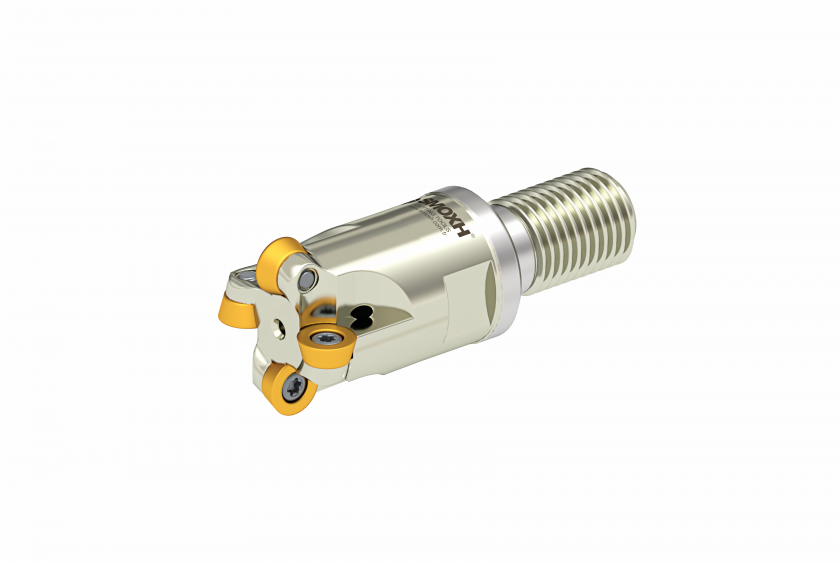

Modular Milling Tools - MT RD.. 10T3.. / 1204..
