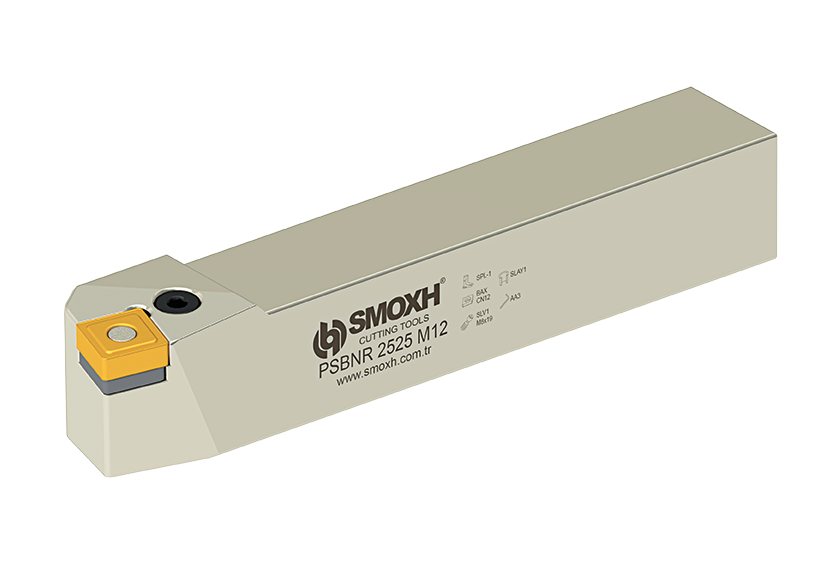

P System External Diameter Turning Tool - PSBNR/L (75)

PSBNR/L (75)

P System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

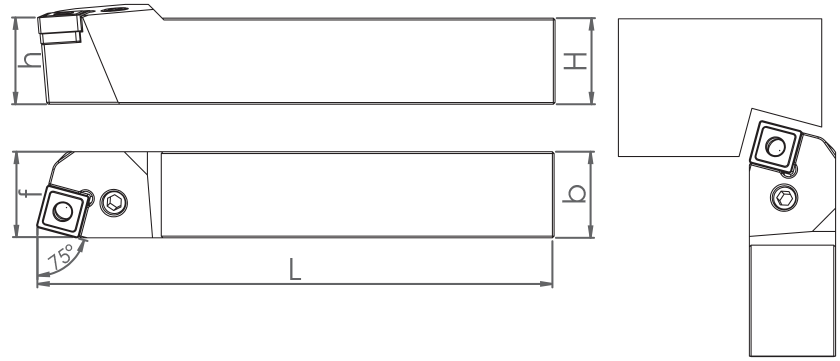

Ordering Code Item Designation Dimensions Master Insert Barcode
  PSBNR/L (75) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
P System External Diameter Turning Tool
SM34303 PSBNR 2020 K12 ISO 75° R 20 20 125 17 0.43 SNM.1204.. 8681408034303
SM34310 PSBNL 2020 K12 ISO 75° L 20 20 125 17 0.43 SNM.1204.. 8681408034310
SM22423 PSBNR 2525 M12 ISO 75° R 25 25 150 23 0.79 SNM.1204.. 8681408022423
SM22430 PSBNL 2525 M12 ISO 75° L 25 25 150 23 0.79 SNM.1204.. 8681408022430
SM25882 PSBNR 3232 P12 ISO 75° R 32 32 170 29 1.33 SNM.1204.. 8681408025882
SM25875 PSBNL 3232 P12 ISO 75° L 32 32 170 29 1.33 SNM.1204.. 8681408025875
SM34327 PSBNR 2525 M15 ISO 75° R 25 25 150 22 0.79 SNM.1506.. 8681408034327
SM34334 PSBNL 2525 M15 ISO 75° L 25 25 150 22 0.79 SNM.1506.. 8681408034334
SM34341 PSBNR 3232 P15 ISO 75° R 32 32 170 28 1.33 SNM.1506.. 8681408034341
SM34358 PSBNL 3232 P15 ISO 75° L 32 32 170 28 1.33 SNM.1506.. 8681408034358
SM34365 PSBNR 3232 P19 ISO 75° R 32 32 170 28.5 1.33 SNM.1906.. 8681408034365
SM34372 PSBNL 3232 P19 ISO 75° L 32 32 170 28.5 1.33 SNM.1906.. 8681408034372
SM34396 PSBNR 4040 S19 ISO 75° R 40 40 250 36.5 3 SNM.1906.. 8681408034396
SM34389 PSBNL 4040 S19 ISO 75° L 40 40 250 36.5 3 SNM.1906.. 8681408034389
